KINGBRIGHT KP3216F3C Infrared LED

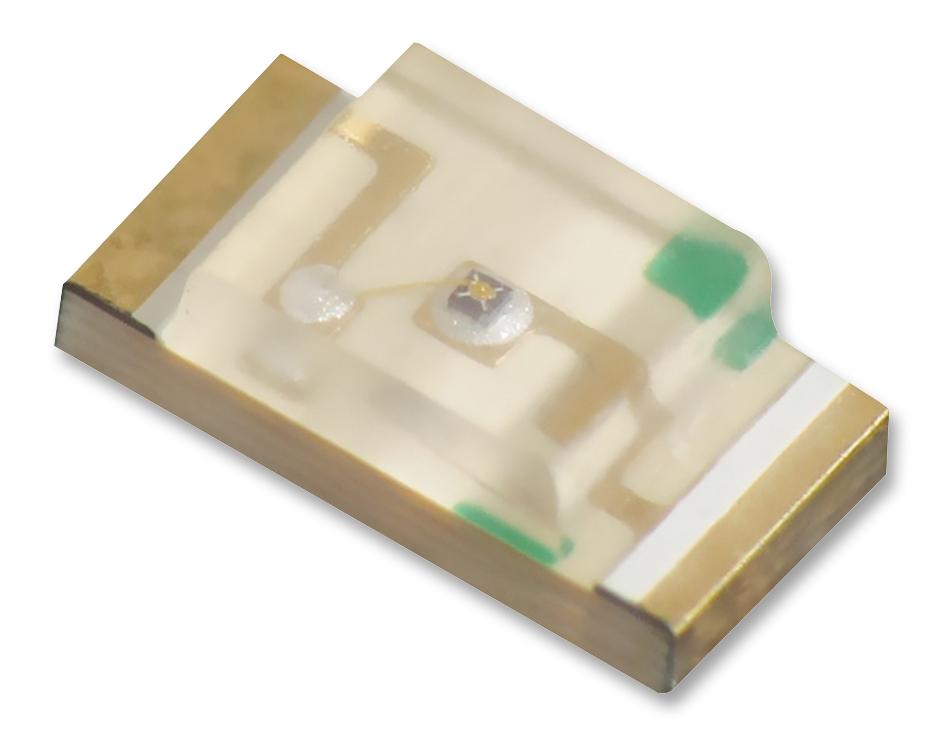

The KP-3216F3C infrared emitting diode features a water-clear lens made from gallium arsenide, with a 3.2mm x 1.6mm SMT package and 1.8mm thickness. It emits infrared light at a peak wavelength of 940 nm and has a wide viewing angle of 120°. Designed for optical sensing and phototransistor coupling, it operates within a temperature range of -40°C to +85°C, with a maximum forward current of 50 mA and peak forward voltage of 1.6V. RoHS compliant and suitable for various industrial optical applications.
KINGBRIGHT KP3216F3C Infrared LED Specifications:
- Dimensions: 3.2mm x 1.6mm x 1.8mm thickness
- Peak Wavelength: 940 nm
- Forward Voltage: 1.2V typical, 1.6V max at 20mA
- Reverse Current: 10 μA at 5V
- Capacitance: 90 pF at 0V, 1 MHz
- Maximum Power Dissipation: 80 mW
- DC Forward Current: 50 mA
- Peak Forward Current: 12 A (10 μs pulse)
- Operating Temp Range: -40°C to +85°C
- Storage Temp Range: -40°C to +85°C
- Viewing Angle: 120°
- RoHS compliant
- Reflow soldering recommended, profile between 245°C +/-5°C, limit to 260°C
- Package: 2000pcs per reel
Buy the Kingbright KP-3216F3C – Reliable Infrared Emitting Diode for Industrial Applications
Purchase the Kingbright KP-3216F3C infrared LED online now and ensure your projects benefit from high-quality, reliable infrared light sources. Its wide viewing angle and GaAs construction make it ideal for optical sensors and signal transmission. With RoHS compliance, it meets industry standards for safety and environmental responsibility. Easy to integrate with recommended reflow soldering profiles, it guarantees consistent performance in demanding applications. Secure your supply today and experience dependable, long-lasting infrared emission for your industrial, automation, or sensing needs.
Order your Kingbright KP-3216F3C infrared LED today and enhance your optical sensing projects with premium quality and dependable performance.
Frequently Asked Questions
Where can I buy KINGBRIGHT KP3216F3C?
You can click on the BUY or RFQ button to purchase KP3216F3C from an authorized KINGBRIGHT distributor.
How do I troubleshoot issues or seek technical support for part KP3216F3C?
You can download the KP3216F3C datasheet or visit the KINGBRIGHT website for support.
Who is the manufacturer of KP3216F3C?
KINGBRIGHT
