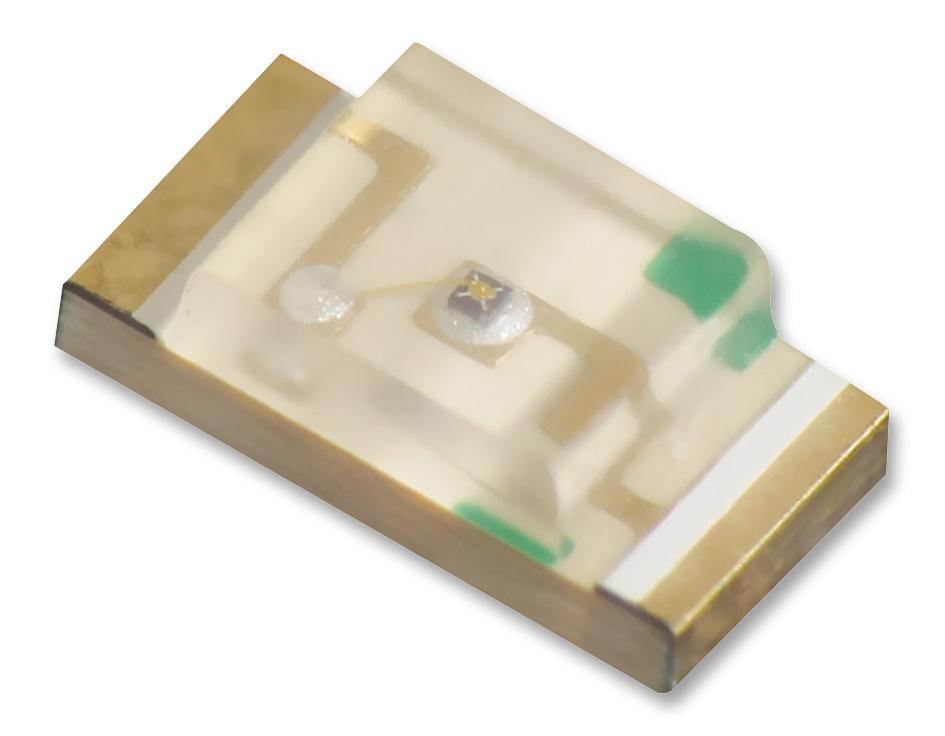

KINGBRIGHT KP3216P3C Phototransistor Chip
The KP-3216P3C is an NPN silicon phototransistor chip designed for compatibility with infrared LEDs. It measures 3.2mm x 1.6mm with a thickness of 1.1mm, making it suitable for LED lighting and optical sensing in industrial and electronic applications. The device features excellent spectral matching to IR LEDs, ensuring optimal performance. It operates within a temperature range of -40°C to +85°C, with a maximum collector-to-emitter voltage of 30V and a collector dark current of 100A. Reflow soldering at 245°C is recommended for assembly, with a maximum of two reflow cycles to prevent damage. The package includes 2000 pieces per reel, and the product meets RoHS standards for environmental compliance.
KINGBRIGHT KP3216P3C Phototransistor Chip Specifications:
- Dimensions: 3.2mm x 1.6mm, thickness 1.1mm
- Maximum collector-to-emitter voltage: 30V
- Emitter-to-collector breakdown voltage: 5V
- Collector dark current: 100A at 10V
- Operating temperature range: -40°C to +85°C
- Power dissipation: 100mW at 25°C
- Reflow soldering temperature: 245°C (+/-5°C), max 2 reflow cycles
- Package: 2000 pcs per reel
- RoHS compliant
- Spectral sensitivity peaks around 940nm
Buy the Kingbright KP-3216P3C – Reliable Phototransistor for Industrial Applications
Enhance your industrial sensing or LED lighting projects with the Kingbright KP-3216P3C phototransistor chip. Designed with an NPN silicon structure, it offers spectral matching to IR LEDs, ensuring excellent detection performance. Compact dimensions of 3.2mm x 1.6mm with a 1.1mm thickness make it suitable for space-constrained applications. The device is RoHS compliant, operates within -40°C to +85°C, and features a maximum collector-to-emitter voltage of 30V. Purchase online now for reliable operation and easy integration into your manufacturing processes.
Get Kingbright KP-3216P3C today—built for precision and high optical sensitivity in industrial sensing and LED illumination projects.
Frequently Asked Questions
Where can I buy KINGBRIGHT KP3216P3C?
You can click on the BUY or RFQ button to purchase KP3216P3C from an authorized KINGBRIGHT distributor.
How do I troubleshoot issues or seek technical support for part KP3216P3C?
You can download the KP3216P3C datasheet or visit the KINGBRIGHT website for support.
Who is the manufacturer of KP3216P3C?
KINGBRIGHT
