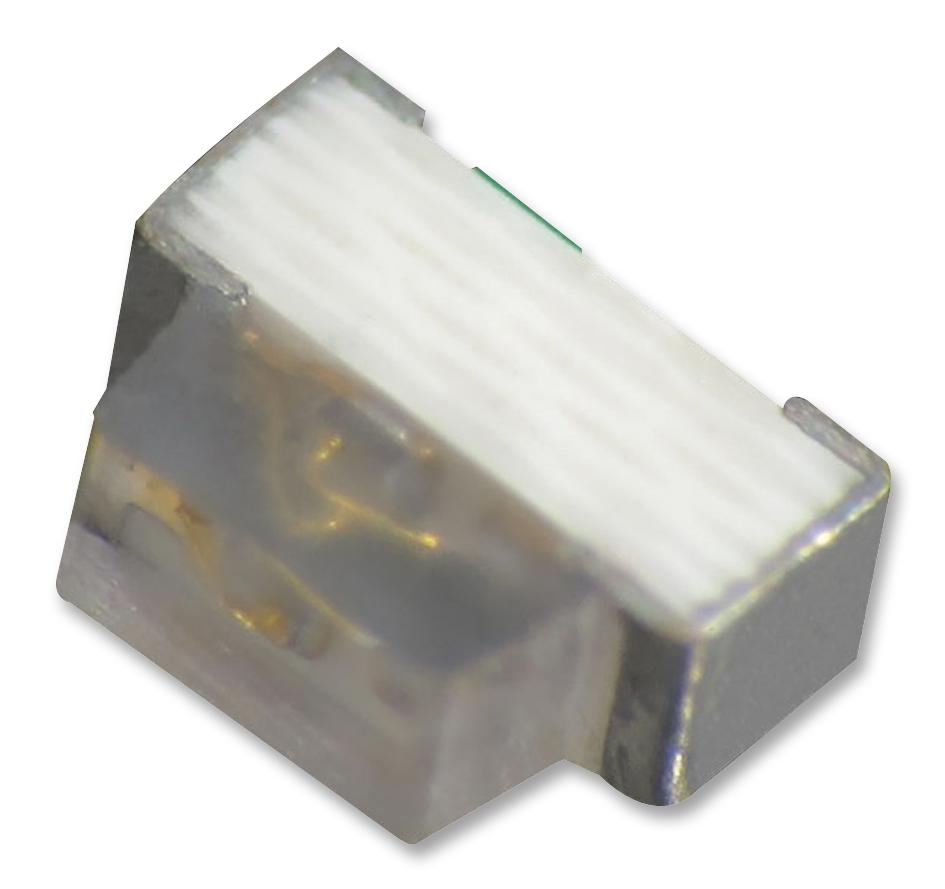

KINGBRIGHT KPA1606CGCK Green SMD LED
The KPA-1606CGCK is a green right-angle SMD chip LED featuring a water-clear rectangular lens with a 110° viewing angle and a luminous intensity of 50mcd at a wavelength of 570nm. Made with AlGaInP on GaAs substrate, this LED is suitable for backlighting and indicator applications. It has a compact thickness of 1.2mm and offers low power consumption. The device is RoHS compliant, with tinned pads for improved solderability, and is designed for reliable surface mount technology with a wide viewing angle and a water-clear lens for high visibility.
KINGBRIGHT KPA1606CGCK Green SMD LED Specifications:
- Dimensions: 1.6mm x 0.6mm x 1.2mm thickness
- Lens Type: Water clear rectangular
- Viewing Angle: 110°
- Wavelength: 570 nm
- Luminous Intensity: 50 mcd
- Peak Wavelength: 574 nm
- Forward Voltage: 24-25 V at 20mA
- Reverse Current: 10 uA at 5V
- Peak Forward Current: 150 mA
- DC Forward Current: 30 mA
- Power Dissipation: 75 mW
- Operating Temperature: -40°C to +85°C
- Storage Temperature: -40°C to +85°C
- RoHS compliant, moisture sensitivity level 3, tinned pads for soldering
- Package: 2000 pcs per reel
- Reflow soldering temperature: 245°C (+/- 5°C), max 260°C, with recommended profile
- Package Dimensions: Reel dimension 12mm width, tape width 8mm
- Certification: RoHS, compliant with environmental standards
Buy the Kingbright KPA-1606CGCK – Reliable Green SMD LED for Industrial Applications
Order the Kingbright KPA-1606CGCK green SMD LED online today and enjoy fast delivery, exceptional quality, and reliable illumination. Perfect for indicator lights and backlight applications with a compact size and wide viewing angle. This RoHS-compliant water-clear LED features low power consumption, easy surface mounting, and high luminous intensity, ensuring clear visibility. Whether for industrial, automotive, or electronic projects, purchasing this high-quality LED online guarantees you consistent performance, durability, and compliance with environmental standards, simplifying your assembly process and enhancing your product’s reliability.
Buy Kingbright KPA-1606CGCK now and experience unmatched reliability and performance for indicator and backlighting needs.
Frequently Asked Questions
Where can I buy KINGBRIGHT KPA1606CGCK?
You can click on the BUY or RFQ button to purchase KPA1606CGCK from an authorized KINGBRIGHT distributor.
How do I troubleshoot issues or seek technical support for part KPA1606CGCK?
You can download the KPA1606CGCK datasheet or visit the KINGBRIGHT website for support.
Who is the manufacturer of KPA1606CGCK?
KINGBRIGHT
