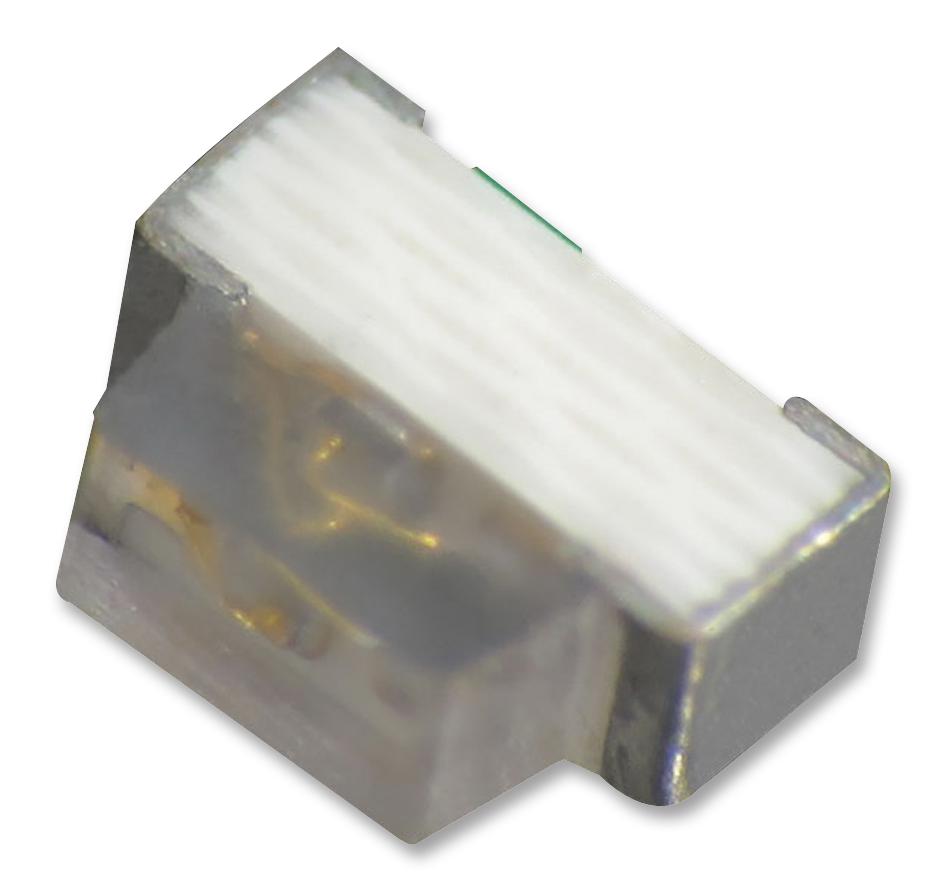

KINGBRIGHT KPA1606SECK LED lamp
The KPA-1606SECK is a compact 1.6 x 0.6 mm right-angle surface-mount LED lamp emitting super bright orange light with a water-clear lens. Made with AlGaInP on a GaAs substrate, it offers low power consumption, a wide 110° viewing angle, and high durability. Ideal for backlighting and indicator use in various electronic devices, this RoHS-compliant LED features tinned pads for easy soldering, complies with industry standards, and comes packaged in reels of 2000 pieces. Its reliable performance makes it suitable for diverse applications requiring bright, efficient lighting.
KINGBRIGHT KPA1606SECK LED lamp Specifications:
- Dimensions: 1.6 mm x 0.6 mm x 1.2 mm thickness
- Wavelength: 610 nm
- Dominant Wavelength: 601 nm
- Spectral Line Half-width: 29 nm
- Peak Intensity: 110° viewing angle
- Forward Voltage: 2.4 - 2.5 V at 20mA
- Peak Forward Current: 195 mA
- DC Forward Current: 30 mA
- Reverse Voltage: 5 V
- Power Dissipation: 75 mW
- Operating Temperature: -40°C to +85°C
- Storage Temperature: -40°C to +85°C
- Moisture Sensitivity Level: 3
- Package: 2000 pieces per reel
- Material: AlGaInP on GaAs substrate
- Lens Type: Water-clear
- Viewing Angle: 110°
- RoHS Compliant
Buy the Buy Kingbright LED Part Number KPA-1606SECK Online
Secure your supply of the high-quality LED lamp KPA-1606SECK online today. Designed with a super bright orange emission, this 1.6 x 0.6 mm right-angle surface-mount LED offers excellent visibility and energy efficiency. Made from AlGaInP on GaAs substrate, it provides low power consumption and a broad 110° viewing angle. Perfect for backlight and indicator uses, it features RoHS compliance, easy solderability with tinned pads, and comes in convenient reels of 2000 pieces. Ensure reliable performance in your electronic projects with this versatile LED.
Buy Kingbright KPA-1606SECK now and experience unmatched reliability and high brightness for indicator and backlight applications.
Frequently Asked Questions
Where can I buy KINGBRIGHT KPA1606SECK?
You can click on the BUY or RFQ button to purchase KPA1606SECK from an authorized KINGBRIGHT distributor.
How do I troubleshoot issues or seek technical support for part KPA1606SECK?
You can download the KPA1606SECK datasheet or visit the KINGBRIGHT website for support.
Who is the manufacturer of KPA1606SECK?
KINGBRIGHT
