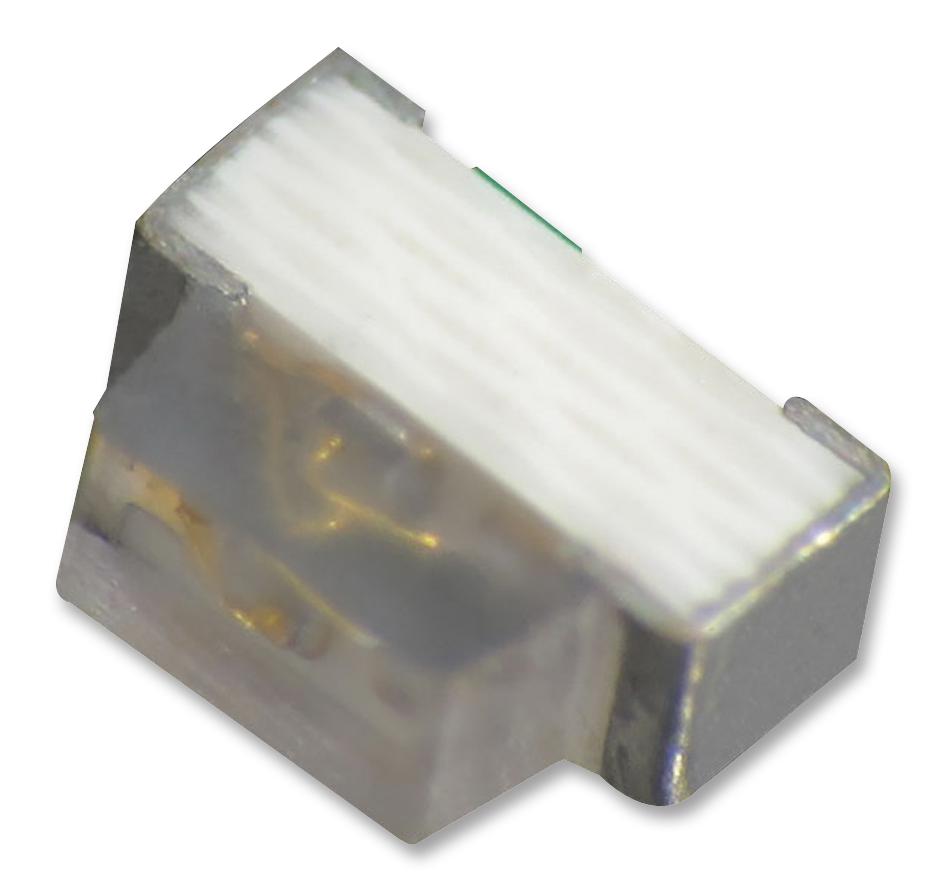

KINGBRIGHT KPA1606SURCK miniature LED
The KPA-1606SURCK is a compact 1.6 x 0.6 mm right-angle SMD chip LED with a water-clear lens, ideal for backlighting and indicators. Made with AlGaInP on GaAs substrate, it emits bright hyper red light while consuming minimal power. It offers a wide 110° viewing angle, tinned pads for solderability, and RoHS compliance. Suitable for industrial lighting, signaling, and display applications, this LED provides reliable performance in space-constrained environments. Its low power, high brightness, and versatile lens options make it an excellent choice for various electronics projects requiring efficient illumination.
KINGBRIGHT KPA1606SURCK miniature LED Specifications:
- Dimension: 1.6 x 0.6 mm, Thickness: 1.2 mm
- Lens Type: Water Clear
- Viewing Angle: 110°
- Peak Wavelength: 650 nm
- Dominant Wavelength: 630 nm
- Spectral Line Half-width: 28 nm
- Capacitance: 35 pF
- Forward Voltage: 1.95 V at 20mA
- Reverse Current: 10 µA at 5V
- Power Dissipation: 75 mW
- DC Forward Current: 30 mA
- Peak Forward Current: 185 mA
- Reverse Voltage: 5 V
- Operating Temperature: -40°C to +85°C
- Storage Temperature: -40°C to +85°C
- RoHS compliant
- Moisture Sensitivity Level: 3
- Package: 2000 pcs per reel
Buy the Kingbright KPA-1606SURCK – Reliable Hyper Red LED for Industrial Applications
Enhance your electronic projects with the Kingbright KPA-1606SURCK miniature hyper red LED. This compact, 1.6 x 0.6 mm right-angle SMD component provides high brightness at just 1.95V forward voltage. Designed for backlighting, indicators, and signaling, it features a wide 110° viewing angle and RoHS compliance. The water-clear lens ensures optimal light emission. Easy to solder thanks to tinned pads, this LED offers reliable performance in space-constrained environments. Ideal for industrial, commercial, and consumer electronics that demand efficient illumination and long-lasting operation.
Buy Kingbright KPA-1606SURCK now and experience unmatched reliability and high brightness for efficient industrial lighting and signaling.
Frequently Asked Questions
Where can I buy KINGBRIGHT KPA1606SURCK?
You can click on the BUY or RFQ button to purchase KPA1606SURCK from an authorized KINGBRIGHT distributor.
How do I troubleshoot issues or seek technical support for part KPA1606SURCK?
You can download the KPA1606SURCK datasheet or visit the KINGBRIGHT website for support.
Who is the manufacturer of KPA1606SURCK?
KINGBRIGHT
