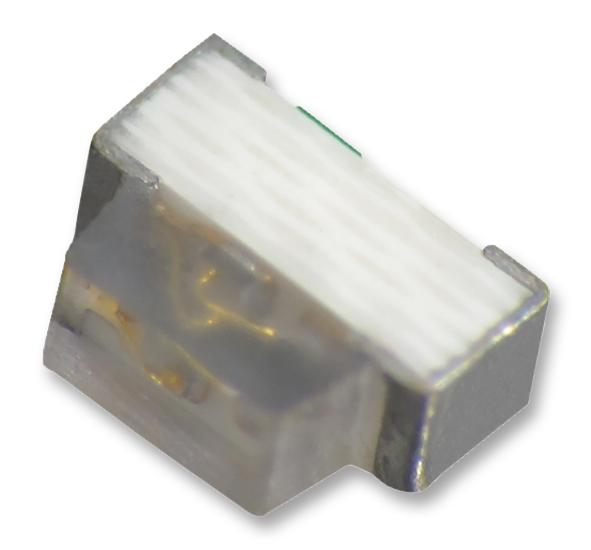

KINGBRIGHT KPA1606ZGCK green right-angle LED
The KPA-1606ZGCK is a compact green right-angle SMD chip LED measuring 1.6 x 0.6 mm with a water-clear lens, made with InGaN on sapphire. It offers low power consumption and a wide viewing angle of 110°, making it ideal for backlighting and indicator applications. The device features tinned pads for enhanced solderability and complies with RoHS standards. Suitable for industrial, signaling, and LED lighting projects, it boasts a maximum forward voltage of 3.3V at 20mA and a peak wavelength of 515nm. Its rugged design ensures reliable performance in diverse environments.
KINGBRIGHT KPA1606ZGCK green right-angle LED Specifications:
- Size: 1.6 mm x 0.6 mm x 1.2 mm thickness
- Color: Green (InGaN)
- Lens Type: Water Clear
- Viewing Angle: 110°
- Peak Wavelength: 515 nm
- Dominant Wavelength: 525 nm
- Spectral Line Half-width: 35 nm
- Forward Voltage: 3.3V at 20mA
- Reverse Current: 50 μA at 5V
- Power Dissipation: 102.5 mW
- Peak Forward Current: 150 mA
- DC Forward Current: 25 mA
- Operating Temperature Range: -40°C to +85°C
- Storage Temperature Range: -40°C to +85°C
- Soldering Method: Reflow recommended, profile at 245°C (+/-5°C), max 260°C
- Package: 2000 pcs/reel
- RoHS compliant
- Material: InGaN on sapphire
- Tinned pads for improved solderability
Buy the Kingbright Series KPA-1606ZGCK Green LED: 1.6x0.6 mm Right Angle SMD
Discover the high-quality Kingbright Series KPA-1606ZGCK green right-angle LED, perfect for backlighting and indicator applications. Its compact size, water-clear lens, and wide 110° viewing angle provide excellent visibility and performance. Made with durable InGaN on sapphire, it features low power consumption and RoHS compliance, ensuring environmentally friendly operation. Ideal for industrial, signaling, and lighting projects, this LED offers easy solderability with tinned pads. Purchase online today to access reliable LEDs for your manufacturing or repair needs, with quick delivery and exceptional quality.
Order your Kingbright Series KPA-1606ZGCK green right-angle SMD LED today and enhance your projects with reliable, efficient illumination solutions.
Frequently Asked Questions
Where can I buy KINGBRIGHT KPA1606ZGCK?
You can click on the BUY or RFQ button to purchase KPA1606ZGCK from an authorized KINGBRIGHT distributor.
How do I troubleshoot issues or seek technical support for part KPA1606ZGCK?
You can download the KPA1606ZGCK datasheet or visit the KINGBRIGHT website for support.
Who is the manufacturer of KPA1606ZGCK?
KINGBRIGHT
