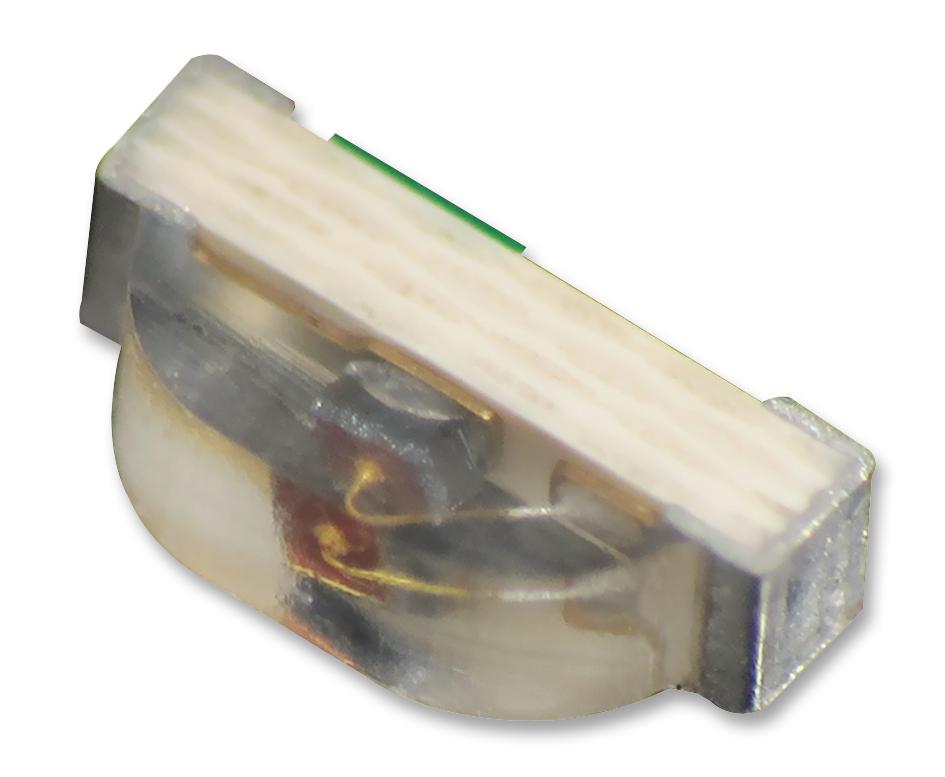

KINGBRIGHT KPA2106CGCK Right-Angle LED
The KPA-2106CGCK is a compact 2.1mm by 0.6mm right-angle SMT LED with a water-clear lens, emitting bright green light with a wavelength of approximately 574 nm at 20mA. Crafted with AlGaInP on GaAs, it offers low power consumption, a wide 120° viewing angle, and high reliability for backlighting, indicators, and electronic signaling applications. It features tinned pads for improved solderability, RoHS compliance, and a moisture sensitivity level of 3. Designed for ease of assembly, this LED is suitable for various industrial uses demanding high brightness and durability.
KINGBRIGHT KPA2106CGCK Right-Angle LED Specifications:
- Dimensions: 2.1mm x 0.6mm x 1.0mm thickness
- Wavelength: 574 nm at 20mA
- Viewing Angle: 120°
- Forward Voltage: 2.4V to 2.5V at 20mA
- Peak Wavelength: 574 nm
- Spectral Line Half-width: 20 nm
- Capacitance: 15 pF
- Reverse Current: 10 μA at 5V
- Maximum Power Dissipation: 75 mW
- DC Forward Current: 30 mA
- Peak Forward Current: 150 mA
- Operating Temperature: -40°C to +85°C
- Storage Temperature: -40°C to +85°C
- Moisture Sensitivity Level: 3
- Package: 2000 pcs per reel
- Soldering Profile: Reflow temperature around 245°C, maximum 260°C; can be reflowed up to 2 times
- RoHS compliant, Water-clear lens, Tinned pads for soldering
Buy the Kingbright KPA-2106CGCK – Reliable Green Surface-Mount LED for Industrial Applications
Purchase the Kingbright KPA-2106CGCK right-angle green surface-mount LED online today to enhance your electronic designs. With its compact size of 2.1mm by 0.6mm, water-clear lens, and broad 120° viewing angle, this LED delivers bright green illumination suitable for backlighting and indicators. Designed with low power consumption and RoHS compliance, it offers excellent solderability with tinned pads. Ideal for industrial, signaling, and electronic applications, ensuring reliable performance and simple reflow soldering process, all available with quick online ordering for timely project integration.
Order your Kingbright series KPA-2106CGCK green LED today and ensure high-quality backlighting and indicator performance in your projects.
Frequently Asked Questions
Where can I buy KINGBRIGHT KPA2106CGCK?
You can click on the BUY or RFQ button to purchase KPA2106CGCK from an authorized KINGBRIGHT distributor.
How do I troubleshoot issues or seek technical support for part KPA2106CGCK?
You can download the KPA2106CGCK datasheet or visit the KINGBRIGHT website for support.
Who is the manufacturer of KPA2106CGCK?
KINGBRIGHT
