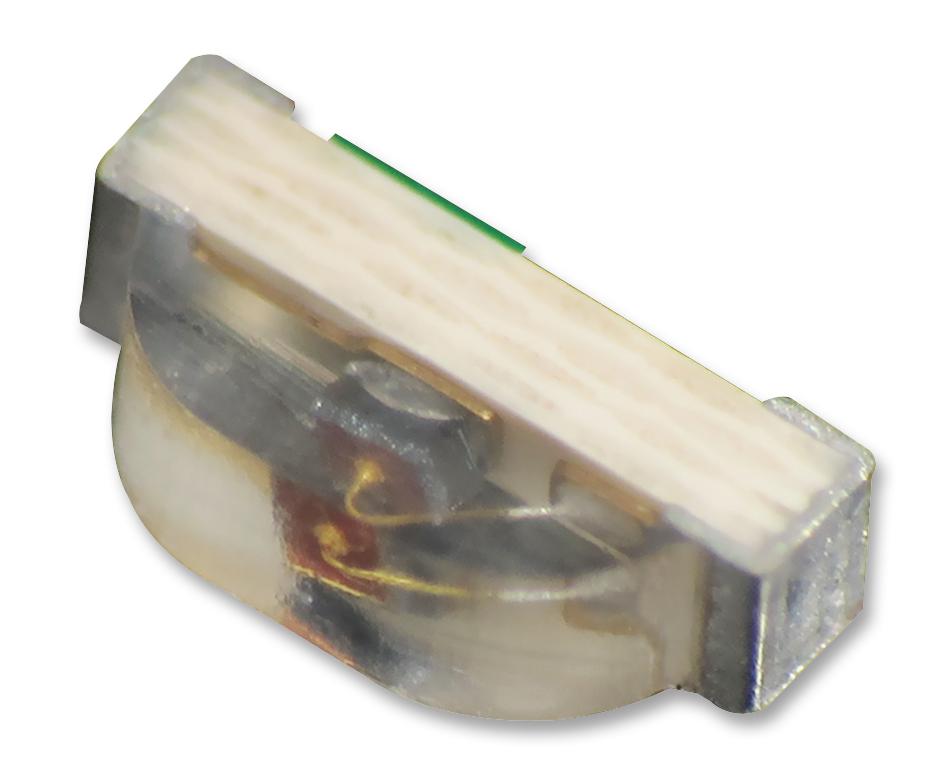

KINGBRIGHT KPA2106SECK High-brightness orange LED
The KPA-2106SECK is a 2.1 x 0.6 mm right-angle surface-mount LED chip featuring a super bright orange color and a water-clear lens. It is constructed with an AlGaInP (on GaAs substrate) light-emitting diode chip. The LED offers low power consumption and a wide viewing angle, making it ideal for backlighting and indicator applications. Suitable for LED lighting and signaling purposes. Please note that high market demand has led to extended lead times, which may cause fluctuations in delivery dates. This product is exempt from discounts.
KINGBRIGHT KPA2106SECK High-brightness orange LED Specifications:
- Dimensions: 2.1 x 0.6 mm, thickness 1.0 mm
- Wavelength: 610 nm peak, 601 nm dominant
- Luminous Intensity: 120° viewing angle, typ. 180-250 mcd at 20mA
- Forward Voltage: 24-25V at 20mA
- Operating Temperature: -40°C to +85°C
- Peak Forward Current: 195 mA
- Power Dissipation: 75 mW
- Reverse Voltage: 5V
- Moisture Sensitivity Level: 3
- Lens Type: Water clear
- Package: 2000 pcs/reel
- RoHS compliant
- Soldering Profile: Reflow, max temperature 260°C, recommended profile at 245°C
Buy the Buy Kingbright LED Part Number KPA-2106SECK Online
Order the Kingbright KPA-2106SECK online today to benefit from fast delivery of this high-brightness orange SMT LED. Designed with a super bright orange color and a water-clear lens, it provides a wide viewing angle of 120°, making it ideal for backlighting and indicator applications. Its low power consumption, robust construction with AlGaInP technology on GaAs substrate, and RoHS compliance ensure top performance and environmental safety. Whether for industrial lighting or signaling, this LED guarantees excellent brightness and durability. Purchase now for reliable, high-quality illumination solutions with quick shipping and expert support.
Buy Kingbright KPA-2106SECK now and experience unmatched reliability and performance with this high-brightness orange surface-mount LED for indicator and backlighting.
Frequently Asked Questions
Where can I buy KINGBRIGHT KPA2106SECK?
You can click on the BUY or RFQ button to purchase KPA2106SECK from an authorized KINGBRIGHT distributor.
How do I troubleshoot issues or seek technical support for part KPA2106SECK?
You can download the KPA2106SECK datasheet or visit the KINGBRIGHT website for support.
Who is the manufacturer of KPA2106SECK?
KINGBRIGHT
