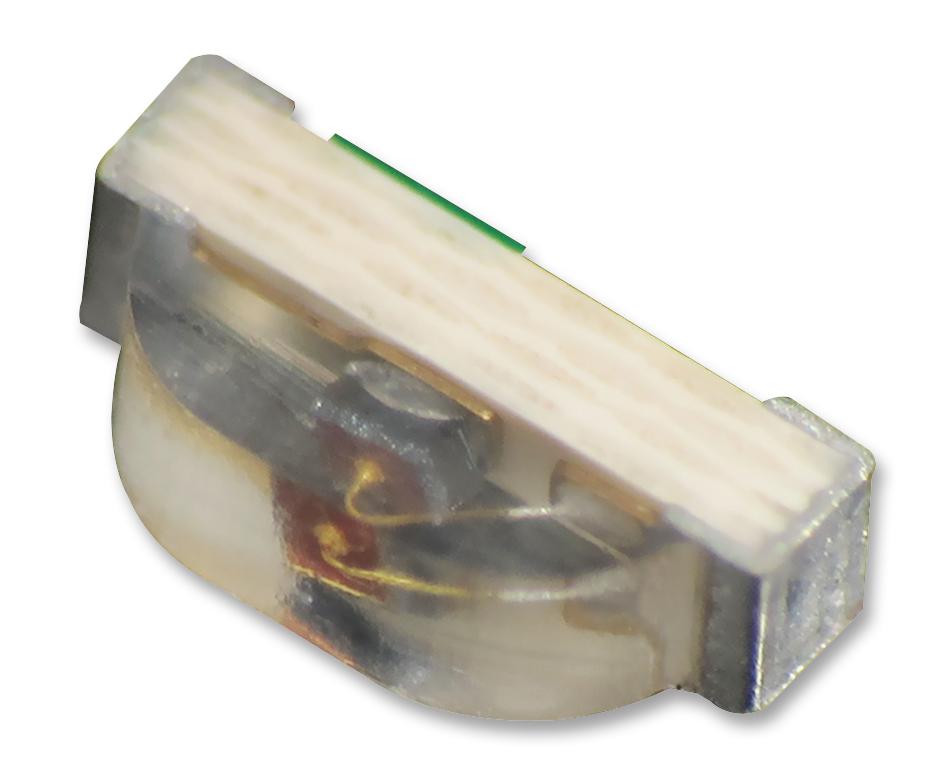

KINGBRIGHT KPA2106SYCK Yellow SMD LED
The KPA-2106SYCK is a compact 2.1 x 0.6mm right-angle SMD LED, emitting bright yellow light with a wide 120° viewing angle. Made with AlGaInP on GaAs substrate, it offers low power consumption and high brightness, making it ideal for backlighting and indicator lights in compact electronic devices. Features include a water-clear lens, tinned pads for excellent solderability, and a moisture sensitivity level 3 rating. Suitable for low-voltage applications, this RoHS-compliant LED ensures reliable performance in various electronic projects.
KINGBRIGHT KPA2106SYCK Yellow SMD LED Specifications:
- Size: 2.1mm x 0.6mm
- Lens type: Water clear
- Color: Bright yellow
- Wavelength: 590 nm +/-1 nm
- Forward Voltage: 2.25 V +/-0.1 V
- Peak Wavelength: 590 nm
- Luminous intensity: 150 mcd (typ)
- Viewing angle: 120°
- Power dissipation: 75 mW
- DC Forward Current: 30 mA
- Peak Forward Current: 175 mA
- Reverse Voltage: 5 V
- Operating temperature: -40°C to +85°C
- Storage temperature: -40°C to +85°C
- Moisture sensitivity level: 3
- Soldering: Reflow recommended, profile at 245°C (+/-5°C)
- Packaging: 2000 pcs/reel, RoHS compliant
Buy the Buy Kingbright LED Part Number KPA-2106SYCK Online
Purchase the Kingbright Yellow SMD LED, Part Number KPA-2106SYCK, online today and benefit from quick delivery, trusted quality, and excellent performance. Designed with a water-clear lens and wide viewing angle, this compact 2.1 x 0.6mm LED emits bright yellow light suitable for backlighting and indicator applications. RoHS compliant and featuring tinned pads for improved solderability, it ensures easy integration into various electronic designs. Order now to upgrade your projects with dependable, energy-efficient illumination that meets professional standards.
Order your Kingbright SeriesKPA-2106SYCK yellow LED today and enhance your electronic projects with reliable, high-brightness illumination.
Frequently Asked Questions
Where can I buy KINGBRIGHT KPA2106SYCK?
You can click on the BUY or RFQ button to purchase KPA2106SYCK from an authorized KINGBRIGHT distributor.
How do I troubleshoot issues or seek technical support for part KPA2106SYCK?
You can download the KPA2106SYCK datasheet or visit the KINGBRIGHT website for support.
Who is the manufacturer of KPA2106SYCK?
KINGBRIGHT
