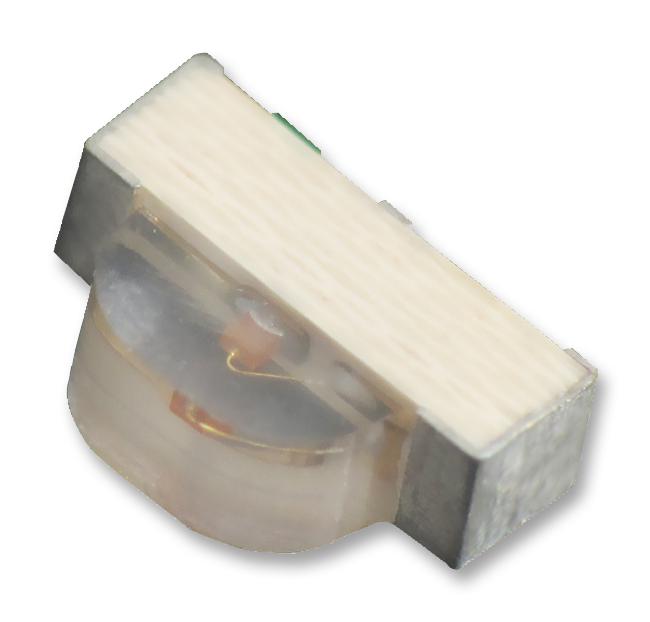

KINGBRIGHT KPA3010CGCK Right-angle Green SMD LED
The KPA-3010CGCK is a compact 3mm by 1mm right-angle SMT green LED with a water-clear lens, designed for efficient backlighting and indicator use. Built with AlGaInP on GaAs, it offers low power consumption and a wide 120° viewing angle. It features tinned pads for enhanced solderability and complies with RoHS standards. Ideal for electronic devices requiring reliable illumination and signaling, this LED performs well within a temperature range of -40°C to +85°C and can handle a peak forward current of 150mA. Its robust construction makes it suitable for various industrial and commercial lighting applications.
KINGBRIGHT KPA3010CGCK Right-angle Green SMD LED Specifications:
- Size: 3.0mm x 1.0mm, thickness 2.0mm
- Lens Type: Water Clear
- Color: Green (AlGaInP)
- Wavelength: 574 nm (typ.), 570 nm (dominant)
- Viewing Angle: 120°
- Forward Voltage: 24-25V at 20mA
- Peak Forward Current: 150mA (pulsed)
- DC Forward Current: 30mA
- Reverse Voltage: 5V
- Operating Temperature: -40°C to +85°C
- Storage Temperature: -40°C to +85°C
- Power Dissipation: 75mW
- Soldering: Reflow recommended with profile max 260°C, profile at 245°C
- Package: Reel of 2000 pcs, tape dimensions: 4.0mm x 0.472mm pitch
- RoHS compliant, Moisture Sensitivity Level: 3
Buy the Kingbright Series KPA Series Green LED: KPA-3010CGCK
Order the Kingbright KPA-3010CGCK green right-angle SMD LED online today to enhance your electronic designs with reliable illumination. This compact LED offers wide viewing angles, excellent brightness, low power consumption, and easy reflow soldering for quick assembly. Ideal for indicator and backlighting applications, it ensures consistent performance within a temperature range of -40°C to +85°C. With a reel of 2000 pieces and RoHS compliance, this high-quality LED is perfect for industrial, commercial, and DIY electronics. Purchase now and improve your lighting projects with proven reliability.
Buy Kingbright KPA-3010CGCK now and experience reliable, efficient green indicator lighting and backlighting for your electronic projects.
Frequently Asked Questions
Where can I buy KINGBRIGHT KPA3010CGCK?
You can click on the BUY or RFQ button to purchase KPA3010CGCK from an authorized KINGBRIGHT distributor.
How do I troubleshoot issues or seek technical support for part KPA3010CGCK?
You can download the KPA3010CGCK datasheet or visit the KINGBRIGHT website for support.
Who is the manufacturer of KPA3010CGCK?
KINGBRIGHT
