KINGBRIGHT KPA3010EC Red LED Indicator
The KPA-3010EC is a high-efficiency red surface-mount LED with a 3.0mm x 1.0mm right angle package and 2.0mm thickness. Featuring a water-clear lens and a 120° viewing angle, it emits at 617nm wavelength with a luminous intensity of 6mcd at 20mA. Designed with gallium arsenide phosphide on gallium phosphide, it offers low power consumption, a forward voltage of 2.25V, and peak wavelength of 627nm. Suitable for backlighting and indicator applications, it operates from -40°C to +85°C, with moisture sensitivity level 3 and RoHS compliance for environmental safety.
KINGBRIGHT KPA3010EC Red LED Indicator Specifications:
- Package dimensions: 3.0mm x 1.0mm x 2.0mm
- Wavelength: 617nm
- Peak wavelength: 627nm
- Spectral line half-width: 45nm
- Luminous intensity: 6mcd at 20mA
- Forward voltage: 2.25V
- Capacitance: 15pF
- Reverse current: 10μA at 5V
- Maximum power dissipation: 75mW
- DC forward current: 30mA
- Peak forward current: 160mA
- Operating temperature: -40°C to +85°C
- Storage temperature: -40°C to +85°C
- Moisture sensitivity level: 3
- Soldering: Reflow recommended at 245°C (+/-5°C), max 260°C, up to 2 reflows
- RoHS compliant
- View angle: 120°

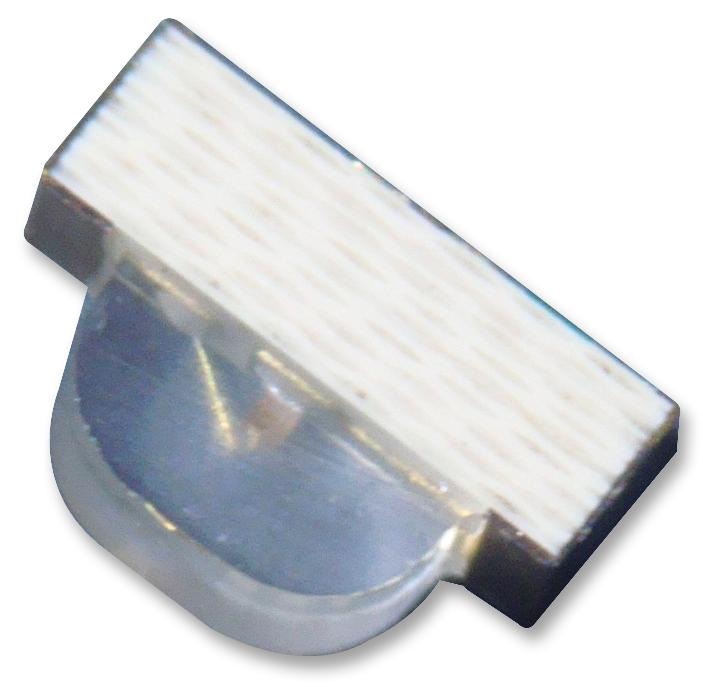

Buy the Kingbright Series KPA3010EC Red LED: KPA3010EC
Experience high efficiency and reliability with the Kingbright Red LED Indicator. Perfect for backlighting and signaling applications, it features a 120° viewing angle, 617nm wavelength, and low power consumption. Designed with gallium arsenide phosphide on gallium phosphide, this surface-mount device offers a compact size of 3.0mm x 1.0mm x 2.0mm, with a forward voltage of 2.25V at 20mA. Suitable for various environments, it operates from -40°C to +85°C, and complies with RoHS standards. Purchase online for quick delivery and quality assurance.
Get Kingbright KPA3010EC red LED today—built for precision and long-lasting durability.
Frequently Asked Questions
Where can I buy KINGBRIGHT KPA3010EC?
You can click on the BUY or RFQ button to purchase KPA3010EC from an authorized KINGBRIGHT distributor.
How do I troubleshoot issues or seek technical support for part KPA3010EC?
You can download the KPA3010EC datasheet or visit the KINGBRIGHT website for support.
Who is the manufacturer of KPA3010EC?
KINGBRIGHT
