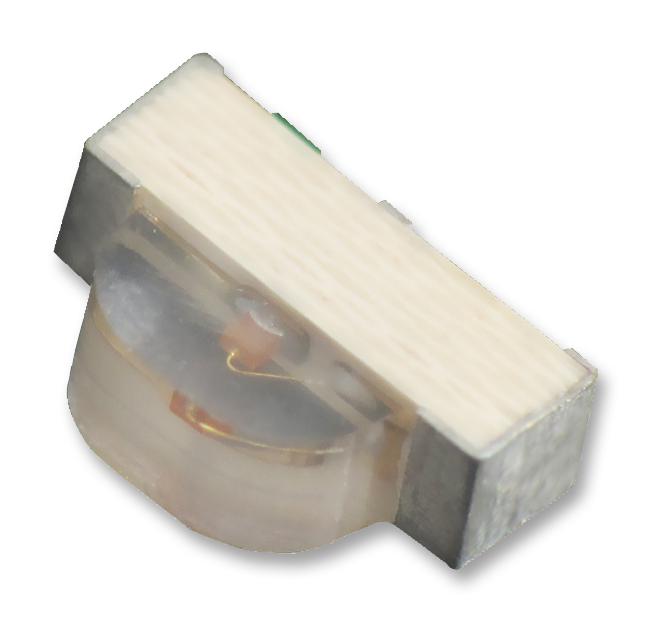

KINGBRIGHT KPA3010QBCD Right-Angle SMD Blue LED
The KPA-3010QBC-D is a compact 3mm by 1mm right-angle surface-mount blue LED with a water-clear lens, ideal for backlighting and indicators. It features an InGaN LED light source, low power consumption, and a wide 120° viewing angle. The device boasts tinned pads for easy soldering and meets RoHS standards, ensuring environmentally friendly manufacturing. Suitable for various electronic applications, it operates at typical forward voltage of 4V, with a maximum of 4.2V, and has a peak wavelength of 468nm. Its dielectric characteristics and mounting specifications make it an excellent choice for compact illumination projects.
KINGBRIGHT KPA3010QBCD Right-Angle SMD Blue LED Specifications:
- Dimensions: 3.0mm x 1.0mm x 2.0mm thickness
- Lens Type: Water clear
- Wavelength: 468 nm (peak), dominant 470 nm
- Viewing Angle: 120°
- Forward Voltage: 4V (typical), 4.2V (max)
- Reverse Voltage: 5V
- Power Dissipation: 120 mW
- DC Forward Current: 30 mA
- Peak Forward Current: 150 mA (1/10 duty cycle)
- Spectral Line Half-width: 25 nm
- Capacitance: 100 pF
- Operating Temperature: -40°C to +85°C
- Storage Temperature: -40°C to +85°C
- RoHS compliant, Tinned pads for soldering, Moisture sensitivity level 3
- Package: Reel of 2000 pcs, suitable for surface mounting
- Soldering Profile: Reflow recommended at 245°C (+/-5°C), max 260°C, two reflow cycles
- Certifications: RoHS compliant
Buy the Buy Kingbright 3.0mmx1.0 mm RIGHT ANGLE SMD LED Part Number KPA-3010QBC-D Online
Purchase the Kingbright Series KPA-3010QBC-D blue LED online today to ensure your electronics projects benefit from high brightness, reliable performance, and easy surface-mount installation. With wide viewing angles and RoHS compliance, these compact LEDs are perfect for backlight and signaling applications. Get high-quality, cost-effective LEDs with fast delivery, suitable for various industry-standard electronics and advanced signaling solutions. Trust our secure online ordering for prompt shipment and excellent customer support.
Order your Kingbright SeriesKPA-3010QBC-D blue LED today and enhance your electronic projects with reliable, high-quality indicator lighting.
Frequently Asked Questions
Where can I buy KINGBRIGHT KPA3010QBCD?
You can click on the BUY or RFQ button to purchase KPA3010QBCD from an authorized KINGBRIGHT distributor.
How do I troubleshoot issues or seek technical support for part KPA3010QBCD?
You can download the KPA3010QBCD datasheet or visit the KINGBRIGHT website for support.
Who is the manufacturer of KPA3010QBCD?
KINGBRIGHT
