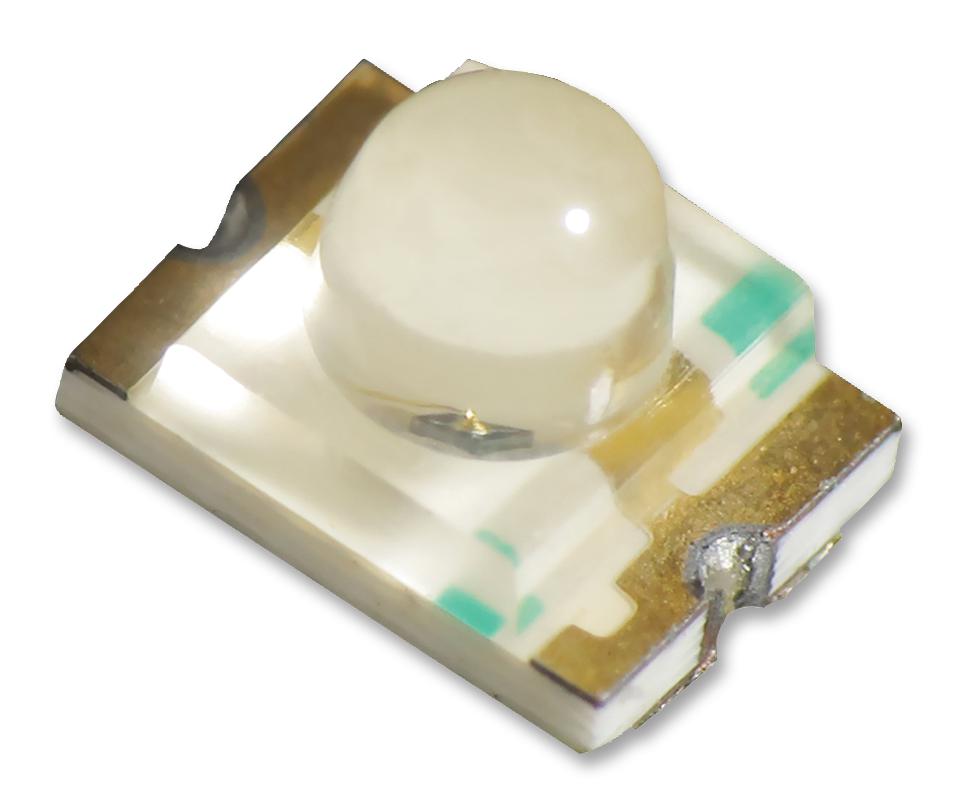

KINGBRIGHT KPBD3224SURKCGKC Dual-Color SMD LED Lamp
The KPBD-3224SURKCGKC is a compact surface-mount dual-color LED lamp measuring 3.2 x 2.4 mm with a 2.4 mm thickness. Featuring red and green LEDs made with AlGaInP on GaAs substrate, it is ideal for backlighting and indicators. The device offers low power consumption, moisture sensitivity level 3, and complies with RoHS standards. Suitable for consumer electronics, it includes dome lenses for optimal light distribution and is mounted on a single surface, making assembly straightforward and reliable for various electronic applications.
KINGBRIGHT KPBD3224SURKCGKC Dual-Color SMD LED Lamp Specifications:
- Dimensions: 3.2 x 2.4 mm, thickness 2.4 mm
- Red LED: AlGaInP on GaAs, peak wavelength 645 nm, dominant wavelength 630 nm, spectral line half-width 3 nm, forward voltage 2.0-3.8 V at 20mA
- Green LED: AlGaInP on GaAs, peak wavelength 575 nm, forward voltage 2.0-3.8 V at 20mA
- Luminous intensity: Hyper Red 700-1300 mcd, Green 80-280 mcd
- Operational temperature: -40°C to +85°C
- Power dissipation: 75 mW
- DC Forward Current: 30 mA, Peak Forward Current: Hyper Red 185 mA, Green 150 mA
- Moisture Sensitivity Level: 3
- RoHS compliant
- Reflow soldering recommended with profile: temperature 245°C (+/-5°C), max 260°C, up to 2 reflow cycles
- Package: 1500 pcs per reel, tape dimension tolerance +0.1 mm
Buy the Buy Kingbright KPBD-3224SURKCGKC Part Number KPBD-3224SURKCGKC Online
Purchase the Kingbright KPBD-3224SURKCGKC dual-color surface-mount LED lamp online to ensure quick delivery and high-quality components for your electronic projects. This compact 3.2x2.4mm device features red and green LEDs with dome lenses, delivering reliable illumination for indicators and backlighting in consumer electronics. Its low power consumption and RoHS compliance make it an excellent choice for environmentally conscious manufacturing. Easy to solder with recommended profile, ensuring consistent performance in various temperature conditions. Order now to enhance your designs with top-tier LED components.
Order your Kingbright Series KPBD-3224SURKCGKC dual-color LED today and enhance your electronic projects with reliable backlighting solutions.
Frequently Asked Questions
Where can I buy KINGBRIGHT KPBD3224SURKCGKC?
You can click on the BUY or RFQ button to purchase KPBD3224SURKCGKC from an authorized KINGBRIGHT distributor.
How do I troubleshoot issues or seek technical support for part KPBD3224SURKCGKC?
You can download the KPBD3224SURKCGKC datasheet or visit the KINGBRIGHT website for support.
Who is the manufacturer of KPBD3224SURKCGKC?
KINGBRIGHT
