KINGBRIGHT KPD3224SGC Super Bright Green LED

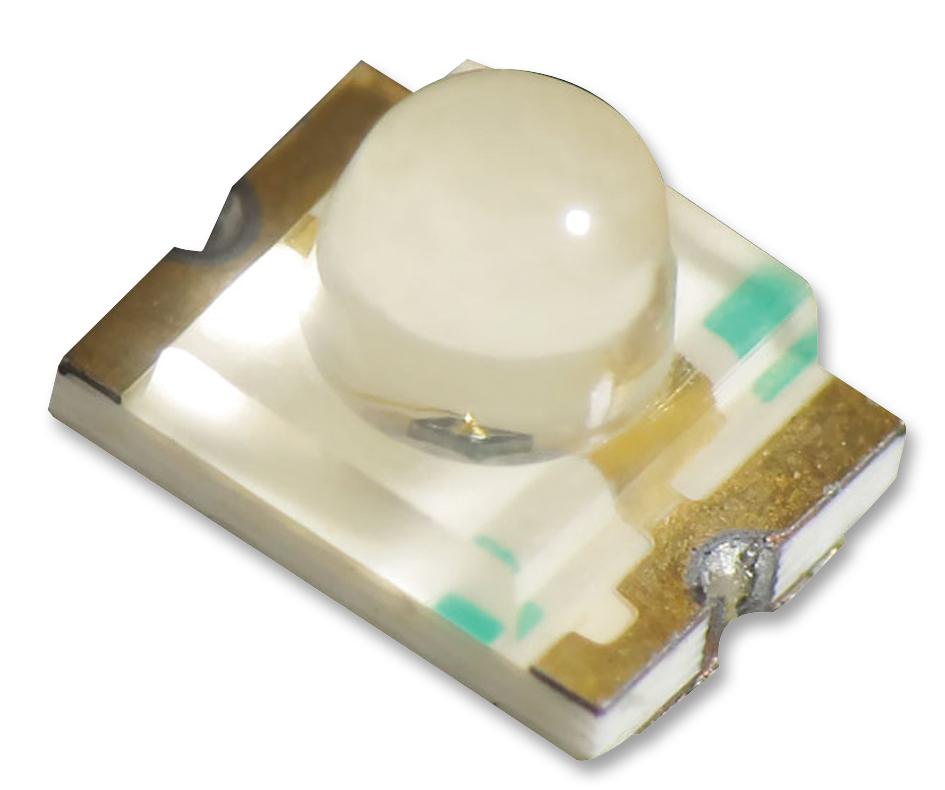

The KPD-3224SGC is a 3.2 x 2.4 mm super bright green SMD chip LED with a water-clear lens. Made with Gallium Phosphide, it provides high brightness and low power consumption, ideal for backlighting, indicators, and signaling in electronic devices. The device features a 565 nm peak wavelength, 568 nm dominant wavelength, and a 20° viewing angle. Suitable for surface-mount assembly, it offers excellent luminous efficiency and reliability, making it perfect for various industrial lighting and indicator applications.
KINGBRIGHT KPD3224SGC Super Bright Green LED Specifications:
- Size: 3.2 x 2.4 mm with 2.4 mm thickness
- Peak Wavelength: 565 nm
- Dominant Wavelength: 568 nm
- Spectral Line Half-width: 30 nm
- Forward Voltage: 22-25 V at 20 mA
- Reverse Current: 10 μA at 5 V
- Power Dissipation: 62.5 mW
- DC Forward Current: 25 mA
- Peak Forward Current: 140 mA
- Reverse Voltage: 5 V
- Operating Temperature: -40°C to +85°C
- Storage Temperature: -40°C to +85°C
- Viewing Angle: 20°
- Luminous Intensity @ 20 mA: approximately 55-100 mcd
- Package: 1500 pcs per reel
- RoHS Compliant
- Moisture Sensitivity Level: Level 3
- Soldering: Reflow recommended with profile 245°C ±5°C
Buy the Kingbright KPD-3224SGC – Reliable Green LED for Industrial Applications
Order the Kingbright KPD-3224SGC online today and enhance your electronic projects with this compact, high-brightness green LED. Designed for backlighting, indicators, and signaling, it features a water-clear lens, low power consumption, and robust reliability. The LED's small footprint allows for easy surface-mount assembly, making it ideal for industrial applications demanding efficiency and brightness. With 1500 pieces per reel, you can conveniently scale your manufacturing or repair processes while ensuring high-quality performance in every unit. Upgrade your device lighting with this dependable LED today.
Buy Kingbright KPD-3224SGC now and experience unmatched brightness and energy efficiency for your lighting and indicator needs.
Frequently Asked Questions
Where can I buy KINGBRIGHT KPD3224SGC?
You can click on the BUY or RFQ button to purchase KPD3224SGC from an authorized KINGBRIGHT distributor.
How do I troubleshoot issues or seek technical support for part KPD3224SGC?
You can download the KPD3224SGC datasheet or visit the KINGBRIGHT website for support.
Who is the manufacturer of KPD3224SGC?
KINGBRIGHT
