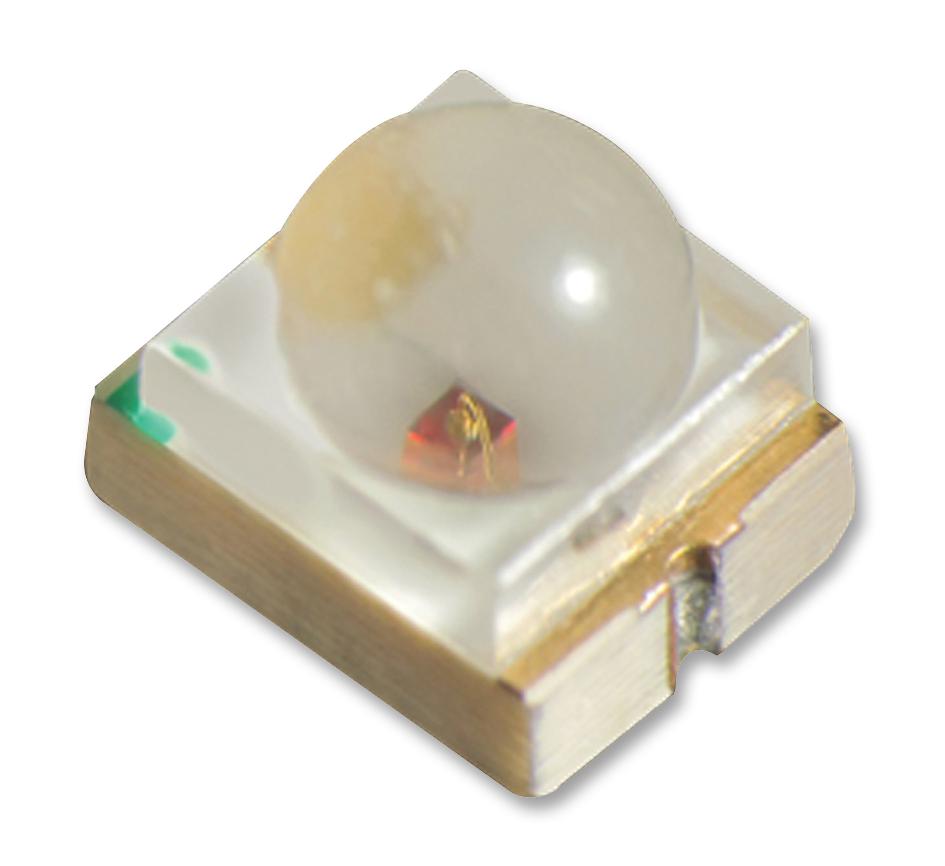

KINGBRIGHT KPED3528CGCK Surface Mount LED
The KPED-3528CGCK is a green SMD chip LED measuring 3.5 x 2.8 mm, featuring a water-clear lens. It is manufactured using AlGaInP on a GaAs substrate, making it suitable for various surface-mount technology (SMT) assembly and soldering processes. This LED is ideal for backlighting applications, signally, and industrial lighting. Its high luminous efficiency and robust construction make it a dependable choice for lighting projects. Please note that due to high market demand, lead times may be extended, and delivery dates could fluctuate. The product is exempt from discounts.
KINGBRIGHT KPED3528CGCK Surface Mount LED Specifications:
- Dimensions: 3.5mm x 2.8mm x 0.8mm
- Lens Type: Water clear
- Light Source: Green AlGaInP
- Peak Wavelength: 574 nm
- Dominant Wavelength: 570 nm
- Spectral Line Half-width: 20 nm
- Forward Voltage: 24-25 V at 20mA
- Reverse Current: 10 μA at 5V
- Power Dissipation: 75 mW
- DC Forward Current: 30 mA
- Peak Forward Current: 150 mA
- Operating Temperature: -40°C to +85°C
- Storage Temperature: -40°C to +85°C
- Moisture Sensitivity Level: 3
- Package: 500 pcs/reel
- Soldering Method: Reflow soldering recommended with profile temperature 245°C (+/-5°C), maximum 260°C
Buy the Buy Kingbright KPED-3528CGCK Part Number KPED-3528CGCK Online
Secure your Kingbright KPED-3528CGCK surface mount LED online today. Featuring a water-clear lens and energy-efficient green light, it's perfect for backlighting, signage, and industrial lighting. Its compact 3.5x2.8mm size along with a high lumen output ensures excellent brightness and durability. Manufactured with AlGaInP on GaAs substrate, this LED supports smooth SMT assembly and soldering. Enjoy fast delivery, easy online ordering, and dependable performance for your lighting projects with this versatile, high-quality LED. Order now to get the best for your design needs.
Order your Kingbright KPED-3528CGCK series green LED today and enhance your backlighting, signage, or industrial projects with reliable quality.
Frequently Asked Questions
Where can I buy KINGBRIGHT KPED3528CGCK?
You can click on the BUY or RFQ button to purchase KPED3528CGCK from an authorized KINGBRIGHT distributor.
How do I troubleshoot issues or seek technical support for part KPED3528CGCK?
You can download the KPED3528CGCK datasheet or visit the KINGBRIGHT website for support.
Who is the manufacturer of KPED3528CGCK?
KINGBRIGHT
