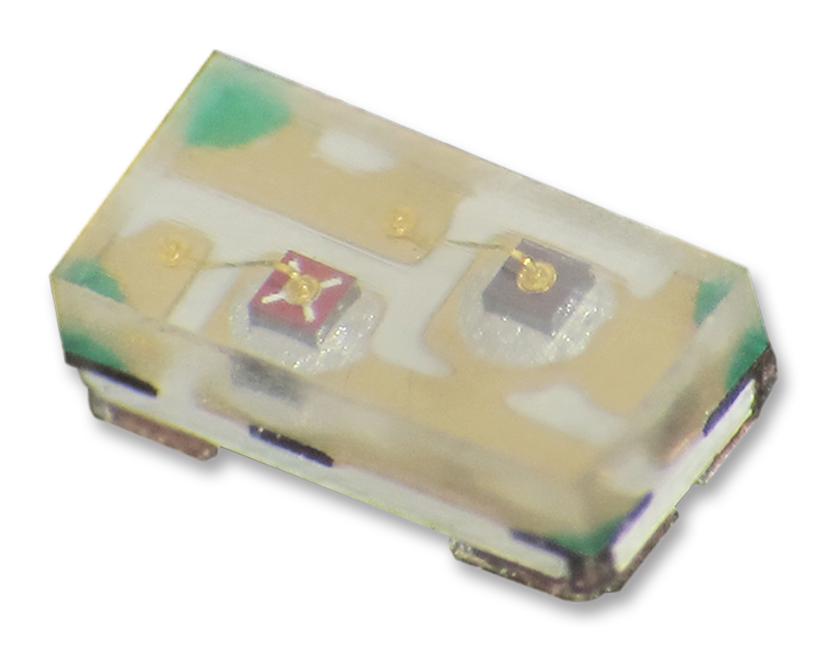

KINGBRIGHT KPHB1608SURKCGKCGX Surface Mount LED
The KPHB-1608SURKCGKC-GX is a compact surface-mount LED with water-clear lenses, featuring hyper red and green colors made with AlGaInP on GaAs substrates. Its small size of 1.6x0.8x0.5mm and 0.5mm thickness makes it ideal for various electronic displays and indicator applications. The device is compatible with reflow soldering, has a moisture sensitivity level 3, and includes tinned pads for better solderability. It operates at 5V reverse voltage, with an operating temperature range from -40°C to 85°C, suitable for industrial and consumer electronic uses.
KINGBRIGHT KPHB1608SURKCGKCGX Surface Mount LED Specifications:
- Package: 2000 pcs/reel
- Dimensions: 1.6 mm x 0.8 mm x 0.5 mm
- Material: AlGaInP on GaAs substrate
- Lens: Water clear
- Color: Hyper Red and Green
- Moisture sensitivity level: 3
- Soldering: Compatible with reflow soldering
- Solder pads: Tinned for improved solderability
- Reverse voltage: 5 V
- Operating temperature: -40°C to +85°C
- Peak wavelength: Hyper Red approximately 620 nm, Green approximately 565 nm
- Forward voltage: Hyper Red approx. 2.0-2.5 V, Green approx. 2.0-3.2 V
- Peak current: 30 mA (DC), Peak 150-185 mA
- Luminous intensity: Hyper Red 130° view angle, Green 130° view angle
Buy the Buy Kingbright LED Part Number KPHB1608SURKCGKCGX Online
Discover the high-quality Kingbright surface mount LED KPHB1608SURKCGKCGX, designed with water-clear lenses and AlGaInP technology for vibrant colors and efficiency. Its compact 1.6x0.8mm size makes it adaptable for various electronic applications, including indicators and displays. Compatible with reflow soldering, it features moisture resistance level 3 and tinned pads for better solderability. Operating within -40°C to 85°C temperature range and at 5V reverse voltage, this LED ensures durability and consistent performance for industrial and consumer electronics, making it an ideal choice for modern device designs.
Get Kingbright LED KPHB1608SURKCGKCGX today—built for reliability, brightness, and long-lasting performance.
