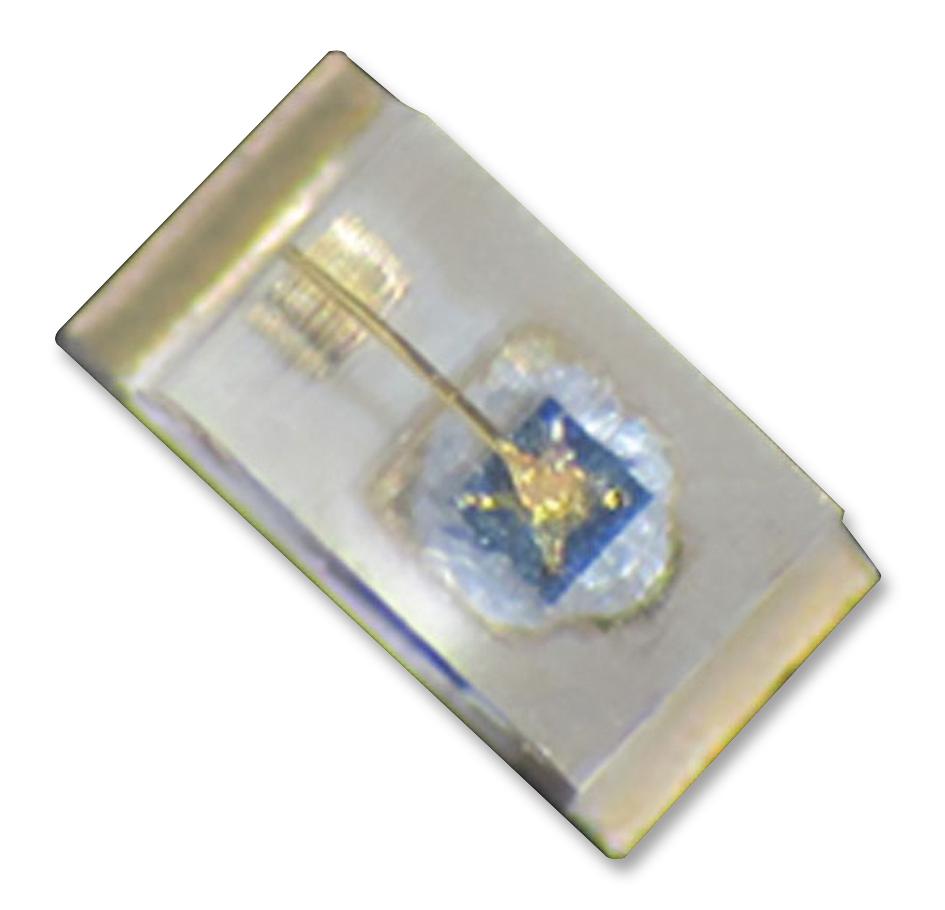

KINGBRIGHT KPHHS1005QBCDV Blue Chip LED
The KPHHS-1005QBC-D-V is a blue chip LED lamp featuring a water-clear lens with an SMD mounting. It has a rectangular lens design with a 120° viewing angle and a luminous intensity of 50 millicandelas. Made with InGaN, the blue LED is suitable for backlighting and indicator applications. It has a thickness of 0.5mm, offers low power consumption, and provides a wide viewing angle. This device is sensitive to electrostatic discharge (ESD); proper handling precautions are necessary. The product is exempt from discounts and may have extended lead times.
KINGBRIGHT KPHHS1005QBCDV Blue Chip LED Specifications:
- Package: 2000 pieces per reel
- Dimensions: Length 1.0mm, Width 0.5mm, Thickness 0.5mm
- Lens Type: Water Clear, rectangular
- Viewing Angle: 120°
- Peak Wavelength: 468 nm
- Forward Voltage: 3.3V at 20mA
- Forward Current: 30mA (max), 20mA recommended for continuous use
- Reverse Voltage: 5V
- Power Dissipation: 120mW
- Spectral Line Half-width: 25nm
- Capacitance: 100pF
- Operating Temperature: -40°C to +85°C
- Storage Temperature: -40°C to +85°C
- Moisture Sensitivity Level: 3
- RoHS Compliant
- Soldering: Reflow profile recommended, max temperature 260°C, two reflow cycles maximum
- Electrostatic Discharge: sensitive, handle with grounded tools
- Material: InGaN for blue LED
Buy the Kingbright Series LED Indicator: KPHHS1005QBCD-V
Purchase the Kingbright Series Blue Chip LED KPHHS1005QBC-D-V today via our online store. Its compact design, water-clear lens, and 120° viewing angle make it ideal for backlighting and indicator applications. With low power consumption, high luminous intensity, and robust construction, this SMD LED offers excellent performance for electronic projects. Handle with care due to ESD sensitivity, and enjoy fast shipping and secure checkout. Elevate your design with this reliable, energy-efficient illumination component, available now for quick online ordering.
Order your Kingbright Series LED Indicator KPHHS1005QBC-D-V today and enhance your electronic projects with reliable, high-brightness illumination.
Frequently Asked Questions
Where can I buy KINGBRIGHT KPHHS1005QBCDV?
You can click on the BUY or RFQ button to purchase KPHHS1005QBCDV from an authorized KINGBRIGHT distributor.
How do I troubleshoot issues or seek technical support for part KPHHS1005QBCDV?
You can download the KPHHS1005QBCDV datasheet or visit the KINGBRIGHT website for support.
Who is the manufacturer of KPHHS1005QBCDV?
KINGBRIGHT
