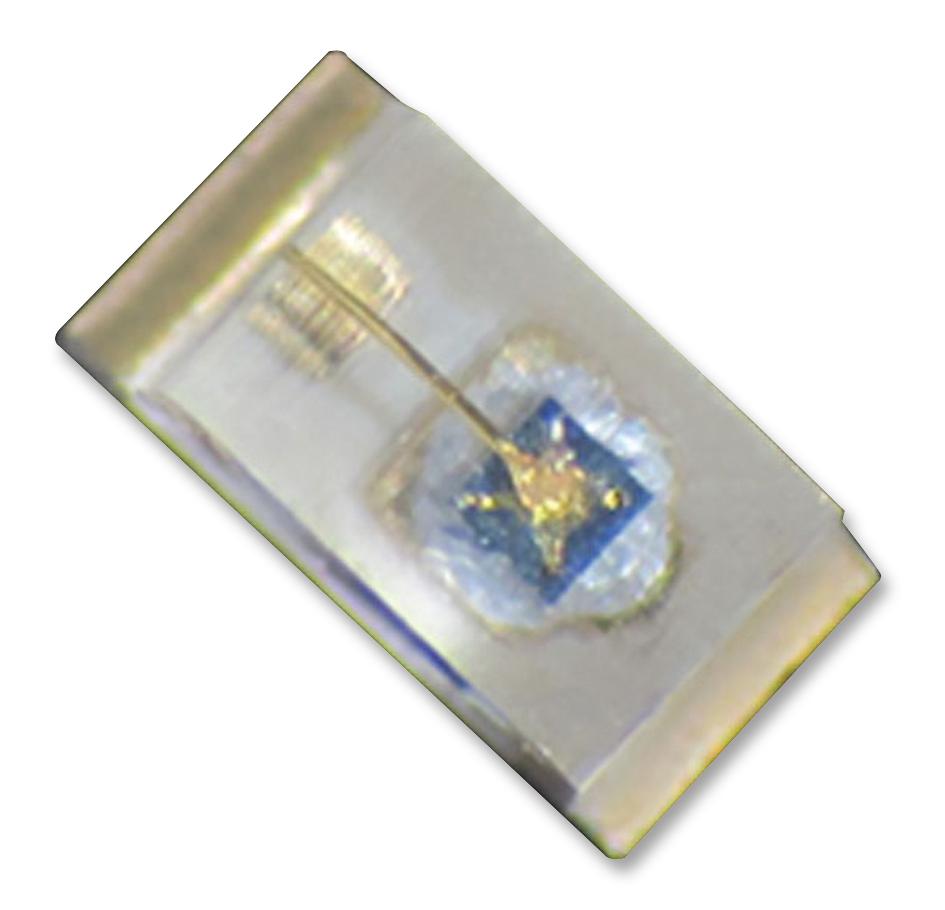

KINGBRIGHT KPHHS1005ZGCV Green SMD Chip LED
The KPHHS-1005ZGC-V is a compact 1x0.5mm green SMD chip LED featuring InGaN technology on sapphire with water-clear lens, ideal for indicators and backlight applications. It offers low power consumption, a wide 120° viewing angle, and a maximum thickness of 0.5mm. Suitable for surface mounting, it is electrostatic-sensitive, requiring anti-static precautions during handling. Operating within -40°C to +85°C, it provides a forward voltage of 3.3V at 20mA, with a peak wavelength of 515nm, designed for high reliability in electronic displays and illumination systems.
KINGBRIGHT KPHHS1005ZGCV Green SMD Chip LED Specifications:
- Size: 1.0mm x 0.5mm
- Thickness: 0.5mm
- Color: Green
- Lens Type: Water Clear
- Peak Wavelength: 515 nm
- Dominant Wavelength: 525 nm
- Spectral Line Half-width: 30 nm
- Forward Voltage: 3.3V at 20mA
- Peak Current: 150 mA
- Reverse Voltage: 5V
- Power Dissipation: 102.5 mW
- Operating Temperature: -40°C to +85°C
- Storage Temperature: -40°C to +85°C
- Viewing Angle: 120°
- Electrical Capacitance: 45 pF
- Moisture Sensitivity Level: 3
- Package: 2000 pcs per reel
- RoHS compliant
- Soldering Method: Reflow recommended with profile maximum of 260°C
Buy the Kingbright Series 1.0X0.5mm Green LED: KPHHS1005ZGC-V
Purchase the high-reliability Kingbright Green SMD Chip LED, model KPHHS-1005ZGC-V, designed for efficient backlighting and indicator applications. Its compact size of 1x0.5mm allows for easy surface mounting, making it perfect for space-constrained designs. Featuring InGaN technology on sapphire, it provides a peak wavelength of 515nm and a wide 120° viewing angle. With low power consumption and RoHS compliance, this LED ensures durability and eco-friendliness. Order online now for fast delivery and improve your electronic display projects with dependable lighting solutions.
Order your Kingbright Series 1.0X0.5mm green LED KPHHS-1005ZGC-V today and enhance your electronic projects with high-quality, reliable illumination components.
Frequently Asked Questions
Where can I buy KINGBRIGHT KPHHS1005ZGCV?
You can click on the BUY or RFQ button to purchase KPHHS1005ZGCV from an authorized KINGBRIGHT distributor.
How do I troubleshoot issues or seek technical support for part KPHHS1005ZGCV?
You can download the KPHHS1005ZGCV datasheet or visit the KINGBRIGHT website for support.
Who is the manufacturer of KPHHS1005ZGCV?
KINGBRIGHT
