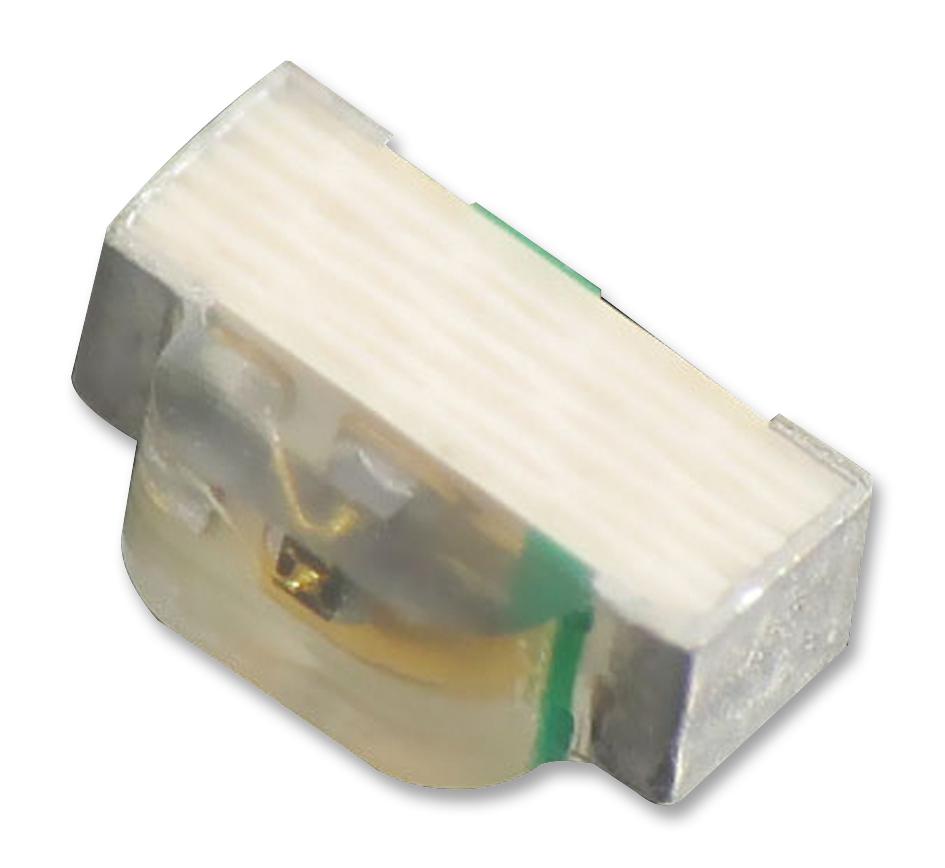

KINGBRIGHT KPJA2107QBCD Blue Surface-Mount LED
The KPJA-2107QBC-D is a 2.1 x 0.7 mm right-angle blue surface-mount LED chip with a water-clear lens, built with InGaN technology for vibrant blue emission. It features low power consumption, a wide viewing angle of up to 120°, and excellent solderability due to tinned pads. Operating at a maximum forward voltage of 4V and a typical peak wavelength of 468 nm, this LED is suitable for backlighting, indicators, and signaling in various electronic devices. Designed for high-performance and easy integration in compact spaces, it complies with RoHS standards.
KINGBRIGHT KPJA2107QBCD Blue Surface-Mount LED Specifications:
- Size: 2.1 x 0.7 mm, Thickness: 1.3 mm
- Wavelength: Peak 468 nm, Dominant 470 nm
- Viewing Angle: 120°
- Peak Luminous Intensity: 80 mcd at 20mA
- Forward Voltage: 3.3 - 4 V at 20mA
- Reverse Current: 50 μA at 5V
- Power Dissipation: 120 mW
- Operating Temperature: -40°C to +85°C
- Storage Temperature: -40°C to +85°C
- Peak Forward Current: 150 mA (pulsed)
- Soldering: Reflow recommended, profile 245°C ±5°C
- RoHS compliant, Tinned pads for improved solderability
Buy the Kingbright KPJA-2107QBC-D – Reliable Blue SMT LED for Industrial Applications
Purchase the Kingbright KPJA-2107QBC-D online today and enjoy high-performance blue LED lighting for your electronic projects. This compact, reliable surface-mount LED offers a wide viewing angle up to 120°, low power consumption, and excellent solderability, making it perfect for indicators, backlighting, and signaling systems. Designed with InGaN technology, it provides bright blue illumination with a peak wavelength of 468 nm. Ensure your electronic devices are illuminated efficiently by ordering this RoHS-compliant LED directly from our online store now.
Get Kingbright KPJA-2107QBC-D today—built for precision, high brightness, and long-lasting durability in electronic signaling and backlighting.
Frequently Asked Questions
Where can I buy KINGBRIGHT KPJA2107QBCD?
You can click on the BUY or RFQ button to purchase KPJA2107QBCD from an authorized KINGBRIGHT distributor.
How do I troubleshoot issues or seek technical support for part KPJA2107QBCD?
You can download the KPJA2107QBCD datasheet or visit the KINGBRIGHT website for support.
Who is the manufacturer of KPJA2107QBCD?
KINGBRIGHT
