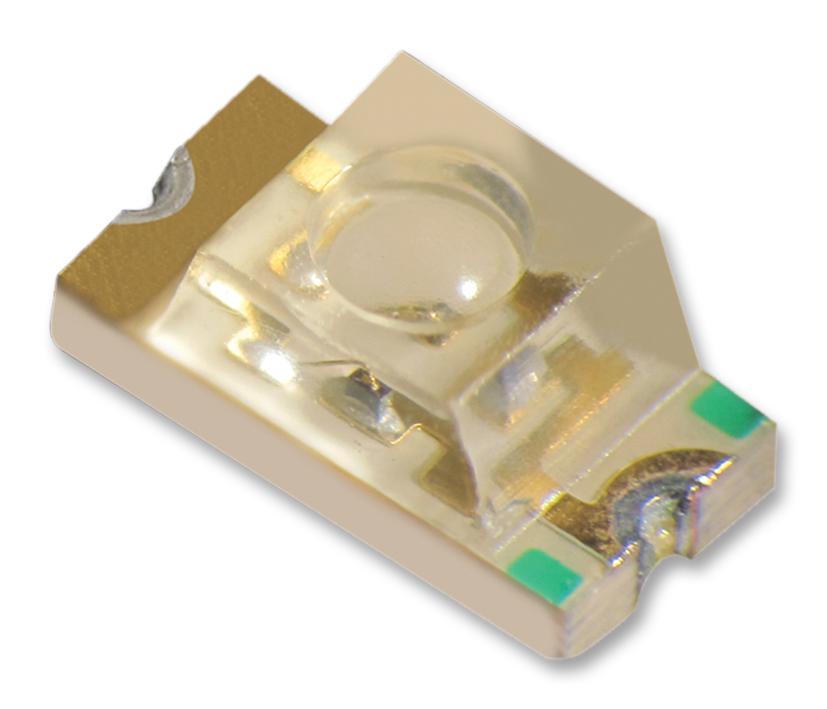

KINGBRIGHT KPL3015CGCK Green SMD LED
The KPL-3015CGCK is a compact green SMD chip LED with dimensions of 3.0mm x 1.5mm and a thickness of 1.4mm, featuring a water-clear lens and low power consumption. Made with AlGaInP on GaAs substrate, it provides bright green illumination at a peak wavelength of 574 nm and a dominant wavelength of 570 nm. The LED offers a wide viewing angle of 70°, suitable for backlight and indicator uses in automotive, consumer, and industrial applications, ensuring high reliability and efficiency.
KINGBRIGHT KPL3015CGCK Green SMD LED Specifications:
- Dimensions: 3.0mm x 1.5mm x 1.4mm thickness
- Peak Wavelength: 574 nm
- Dominant Wavelength: 570 nm
- Viewing Angle: 70°
- Luminous Intensity: Min. 55 mcd at 20mA
- Forward Voltage: 2.4V - 2.5V at 20mA
- Maximum Power Dissipation: 75 mW
- Forward Current: 30 mA max., 20 mA typical
- Operating Temperature: -40°C to +85°C
- Storage Temperature: -40°C to +85°C
- Moisture Sensitivity Level: 3
- Package: Reels of 2000 pieces, RoHS compliant
Buy the Kingbright Series LED Indicator: KPL-3015CGCK
Order the Kingbright KPL-3015CGCK green SMD LED online today to enhance your lighting projects. This compact, low-power LED features a water-clear lens, wide viewing angle, and high reliability, making it ideal for backlighting, indicators, and signaling in electronic devices. With RoHS compliance and efficient performance, it ensures durability and high luminous output. Purchase now for fast delivery and integrate this versatile LED into your applications for superior brightness and energy efficiency.
Buy Kingbright KPL-3015CGCK now and experience unmatched reliability and performance in compact green indicator LEDs suitable for various lighting applications.
