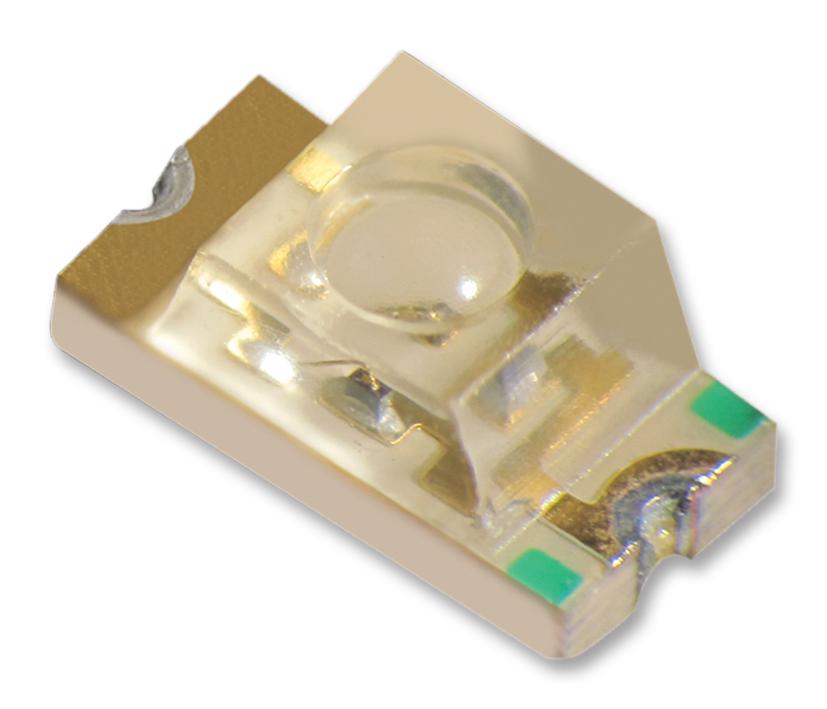

KINGBRIGHT KPL3015SGC Green LED
The KPL-3015SGC is a 3 x 1.5 mm super bright green SMD chip LED with a water-clear lens. Made with gallium phosphide, it emits a bright green light, ideal for backlighting and indicators. Its low power consumption and compact size suit various LED lighting and signaling applications. This RoHS-compliant LED features a wavelength of approximately 565-568 nm, forward voltage around 22-25 V at 20 mA, and a typical viewing angle of 70°. Designed for surface mounting, it can withstand up to 85°C operating temperature, making it suitable for demanding industrial lighting projects.
KINGBRIGHT KPL3015SGC Green LED Specifications:
- Dimensions: 3.0mm x 1.5mm x 1.4mm thickness
- Wavelength: 565-568 nm at 20mA
- Forward Voltage: 22-25 V at 20mA
- Luminous Intensity: 18-70° viewing angle, 70° typical
- Operating Temperature: -40°C to +85°C
- Power Dissipation: 62.5 mW
- Peak Forward Current: 140 mA
- Reverse Voltage: 5 V
- RoHS Compliant, Moisture Sensitivity Level 3
- Package: 2000 pcs/reel
- Material: Gallium Phosphide (GaP), Water Clear lens
- Spectral Line Half-width: 30 nm
- Capacitance: 15 pF
Buy the Kingbright KPL-3015SGC – Reliable Green LED for Industrial Applications
Purchase the Kingbright Green LED now and enhance your industrial lighting and indicator projects with a high-quality, reliable, and energy-efficient component. The KPL-3015SGC offers a compact size with water-clear lens and excellent brightness, ensuring optimal visual performance. Its low power consumption and robust construction make it suitable for various demanding environments. Order online today to benefit from fast delivery and enjoy the dependable quality that Kingbright provides for lighting, signaling, and electronic applications worldwide.
Order your Kingbright Series KPL-3015SGC today and give your projects the dependable quality they deserve, perfect for backlighting and indicator use in industrial settings.
Frequently Asked Questions
Where can I buy KINGBRIGHT KPL3015SGC?
You can click on the BUY or RFQ button to purchase KPL3015SGC from an authorized KINGBRIGHT distributor.
How do I troubleshoot issues or seek technical support for part KPL3015SGC?
You can download the KPL3015SGC datasheet or visit the KINGBRIGHT website for support.
Who is the manufacturer of KPL3015SGC?
KINGBRIGHT
