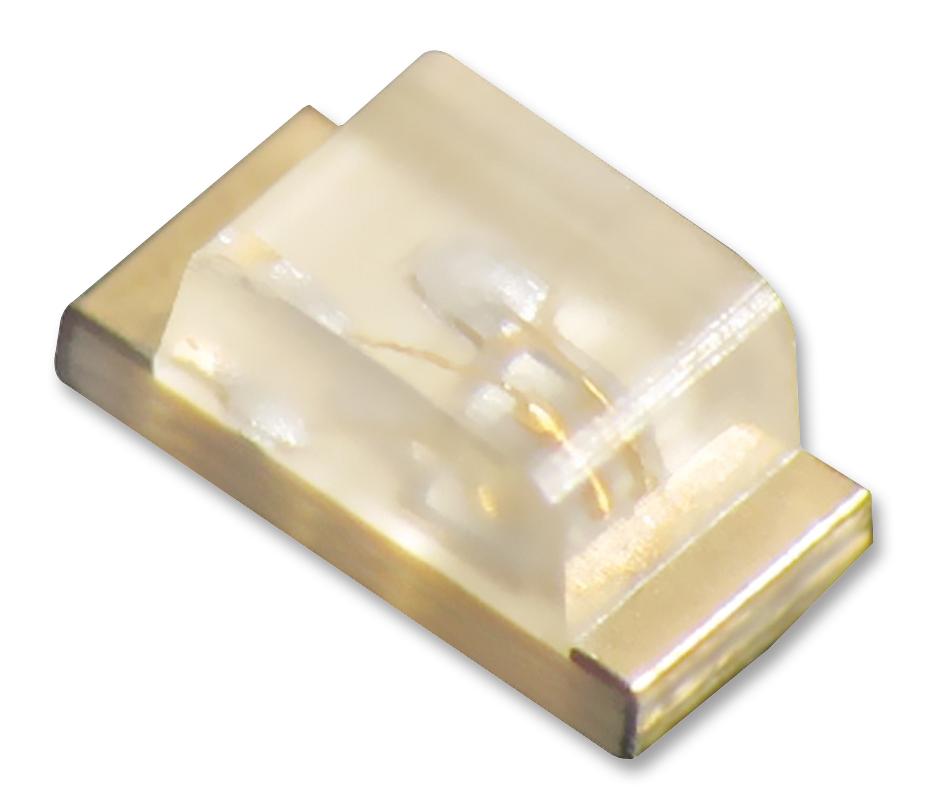

KINGBRIGHT KPT2012QBCD Blue LED
The KPT-2012QBC-D is a blue surface-mount LED with a water-clear lens, made using InGaN technology. It has dimensions of 2.0 x 1.25 mm with a thickness of 0.75 mm. This LED offers low power consumption, a wide viewing angle, and is suitable for backlighting and indicator applications. It features level-3 moisture sensitivity and is intended for use in LED lighting. The product is sensitive to electrostatic discharge (ESD), so proper handling precautions such as anti-static wrist straps and suits are recommended during operation. Market demand has extended lead times, and delivery dates may vary. The part number is KPT2012QBCD.
KINGBRIGHT KPT2012QBCD Blue LED Specifications:
- Dimensions: 2.0 x 1.25 mm, thickness 0.75 mm
- Lens Type: Water Clear
- Wavelength: 468 nm (peak), dominant wavelength 470 nm
- Luminous Intensity: Min. 40 mcd at 20mA, Typ. 100 mcd
- Viewing Angle: 120°
- Forward Voltage: 3.3 - 4 V at 20mA
- Reverse current: 50 μA at 5V
- Power dissipation: 120 mW
- DC Forward Current: 30 mA, Peak: 150 mA
- Operating Temperature: -40°C to +85°C
- Storage Temperature: -40°C to +85°C
- Moisture Sensitivity Level: 3
- Package: 2000 pcs per reel
- RoHS Compliant
- Electrostatic Discharge (ESD) sensitive, handle with anti-static precautions
Buy the Kingbright KPT-2012QBC-D – Reliable Blue LED for Industrial Applications
Order the Kingbright KPT-2012QBC-D blue surface-mount LED online today. With water-clear lenses, low power consumption, and wide viewing angles, it’s perfect for backlighting and indicator applications. This InGaN LED offers high reliability, RoHS compliance, and easy installation. Its compact size and robust performance make it ideal for industrial, consumer, and electronic device lighting solutions. Experience fast delivery, excellent quality, and competitive pricing by purchasing online now and enhance your project’s efficiency with this high-performance LED.
Buy Kingbright KPT-2012QBC-D now and experience unmatched reliability and performance for your LED lighting projects.
Frequently Asked Questions
Where can I buy KINGBRIGHT KPT2012QBCD?
You can click on the BUY or RFQ button to purchase KPT2012QBCD from an authorized KINGBRIGHT distributor.
How do I troubleshoot issues or seek technical support for part KPT2012QBCD?
You can download the KPT2012QBCD datasheet or visit the KINGBRIGHT website for support.
Who is the manufacturer of KPT2012QBCD?
KINGBRIGHT
