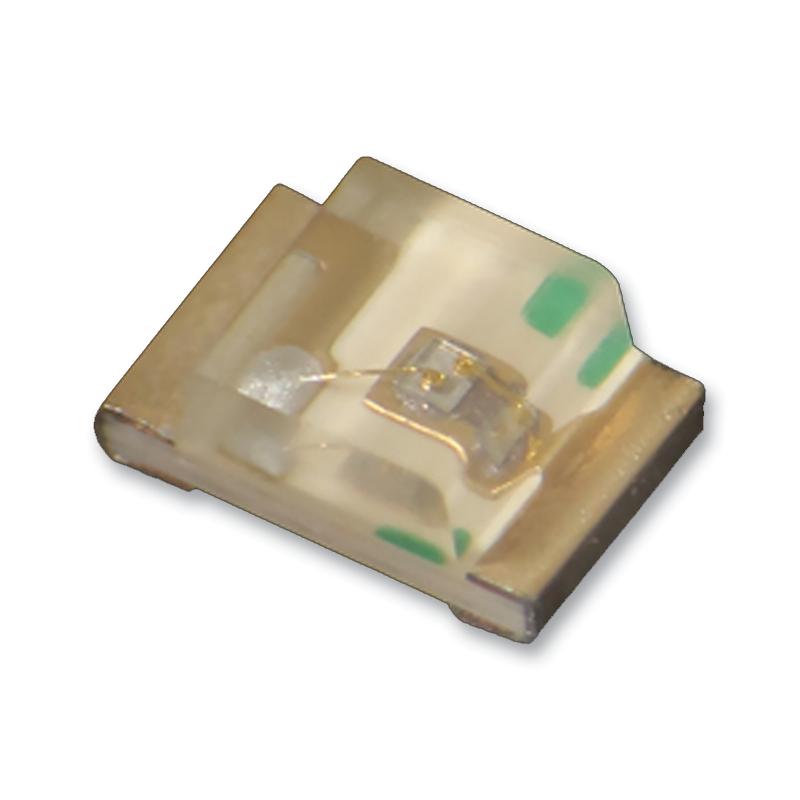

KINGBRIGHT KPT2012SECK Surface-mount LED
The KPT-2012SECK is a 2 x 1.25mm super bright orange SMD chip LED with a water-clear lens. It features an AlGaInP (on GaAs substrate) light-emitting diode chip, offering low power consumption and a wide viewing angle. This LED is ideal for backlighting and indicator applications, providing high luminous intensity and stable electrical performance. It is RoHS compliant, suitable for surface-mount technology, and recommended for reflow soldering with a profile of 245°C. The device operates at -40°C to +85°C and includes detailed packaging and soldering guidelines for optimal installation.
KINGBRIGHT KPT2012SECK Surface-mount LED Specifications:
- Dimensions: 2.0mm x 1.25mm x 0.75mm thickness
- Wavelength: 610 nm (peak), Dominant: 601 nm
- Spectral Line Half-width: 29 nm
- Forward Voltage: 24-25 V at 20mA
- Capacitance: 15 pF
- Peak Wavelength: 610 nm
- Operating Temperature: -40°C to +85°C
- Storage Temperature: -40°C to +85°C
- Power Dissipation: 75 mW
- DC Forward Current: 30 mA
- Peak Forward Current: 195 mA
- Reverse Voltage: 5 V
- Viewing Angle: 120°
- Package: 2000 pcs/reel
- RoHS Compliant, moisture sensitivity level 3
- Soldering Profile: Reflow at 245°C (+/-5°C), max 260°C
- Certifications: RoHS compliant
- Material: AlGaInP on GaAs substrate
- Moisture sensitivity level: Level 3
- Package Dimensions: reel 40.5 mm x 12 mm, tape 4.0 mm spacing
Buy the Buy Kingbright LED Part Number KPT-2012SECK Online
Purchase the Kingbright KPT-2012SECK high-brightness orange SMD LED online today. With wide viewing angles, low power consumption, and RoHS compliance, this LED offers exceptional performance for backlighting and indicator applications. Ideal for surface-mount technology, it features a water-clear lens and is recommended for reflow soldering with a profile of 245°C. Secure your supply of this reliable, durable, and high-intensity LED to enhance your electronic projects and manufacturing processes effortlessly.
Buy Kingbright KPT-2012SECK now and experience unmatched reliability and high brightness for indicator and backlighting solutions.
Frequently Asked Questions
Where can I buy KINGBRIGHT KPT2012SECK?
You can click on the BUY or RFQ button to purchase KPT2012SECK from an authorized KINGBRIGHT distributor.
How do I troubleshoot issues or seek technical support for part KPT2012SECK?
You can download the KPT2012SECK datasheet or visit the KINGBRIGHT website for support.
Who is the manufacturer of KPT2012SECK?
KINGBRIGHT
