KINGBRIGHT KPTB1612ESGC Chip LED
The KPTB-1612ESGC surface-mount chip LED lamp features a water-clear lens with high efficiency red and super bright green LEDs. Made from gallium arsenide phosphide on gallium phosphide and gallium phosphide respectively, this compact device is ideal for backlight and indicator functions. It offers low power consumption, a wide viewing angle of 120°, and operates efficiently from -40°C to 85°C. Suitable for various electronic applications, it is RoHS compliant with Level-3 moisture sensitivity, and can be mounted easily with recommended reflow soldering for reliable installation in industrial and electronic devices.
KINGBRIGHT KPTB1612ESGC Chip LED Specifications:
- Device Type: Surface-mount LED
- Lens Type: Water clear
- Color Options: High efficiency red, super bright green
- Material: Gallium arsenide phosphide on gallium phosphide, gallium phosphide
- Viewing Angle: 120°
- Peak Wavelength: 627 nm (red), 565 nm (green)
- Forward Voltage: 2.0-2.8V (red), 2.3-2.5V (green)
- Power Dissipation: 75 mw (red), 62.5 mw (green)
- DC Forward Current: 30 mA (red), 25 mA (green)
- Peak Forward Current: 160 mA (red), 140 mA (green)
- Reverse Voltage: 5V
- Operating Temperature Range: -40°C to +85°C
- Storage Temperature Range: -40°C to +85°C
- Moisture Sensitivity Level: Level 3
- RoHS Compliant
- Package Dimensions: 1.6mm x 1.25mm x 0.65mm
- Mounting: Surface-mount, suitable for reflow soldering
- Application: Backlighting, indicator lights, electronic signaling

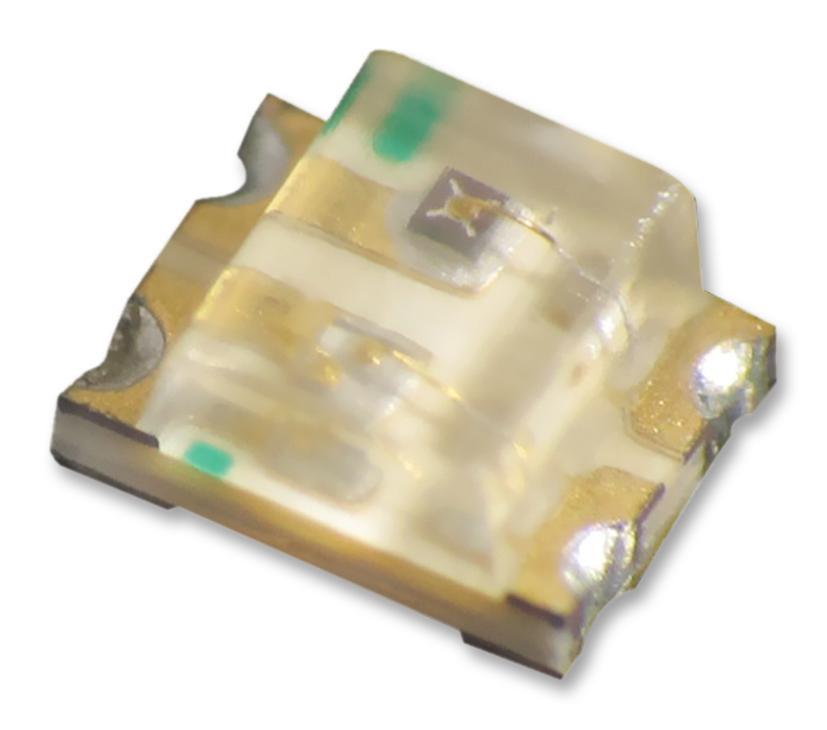

Buy the Buy Kingbright LED Part Number KPTB1612ESGC Online
Order the Kingbright KPTB1612ESGC LED chip today for high efficiency red and bright green illumination ideal for backlight and indicator applications. This surface-mount device features a water-clear lens, wide viewing angle, and operates efficiently within a temperature range of -40°C to 85°C. Its compact size of 1.6mm x 1.25mm x 0.65mm makes it perfect for space-constrained electronic devices. RoHS compliant and suitable for reflow soldering, it ensures reliable performance in industrial and consumer electronics. Purchase now for fast delivery and high-quality illumination solutions.
Get Kingbright LED KPTB1612ESGC today—designed for high efficiency and reliable indicator lighting in compact electronic devices.
Frequently Asked Questions
Where can I buy KINGBRIGHT KPTB1612ESGC?
You can click on the BUY or RFQ button to purchase KPTB1612ESGC from an authorized KINGBRIGHT distributor.
How do I troubleshoot issues or seek technical support for part KPTB1612ESGC?
You can download the KPTB1612ESGC datasheet or visit the KINGBRIGHT website for support.
Who is the manufacturer of KPTB1612ESGC?
KINGBRIGHT
