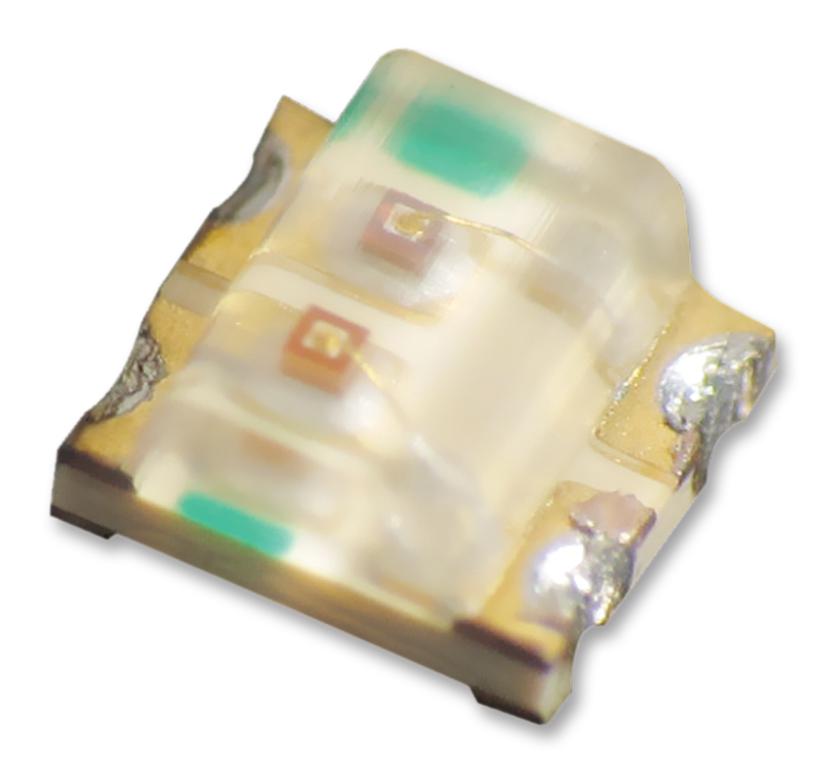

KINGBRIGHT KPTB1615ESGC Bi-Color LED Chip
The KPTB-1615ESGC is a surface mount chip LED lamp with a water-clear lens, featuring high-efficiency red LEDs with gallium arsenide phosphide on gallium phosphide, and super-bright green LEDs made with gallium phosphide. Designed for backlighting and indicators, it offers low power consumption, broad viewing angles, and moisture sensitivity level 3. Operating within -40°C to 85°C at 5V reverse voltage, it is suitable for industrial applications. This compact LED component is RoHS compliant and optimized for high brightness in a small footprint, ideal for various electronic indication and backlighting needs.
KINGBRIGHT KPTB1615ESGC Bi-Color LED Chip Specifications:
- Package Dimensions: 4.6 mm x 1.6 mm x 0.7 mm thickness
- Lens Type: Water Clear
- Wavelength: Red 620-625 nm, Green 565-575 nm
- Viewing Angle: 120°
- Forward Voltage: Red 2.0-2.5 V, Green 2.0-3.0 V
- Peak Wavelength: Red 45 nm, Green 2 nm spectral line half-width
- Power Dissipation: Red 75 mW, Green 62.5 mW
- DC Forward Current: Red 30 mA, Green 25 mA
- Peak Forward Current: Red 160 mA, Green 140 mA
- Reverse Voltage: 5V
- Operating Temperature Range: -40°C to +85°C
- Storage Temperature Range: -40°C to +85°C
- Moisture Sensitivity Level: Level 3
- RoHS compliant and tinned pads for improved solderability
- Reflow soldering profile recommended at 245°C with a maximum of 260°C
Buy the Kingbright Series KPTB Series Bi-Color LED: KPTB-1615ESGC
Order the Kingbright KPTB-1615ESGC bi-color LED chip online today to enhance your electronic projects with high-efficiency red and super-bright green LEDs. Compact and versatile, this LED is ideal for backlighting, indicators, and signage in industrial applications. Its water-clear lens ensures excellent light distribution with a 120° viewing angle. RoHS compliant and designed for easy reflow soldering at recommended profiles, this component guarantees reliability and long-term performance for your manufacturing needs. Purchase now to benefit from fast shipping and quality assurance.
Buy Kingbright KPTB-1615ESGC now and experience unmatched reliability and performance with high brightness bi-color LEDs suitable for industrial and indicator use.
Frequently Asked Questions
Where can I buy KINGBRIGHT KPTB1615ESGC?
You can click on the BUY or RFQ button to purchase KPTB1615ESGC from an authorized KINGBRIGHT distributor.
How do I troubleshoot issues or seek technical support for part KPTB1615ESGC?
You can download the KPTB1615ESGC datasheet or visit the KINGBRIGHT website for support.
Who is the manufacturer of KPTB1615ESGC?
KINGBRIGHT
