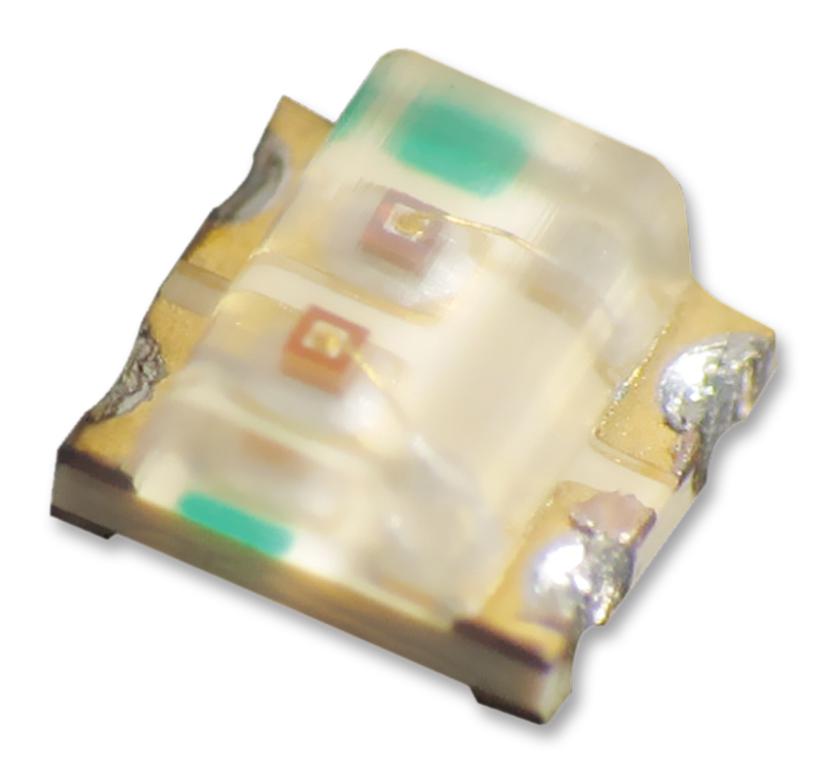

KINGBRIGHT KPTB1615SYKCGKC LED Chip
The KPTB-1615SYKCGKC LED chip is a surface-mounted component with a water-clear lens, producing super bright yellow and green light through AlGaInP chips on a GaAs substrate. It is ideal for backlighting and indicator functions, offering low power consumption, high luminous intensity, and operating within a wide temperature range of -40°C to 85°C. The device features a moisture sensitivity level 3 rating, operates at 5V reverse voltage, and is designed for industrial and electronic applications. It comes in a 2000pcs reel, suitable for automated manufacturing and high-volume production, with recommended reflow soldering profiles for optimal assembly.
KINGBRIGHT KPTB1615SYKCGKC LED Chip Specifications:
- Package: 2000pcs per reel
- Lens Type: Water Clear
- Maximum Forward Voltage: 2.0 V for Green, 2.25 V for Yellow at 20mA
- Peak Wavelength: 590 nm for Yellow, 570 nm for Green
- Spectral Line Half-width: 20 nm for both colors
- Luminous Intensity: 120° viewing angle with typical luminous intensity of 50 mcd (Green) and 120 mcd (Yellow)
- Operating Temperature: -40°C to +85°C
- Reverse Voltage: 5V
- Peak Forward Current: 150-175mA (Pulse)
- DC Forward Current: 30mA
- Power Dissipation: 75mW
- Moisture Sensitivity Level: Level 3
- Soldering: Reflow soldering recommended, temperature profile max 260°C
- Dimensions: 1.6mm x 1.5mm x 0.7mm thickness
- Application: Backlighting, indicators, industrial electronic devices
Buy the Kingbright Series 1615 LED: KPTB1615SYKCGKC
Purchase the Kingbright Series 1615 LED chip with water-clear lens today and enhance your electronic projects with bright yellow and green illumination. Designed for backlighting and indicators, this surface-mount LED offers high luminous intensity, low power consumption, and reliable performance within a temperature range of -40°C to 85°C. Supplied in a 2000pcs reel, it suits automated manufacturing and high-volume assembly. Easy to solder with recommended reflow profiles, ensuring long-lasting durability and efficient operation in industrial applications. Order now for fast online delivery.
Order your Kingbright Series 1615 LED today and give your projects the dependable quality they deserve.
Frequently Asked Questions
Where can I buy KINGBRIGHT KPTB1615SYKCGKC?
You can click on the BUY or RFQ button to purchase KPTB1615SYKCGKC from an authorized KINGBRIGHT distributor.
How do I troubleshoot issues or seek technical support for part KPTB1615SYKCGKC?
You can download the KPTB1615SYKCGKC datasheet or visit the KINGBRIGHT website for support.
Who is the manufacturer of KPTB1615SYKCGKC?
KINGBRIGHT
