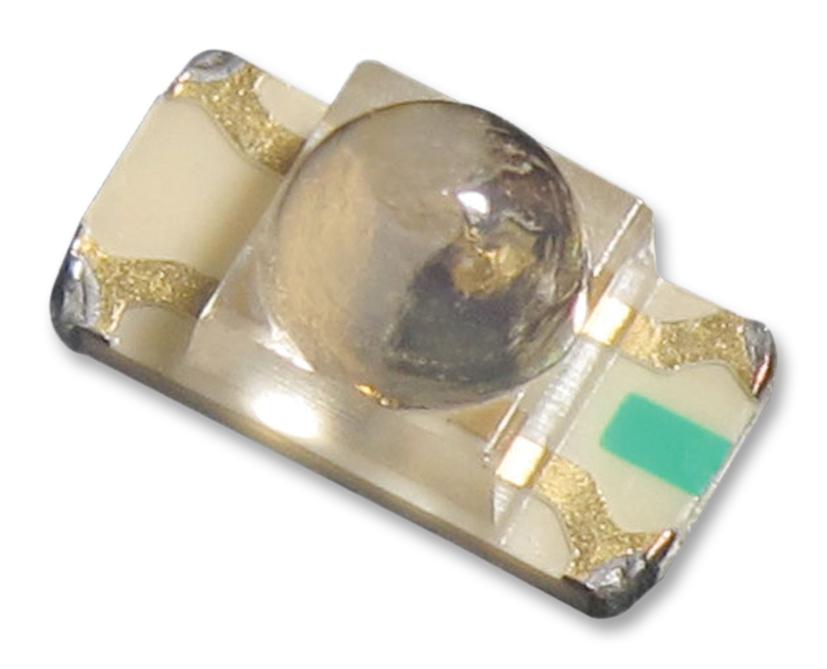

KINGBRIGHT KPTBD3216SURKCGKC Surface-mount LED lamp
The KPTBD-3216SURKCGKC is an SMD chip LED lamp with a water-clear lens, featuring hyper red and green light sources made with AlGaInP on GaAs substrates. Designed for backlight and indicator use, it offers low power consumption, operates at a forward voltage of around 38V for hyper red and various voltages for green, and has an operating temperature range of -40°C to 85°C. This RoHS-compliant device fits into demanding industrial environments, providing reliable performance with a moisture sensitivity level of 3, and includes detailed soldering and mounting specifications for optimal installation.
KINGBRIGHT KPTBD3216SURKCGKC Surface-mount LED lamp Specifications:
- Package Dimensions: 3.2mm x 1.6mm, thickness 1.8mm
- Material: AF GalnP on GaAs substrate (Hyper Red), AlGalnP on GaAs substrate (Green)
- Operating Temperature: -40°C to +85°C
- Power Dissipation: 75mW
- DC Forward Current: 30mA
- Peak Forward Current: 185mA (Hyper Red), 150mA (Green)
- Reverse Voltage: 5V
- Wavelength: Hyper Red 630-645 nm, Green (not specified but in typical range)
- Luminous Intensity: Hyper Red 120-250 mcd, Green 120-250 mcd at 20mA
- Moisture Sensitivity Level: 3
- RoHS Compliant
- Mounting Type: Surface-mount, with recommended reflow profile
- Soldering: Reflow soldering with profile 245°C (+/-5°C), max 260°C, two reflow cycles max
Buy the Kingbright KPTBD3216SURKCGKC – Reliable LED Indicator for Industrial Applications
Experience the reliability and efficiency of the Kingbright surface-mount LED lamp suitable for backlight and indicator applications across industries. Its hyper red and green versions offer excellent brightness with low power consumption and RoHS compliance. Designed for easy installation with recommended reflow soldering profiles, this LED ensures durability in demanding environments. Available in reels for easy bulk purchasing, it is ideal for industrial, automotive, and electronic device manufacturers seeking quality and performance in their lighting components.
Order your Kingbright SeriesKPTBD3216SURKCGKC high-brightness LED today and give your projects the dependable quality they deserve.
Frequently Asked Questions
Where can I buy KINGBRIGHT KPTBD3216SURKCGKC?
You can click on the BUY or RFQ button to purchase KPTBD3216SURKCGKC from an authorized KINGBRIGHT distributor.
How do I troubleshoot issues or seek technical support for part KPTBD3216SURKCGKC?
You can download the KPTBD3216SURKCGKC datasheet or visit the KINGBRIGHT website for support.
Who is the manufacturer of KPTBD3216SURKCGKC?
KINGBRIGHT
