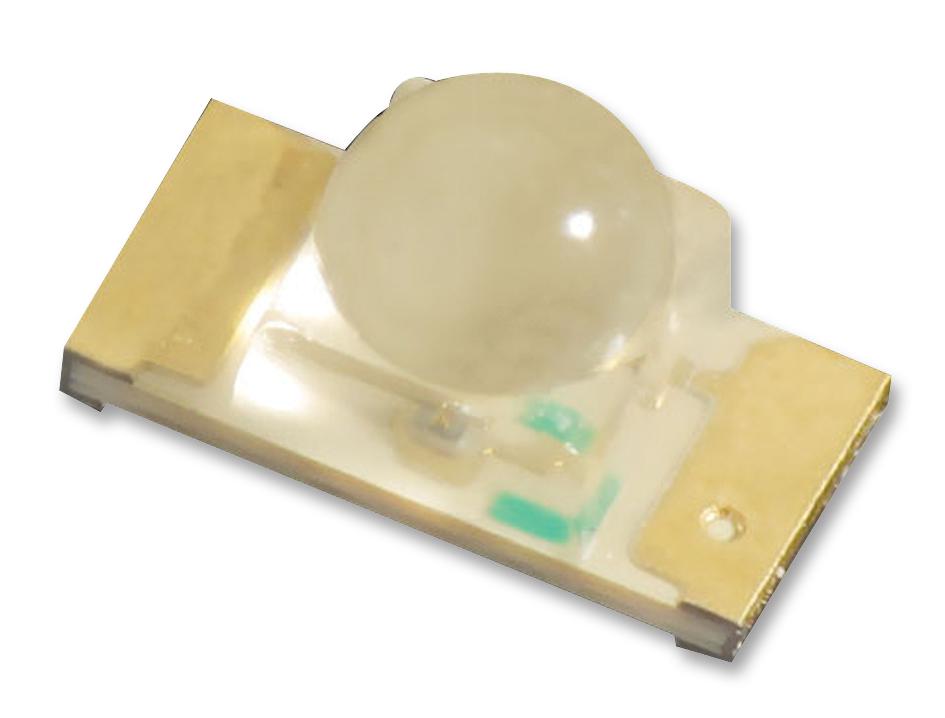

KINGBRIGHT KPTD3216CGCK01 Green SMD Chip LED
The KPTD-3216CGCK-01 is a green SMD Chip LED measuring 3.2 x 1.6 mm with a water-clear lens. Made with AlGaInP on GaAs substrate, it offers low power consumption, high efficiency, and a 120° viewing angle. Suitable for backlighting, indicators, and signage, it operates at a forward voltage of approximately 2.0 V at 20 mA and has a peak wavelength of 574 nm. The device is RoHS compliant, features a moisture sensitivity level 3, and is ideal for professional industrial lighting applications. It withstands temperatures from -40°C to +85°C and is packaged in reels of 2000 pieces.
KINGBRIGHT KPTD3216CGCK01 Green SMD Chip LED Specifications:
- Dimensions: 3.2mm x 1.6mm x 0.6mm
- Lens Type: Water Clear
- Material: AlGaInP on GaAs substrate
- Peak Wavelength: 574 nm
- Dominant Wavelength: 570 nm
- Spectral Line Half-width: 20 nm
- Forward Voltage: 2.4V at 20mA
- Reverse Current: 10 µA at 5V
- Power Dissipation: 75 mW
- DC Forward Current: 30 mA
- Peak Forward Current: 150 mA
- Operating Temperature: -40°C to +85°C
- Storage Temperature: -40°C to +85°C
- Moisture Sensitivity Level: 3
- Package: Reel of 2000 pcs
- RoHS Compliant
- Viewing Angle: 120°
Buy the Kingbright KPTD-3216CGCK-01 – Reliable Green LED for Industrial Applications
Purchase the Kingbright Green SMD Chip LED KPTD-3216CGCK-01 online now to enhance your lighting and indicator projects. Featuring a 3.2x1.6mm size, water-clear lens, and low power consumption, it provides bright, efficient lighting for industrial and signage applications. The LED operates at a forward voltage of approximately 2.4V at 20mA, with a wide 120° viewing angle. RoHS compliant and packaged in reels of 2000, it ensures easy handling and reliable performance for a variety of electronic projects. Order today to ensure fast delivery and professional-grade lighting solutions.
Order your Kingbright Series KPTD-3216CGCK-01 today and give your projects the dependable quality they deserve with this low power, high-efficiency indicator LED.
Frequently Asked Questions
Where can I buy KINGBRIGHT KPTD3216CGCK01?
You can click on the BUY or RFQ button to purchase KPTD3216CGCK01 from an authorized KINGBRIGHT distributor.
How do I troubleshoot issues or seek technical support for part KPTD3216CGCK01?
You can download the KPTD3216CGCK01 datasheet or visit the KINGBRIGHT website for support.
Who is the manufacturer of KPTD3216CGCK01?
KINGBRIGHT
