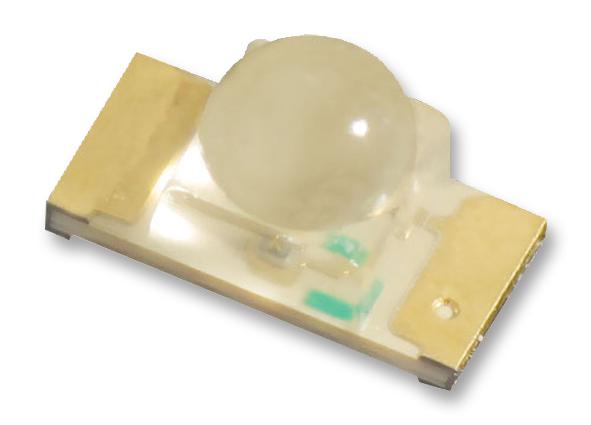

KINGBRIGHT KPTD3216SRCJ4 Super Bright Red LED
The KPTD-3216SRC-J4 is a 3.2 x 1.6 mm super bright red SMD chip LED with a water-clear lens, made from AlGaInP on silicon substrate. It provides high luminous intensity, low power consumption, and excellent visibility, making it ideal for backlights and indicators. This RoHS-compliant LED features a 50° viewing angle, peak wavelength of 660 nm, and operates at up to 30 mA DC forward current with a maximum power dissipation of 75 mW. Suitable for electronic displays and signaling in various industrial and consumer electronics applications.
KINGBRIGHT KPTD3216SRCJ4 Super Bright Red LED Specifications:
- Dimensions: 3.2 mm x 1.6 mm x 0.6 mm thick
- Lens Type: Water Clear
- Viewing Angle: 50°
- Peak Wavelength: 660 nm
- Dominant Wavelength: 640 nm
- Spectral Line Half-width: 20 nm
- Capacitance: 45 pF
- Forward Voltage: 2.0 - 2.5 V at 20 mA
- Reverse Current: 10 μA at 5 V
- Maximum Power Dissipation: 75 mW
- DC Forward Current: 30 mA
- Peak Forward Current: 150 mA (1/10 duty cycle)
- Operating Temperature Range: -40°C to +85°C
- Storage Temperature Range: -40°C to +85°C
- Moisture Sensitivity Level: 3
- RoHS Compliant
- Package: Tape of 2000 pcs per reel
Buy the Kingbright Series KPTD-3216SRC-J4 Super Bright Red LED: KPTD3216SRCJ4
Purchase the Kingbright Series KPTD-3216SRC-J4 super bright red SMD LED online to ensure fast delivery for your electronics projects. Designed for backlighting and indicators, this 3.2x1.6 mm water-clear lens LED offers exceptional brightness and efficiency. Its robust construction supports high current operation while maintaining low power consumption. Featuring RoHS compliance, moisture resistance level 3, and a 50° viewing angle, it is ideal for both industrial and consumer electronic applications. Order now to upgrade your signaling and illumination solutions easily and reliably.
Order your Kingbright Series KPTD-3216SRC-J4 super bright red LED today and enhance your indicator or backlight projects with reliable, high-quality illumination.
Frequently Asked Questions
Where can I buy KINGBRIGHT KPTD3216SRCJ4?
You can click on the BUY or RFQ button to purchase KPTD3216SRCJ4 from an authorized KINGBRIGHT distributor.
How do I troubleshoot issues or seek technical support for part KPTD3216SRCJ4?
You can download the KPTD3216SRCJ4 datasheet or visit the KINGBRIGHT website for support.
Who is the manufacturer of KPTD3216SRCJ4?
KINGBRIGHT
