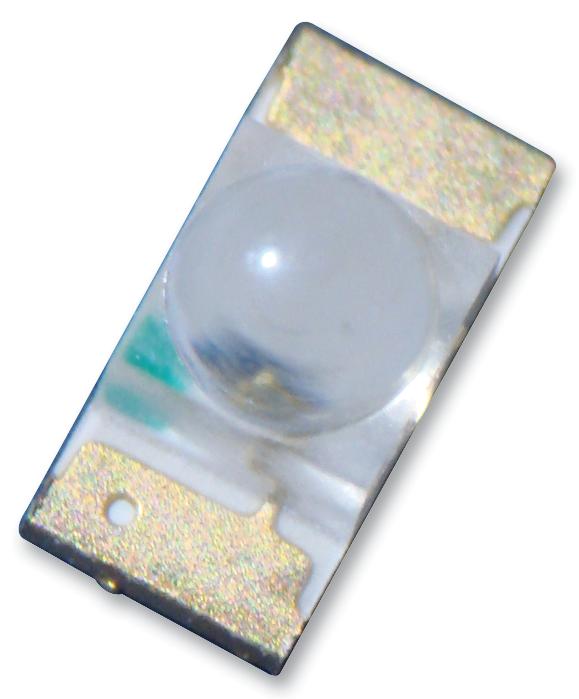

KINGBRIGHT KPTD3216SURCK Hyper Red SMD LED
The KPTD-3216SURCK is a 3.2 x 1.6 mm hyper red SMD chip LED with a water-clear lens, manufactured using AlGaInP technology on GaAs substrate. It offers high luminous efficiency, low power consumption, and a typical forward voltage of 1.95V at 20mA. The device is RoHS compliant, suitable for backlighting and indicator applications, and operates at temperatures from -40°C to +85°C. Its compact size and reliable performance make it ideal for electronic signaling, LED lighting, and panel indicators in various electronic devices.
KINGBRIGHT KPTD3216SURCK Hyper Red SMD LED Specifications:
- Size: 3.2mm x 1.6mm, thickness 1.8mm
- Luminous Intensity: 700 to 1500 mcd at 20mA
- Wavelength: Peak 650 nm, Dominant 630 nm
- Spectral Line Half-width: 28 nm
- Capacitance: 35 pF
- Forward Voltage: 1.95V at 20mA
- Reverse Current: 10 μA at 5V
- Power Dissipation: 75 mW
- DC Forward Current: 30 mA
- Peak Forward Current: 185 mA
- Operating Temperature: -40°C to +85°C
- Storage Temperature: -40°C to +85°C
- Water-clear lens, RoHS compliant, moisture sensitivity level 3
- Package: Reel of 2000 pcs
- Recommended Reflow Soldering Profile: Max temperature 260°C, profile at 245°C
Buy the Kingbright Series Hyper Red LED: KPTD3216SURCK
Order the Hyper Red SMD LED now at our online store and enjoy fast delivery, competitive pricing, and superior quality. Perfect for indicator lights, backlighting, and electronic signaling, this compact and RoHS-compliant LED offers excellent luminous intensity and efficiency. Ideal for designers and engineers seeking reliable performance in LED lighting applications. Shop today and boost your project with this high-quality indicator component, ensuring your devices are visible and energy-efficient with easy online purchasing options.
Buy Kingbright KPTD3216SURCK now and experience unmatched reliability and high-efficiency LED backlighting solutions.
Frequently Asked Questions
Where can I buy KINGBRIGHT KPTD3216SURCK?
You can click on the BUY or RFQ button to purchase KPTD3216SURCK from an authorized KINGBRIGHT distributor.
How do I troubleshoot issues or seek technical support for part KPTD3216SURCK?
You can download the KPTD3216SURCK datasheet or visit the KINGBRIGHT website for support.
Who is the manufacturer of KPTD3216SURCK?
KINGBRIGHT
