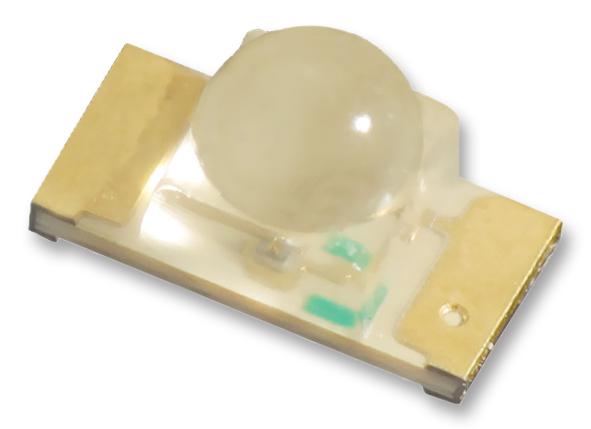

KINGBRIGHT KPTD3216ZGCK Green SMD LED
The KPTD-3216ZGCK is a high-brightness green surface-mount LED with a water-clear lens, made with InGaN on sapphire. It provides low power consumption, a wide 35° viewing angle, and is suitable for backlight and indicator applications in signaling and industrial environments. The LED operates at a forward voltage of 3.3 V, with a peak wavelength of 515 nm and a dominant wavelength of 525 nm. It features RoHS compliance, a maximum power dissipation of 102.5 mW, and an operating temperature range from -40°C to +85°C, ensuring reliable performance in diverse conditions.
KINGBRIGHT KPTD3216ZGCK Green SMD LED Specifications:
- Lens Type: Water Clear
- Device: InGaN Green LED
- Peak Wavelength: 515 nm
- Dominant Wavelength: 525 nm
- Spectral Line Half-width: 35 nm
- Forward Voltage: 3.3 V
- Reverse Current: 50 uA
- Peak Forward Current: 150 mA
- DC Forward Current: 25 mA
- Power Dissipation: 102.5 mW
- Operating Temperature: -40°C to +85°C
- Storage Temperature: -40°C to +85°C
- Viewing Angle: 35°
- Color: Green
- Package: SMT, 2000 pcs per reel
- RoHS Compliant
Buy the Kingbright Series LED: KPTD3216ZGCK High-Brightness Green SMD Chip LED
Enhance your project with the high-brightness green SMD LED, featuring low power consumption and a water-clear lens for excellent visibility. Ideal for backlighting and indicator applications in industrial, signaling, and electronic devices. Operates at a forward voltage of 3.3 V, with a peak wavelength of 515 nm and a wide viewing angle of 35°, ensuring clear signal display. Compact, RoHS compliant, and suitable for reflow soldering, it offers dependable performance in diverse environmental conditions and is available in reels for easy handling and assembly.
Buy Kingbright KPTD3216ZGCK high-brightness green SMD LED now and ensure reliable, energy-efficient backlighting and indicator solutions.
Frequently Asked Questions
Where can I buy KINGBRIGHT KPTD3216ZGCK?
You can click on the BUY or RFQ button to purchase KPTD3216ZGCK from an authorized KINGBRIGHT distributor.
How do I troubleshoot issues or seek technical support for part KPTD3216ZGCK?
You can download the KPTD3216ZGCK datasheet or visit the KINGBRIGHT website for support.
Who is the manufacturer of KPTD3216ZGCK?
KINGBRIGHT
