KINGBRIGHT KPTL3216CGCK01 SMD Chip LED
The KPTL-3216CGCK-01 is a green SMD chip LED measuring 3.2 x 1.6 mm with a 1.1 mm thickness. It features an AlGaInP light source on a GaAs substrate, providing efficient low power consumption. The device is suitable for backlighting and indicator applications, offering a water-clear lens and polarity marking. It has a moisture sensitivity level 3, can be reverse mounted, and complies with RoHS standards. Its electrical and optical characteristics include a peak wavelength of 574 nm, forward voltage around 24-25 V, and a maximum power dissipation of 75 mW, operating safely at currents up to 30 mA within temperature ranges from -40°C to +85°C.
KINGBRIGHT KPTL3216CGCK01 SMD Chip LED Specifications:
- Dimensions: 3.2mm x 1.6mm x 1.1mm thickness
- Color: Green with water-clear lens
- Peak Wavelength: 574 nm
- Dominant Wavelength: 570 nm
- Spectral Line Half-width: 20 nm
- Forward Voltage: 24-25 V at 20mA
- Reverse Current: 10 μA at 5V
- Power Dissipation: 75 mW
- Maximum DC Forward Current: 30 mA
- Peak Forward Current: 150 mA
- Operating Temperature: -40°C to +85°C
- Storage Temperature: -40°C to +85°C
- Moisture Sensitivity Level: 3
- RoHS Compliant
- Package: 2000 pcs per reel
- Mounting: Single surface, suitable for reflow soldering at a recommended profile of 245°C
- Angles: 70° typical viewing angle

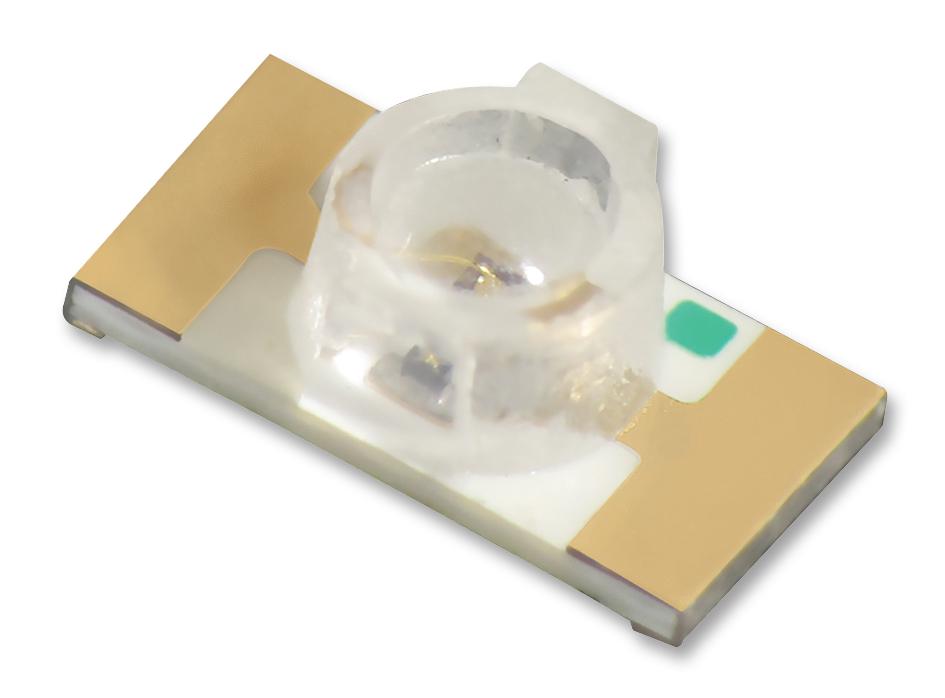

Buy the Buy Kingbright LED Part Number KPTL-3216CGCK-01 Online
Purchase the Kingbright SeriesKPTL-3216CGCK-01 green SMD chip LED online today to ensure quick delivery for your electronic lighting and indicator needs. This efficient water-clear lens LED provides bright, reliable illumination with low power consumption, ideal for backlighting, signage, and display applications. It features a compact 3.2x1.6mm size, RoHS compliance, moisture sensitivity level 3, and is suitable for reflow soldering. Elevate your project quality with Kingbright’s trusted LED technology—order now to experience immediate benefits in durability and performance.
Order your Kingbright SeriesKPTL-3216CGCK-01 green LED today and enhance your backlighting and indicator projects with reliable, low-power illumination.
Frequently Asked Questions
Where can I buy KINGBRIGHT KPTL3216CGCK01?
You can click on the BUY or RFQ button to purchase KPTL3216CGCK01 from an authorized KINGBRIGHT distributor.
How do I troubleshoot issues or seek technical support for part KPTL3216CGCK01?
You can download the KPTL3216CGCK01 datasheet or visit the KINGBRIGHT website for support.
Who is the manufacturer of KPTL3216CGCK01?
KINGBRIGHT
