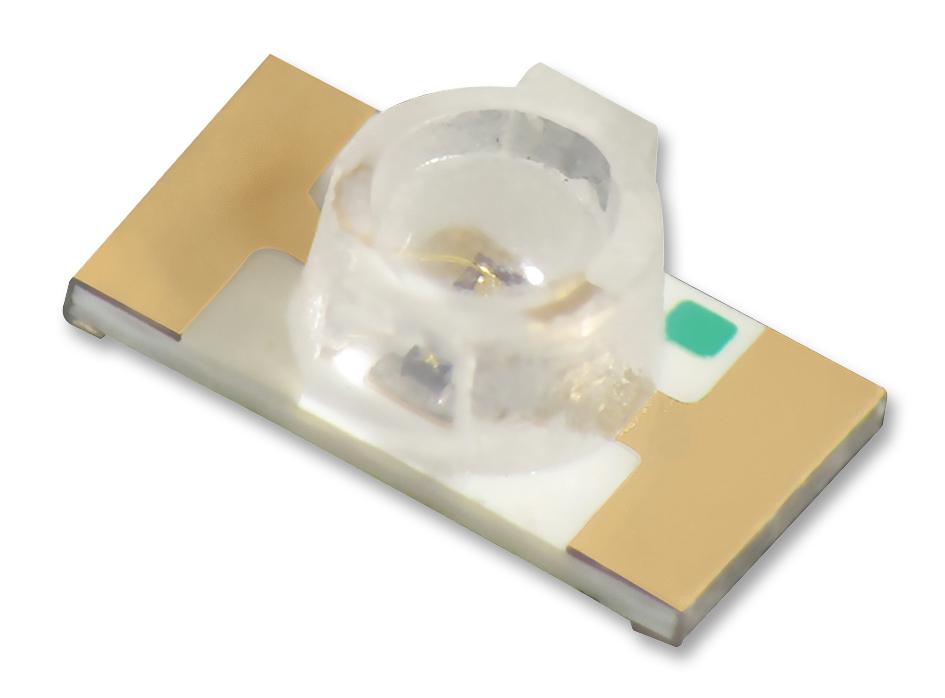

KINGBRIGHT KPTL3216QBCD01 Blue SMD Chip LED
The KPTL-3216QBC-D-01 is a compact 3.2 x 1.6mm SMD blue chip LED featuring an InGaN diode with a water-clear lens. It provides low power consumption and is ideal for backlight and indicator applications, suited for LED lighting and signaling needs. The device is RoHS compliant, moisture-sensitive level 3, and designed for surface mounting with a polarity mark indicated. Handling requires electrostatic precautions, and it operates reliably between -40°C and +85°C. This LED delivers excellent optical performance with a 70° viewing angle and a luminous flux suitable for various signaling and illumination uses.
KINGBRIGHT KPTL3216QBCD01 Blue SMD Chip LED Specifications:
- Device Type: InGaN blue SMD chip LED
- Dimensions: 3.2mm x 1.6mm x 1.1mm thickness
- Lens Type: Water clear
- Viewing Angle: 70°
- Luminous Intensity: Min. 80 mcd, typical 250 mcd at 20mA
- Peak Wavelength: 468 nm (typ.), 460 nm (min), 470 nm (max)
- Forward Voltage: 3.3V at 20mA
- Reverse Current: 50 μA at VR=5V
- Max Power Dissipation: 120 mW
- Operating Temperature Range: -40°C to +85°C
- Soldering Method: Reflow recommended, profile maximum 260°C
- Moisture Sensitivity Level: 3
- RoHS Compliant
- Electrical/Optical Tolerance: ±15%
Buy the Kingbright Series LED Indicator: KPTL-3216QBC-D-01
Discover the high-quality Kingbright Blue SMD Chip LED designed for reliable backlighting and indicator lighting. Its compact size of 3.2 by 1.6mm, water-clear lens, and low power consumption make it ideal for a wide range of electronic signaling and illumination applications. Perfect for surface-mount configurations, it offers excellent optical output with a 70° viewing angle, ensuring clarity and effective visibility. RoHS compliant and suitable for automated assembly, purchase this LED online today for efficient, durable lighting solutions.
Buy Kingbright KPTL-3216QBC-D-01 now and experience unmatched reliability and performance for your LED lighting projects.
Frequently Asked Questions
Where can I buy KINGBRIGHT KPTL3216QBCD01?
You can click on the BUY or RFQ button to purchase KPTL3216QBCD01 from an authorized KINGBRIGHT distributor.
How do I troubleshoot issues or seek technical support for part KPTL3216QBCD01?
You can download the KPTL3216QBCD01 datasheet or visit the KINGBRIGHT website for support.
Who is the manufacturer of KPTL3216QBCD01?
KINGBRIGHT
