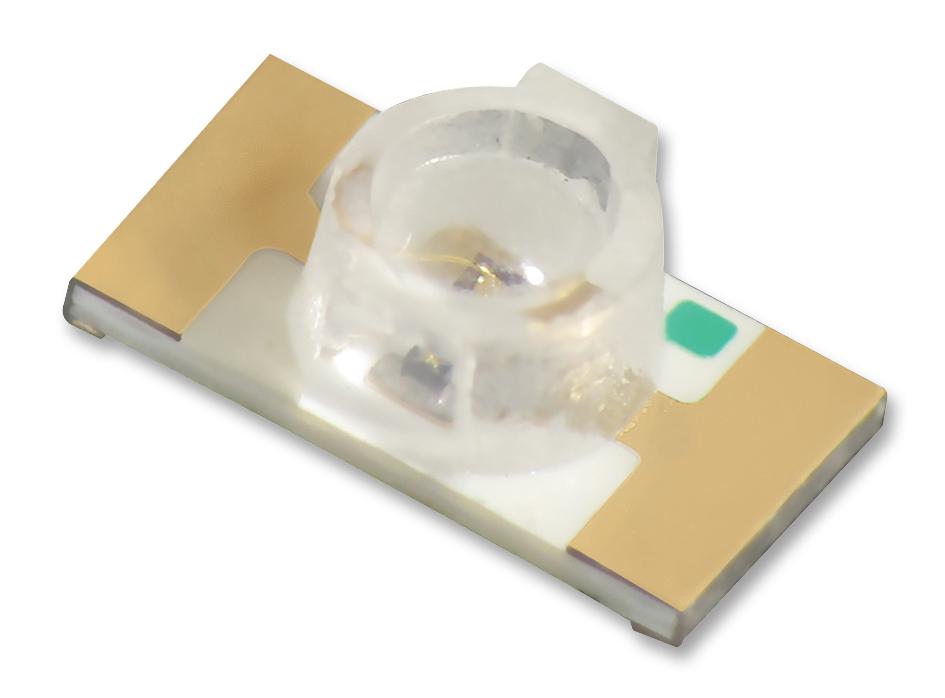

KINGBRIGHT KPTL3216SGC01 Surface-mount green LED
The KPTL-3216SGC-01 is a 3.2 x 1.6 mm surface-mount LED lamp featuring a water-clear lens and emitting a bright green light. It employs gallium phosphide technology for vibrant illumination, with low power consumption suitable for backlighting and indicator applications. Its compact size and high brightness make it ideal for LED lighting and signaling systems, providing reliable performance in various electronic devices. Market demand has extended lead times, and delivery dates may fluctuate. This rohs-compliant LED ensures efficient performance and environmental safety in numerous applications.
KINGBRIGHT KPTL3216SGC01 Surface-mount green LED Specifications:
- Dimensions: 3.2mm x 1.6mm x 1.1mm thickness
- Wavelength: 565 nm (peak), 568 nm (dominant)
- Spectral Line Half-width: 30 nm
- Forward Voltage: 22-25 V at 20mA
- Reverse Current: 10 μA at 5V
- Luminous Intensity: 8 to 18 mcd at 20mA
- Viewing Angle: 70°
- Power Dissipation: 62.5 mW
- DC Forward Current: 25 mA
- Peak Forward Current: 140 mA
- Operating Temperature: -40°C to +85°C
- Storage Temperature: -40°C to +85°C
- RoHS Compliant
- Package: 2000 pcs/reel
- Polarity Mark: Yes
- Soldering Profile: Reflow recommended at 245°C (+/-5°C), maximum 260°C
- Moisture Sensitivity Level: 3
Buy the Kingbright Series LED: KPTL-3216SGC01 Bright Green Surface-Mount LED
Order the Kingbright KPTL-3216SGC01 bright green LED online today to enhance your electronic projects. This compact 3.2x1.6mm size LED offers high brightness, low power consumption, and reliable operation. Perfect for backlighting, indicators, and signaling systems, it features a water-clear lens and gallium phosphide technology for superior vibrancy and efficiency. With a 70° viewing angle and RoHS compliance, this LED provides excellent performance in various electronic devices. Fast online ordering ensures timely delivery for your manufacturing or repair needs.
Buy Kingbright KPTL-3216SGC01 now and experience unmatched reliability and performance with this efficient, compact LED for backlight and indicator applications.
Frequently Asked Questions
Where can I buy KINGBRIGHT KPTL3216SGC01?
You can click on the BUY or RFQ button to purchase KPTL3216SGC01 from an authorized KINGBRIGHT distributor.
How do I troubleshoot issues or seek technical support for part KPTL3216SGC01?
You can download the KPTL3216SGC01 datasheet or visit the KINGBRIGHT website for support.
Who is the manufacturer of KPTL3216SGC01?
KINGBRIGHT
