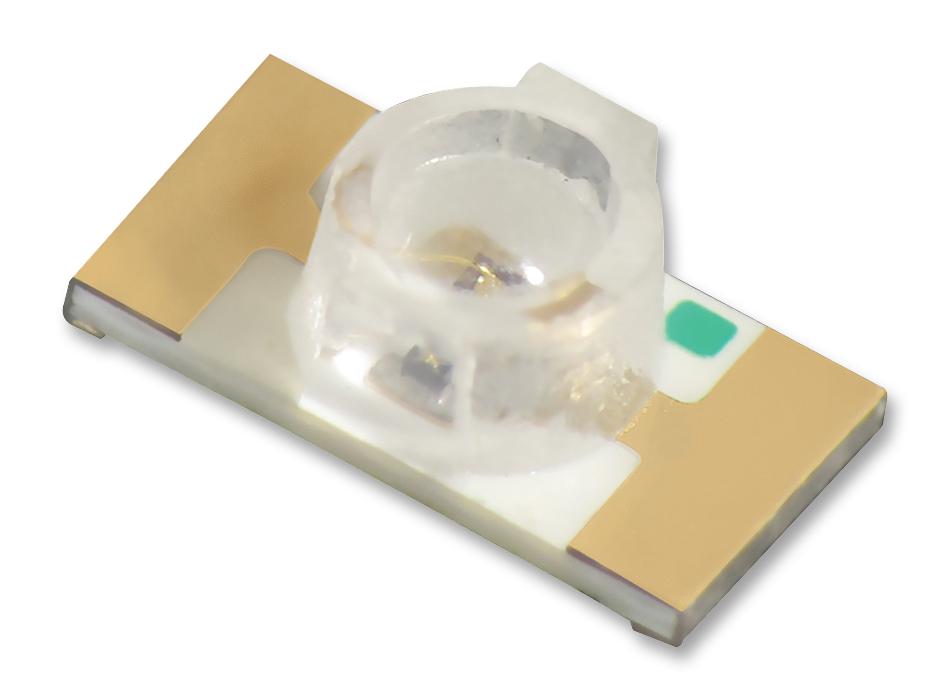

KINGBRIGHT KPTL3216SURCK Hyper Red SMD LED
The KPTL-3216SURCK is a compact 3.2 x 1.6 mm hyper red SMD chip LED with a water-clear lens, made with AlGaInP on GaAs substrate. It offers a bright red emission at 645 nm wavelength, low power consumption, and a typical forward voltage of 1.95 V at 20 mA. Suitable for backlighting, indicator lights, and signaling, it operates from -40°C to +85°C and features a water-clear lens with a 70° viewing angle. RoHS compliant, it features a peak current of 185 mA and a power dissipation of 75 mW, ensuring reliable performance with minimal heat generation.
KINGBRIGHT KPTL3216SURCK Hyper Red SMD LED Specifications:
- Dimensions: 3.2mm x 1.6mm x 1.1mm thickness
- Wavelength: 645 nm (typical), dominant wavelength 630 nm
- Forward Voltage: 1.95 V (typical) at 20 mA
- Peak Forward Current: 185 mA
- DC Forward Current: 30 mA
- Power dissipation: 75 mW
- Viewing angle: 70°
- Operating Temperature: -40°C to +85°C
- Reverse Voltage: 5 V
- Capacitance: 35 pF
- Spectral Line Half-width: 28 nm
- RoHS compliant and moisture level: level 3
- Soldering: Reflow recommended with a profile of max 260°C for 10 seconds
- Package: 2000 pcs per reel, tape dimension approx 127 mm long
Buy the Kingbright Series LED: Hyper Red 3.2x1.6mm SMD Light: KPTL-3216SURCK
Enhance your electronic projects with the compact and bright Hyper Red SMD LED. Designed for efficiency and durability, this 3.2x1.6mm LED features low power consumption, a water-clear lens, and a wide operating temperature range. Perfect for backlighting, indicators, and signaling, it provides consistent performance across various environments. Easy to solder with recommended reflow profiles, it ensures reliable operation and long lifespan. Purchase online today to simplify assembly and improve your product’s visual appeal with this high-quality, RoHS-compliant LED.
Buy Kingbright KPTL-3216SURCK now and experience unmatched reliability and performance in LED backlighting and indicator applications.
Frequently Asked Questions
Where can I buy KINGBRIGHT KPTL3216SURCK?
You can click on the BUY or RFQ button to purchase KPTL3216SURCK from an authorized KINGBRIGHT distributor.
How do I troubleshoot issues or seek technical support for part KPTL3216SURCK?
You can download the KPTL3216SURCK datasheet or visit the KINGBRIGHT website for support.
Who is the manufacturer of KPTL3216SURCK?
KINGBRIGHT
