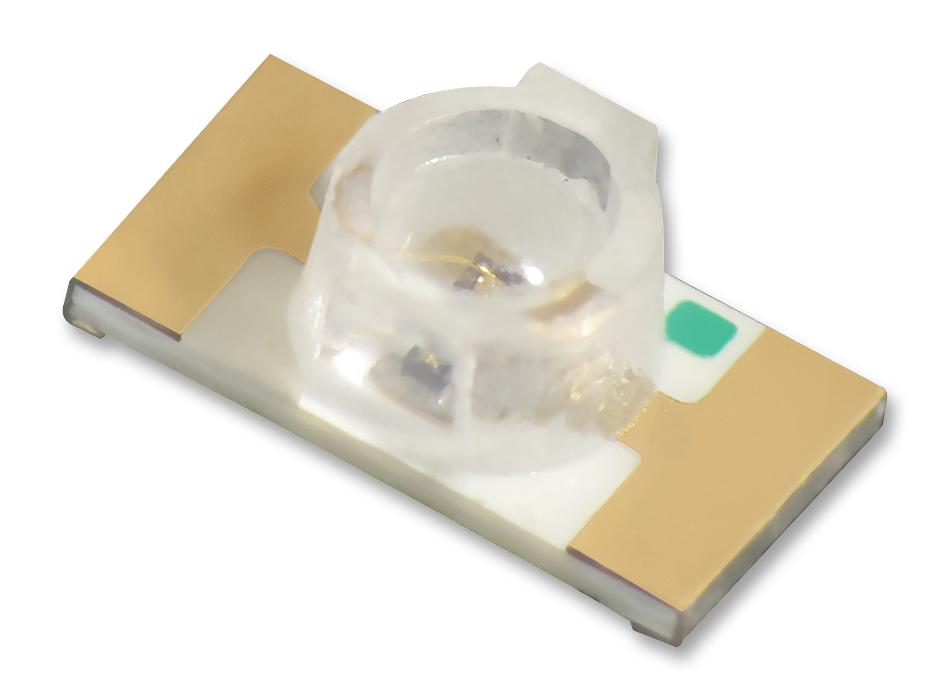

KINGBRIGHT KPTL3216SYCK Super Bright Yellow LED
The KPTL-3216SYCK is a 3.2 x 1.6mm super bright yellow SMD chip LED lamp featuring a water-clear lens. Built with AlGaInP on GaAs substrate, it offers high brightness, low power consumption, and is ideal for backlighting and indicator applications. It is RoHS compliant, has a moisture sensitivity level 3, and can operate at temperatures from -40°C to +85°C. The LED's peak wavelength is 590 nm, with a forward voltage of approximately 2.1V at 20mA. It is suitable for various electronic lighting and signaling functions.
KINGBRIGHT KPTL3216SYCK Super Bright Yellow LED Specifications:
- Dimensions: 3.2mm x 1.6mm x 1.1mm thickness
- Lens Type: Water Clear
- Peak Wavelength: 590 nm
- Dominant Wavelength: 590 nm
- Spectral Line Half-width: 20 nm
- Capacitance: 20 pF
- Forward Voltage: 2.1V at 20mA
- Reverse Current: 10 µA at 5V
- Maximum Power Dissipation: 75 mW
- DC Forward Current: 30 mA, Peak 175 mA
- Operating Temperature: -40°C to +85°C
- Storage Temperature: -40°C to +85°C
- Moisture Sensitivity Level: 3
- Package Quantity: 2000 pcs per reel
- RoHS Compliant
- Soldering Method: Reflow recommended, max temperature 260°C, profile at 245°C
Buy the Kingbright Series Super Bright Yellow LED: KPTL-3216SYCK
Order the Kingbright KPTL-3216SYCK super bright yellow SMD LED online today and enhance your electronic projects with high brightness, low power consumption, and reliable water-clear lens. This compact 3.2x1.6mm LED is perfect for backlighting, indicators, and signaling needs. With RoHS compliance, a moisture sensitivity level of 3, and operating at temperatures from -40°C to +85°C, it’s suitable for diverse applications. Take advantage of fast delivery and ensure your next project benefits from top-quality LED technology.
Buy Kingbright KPTL-3216SYCK now and experience unmatched reliability and performance in LED lighting and signaling applications.
Frequently Asked Questions
Where can I buy KINGBRIGHT KPTL3216SYCK?
You can click on the BUY or RFQ button to purchase KPTL3216SYCK from an authorized KINGBRIGHT distributor.
How do I troubleshoot issues or seek technical support for part KPTL3216SYCK?
You can download the KPTL3216SYCK datasheet or visit the KINGBRIGHT website for support.
Who is the manufacturer of KPTL3216SYCK?
KINGBRIGHT
