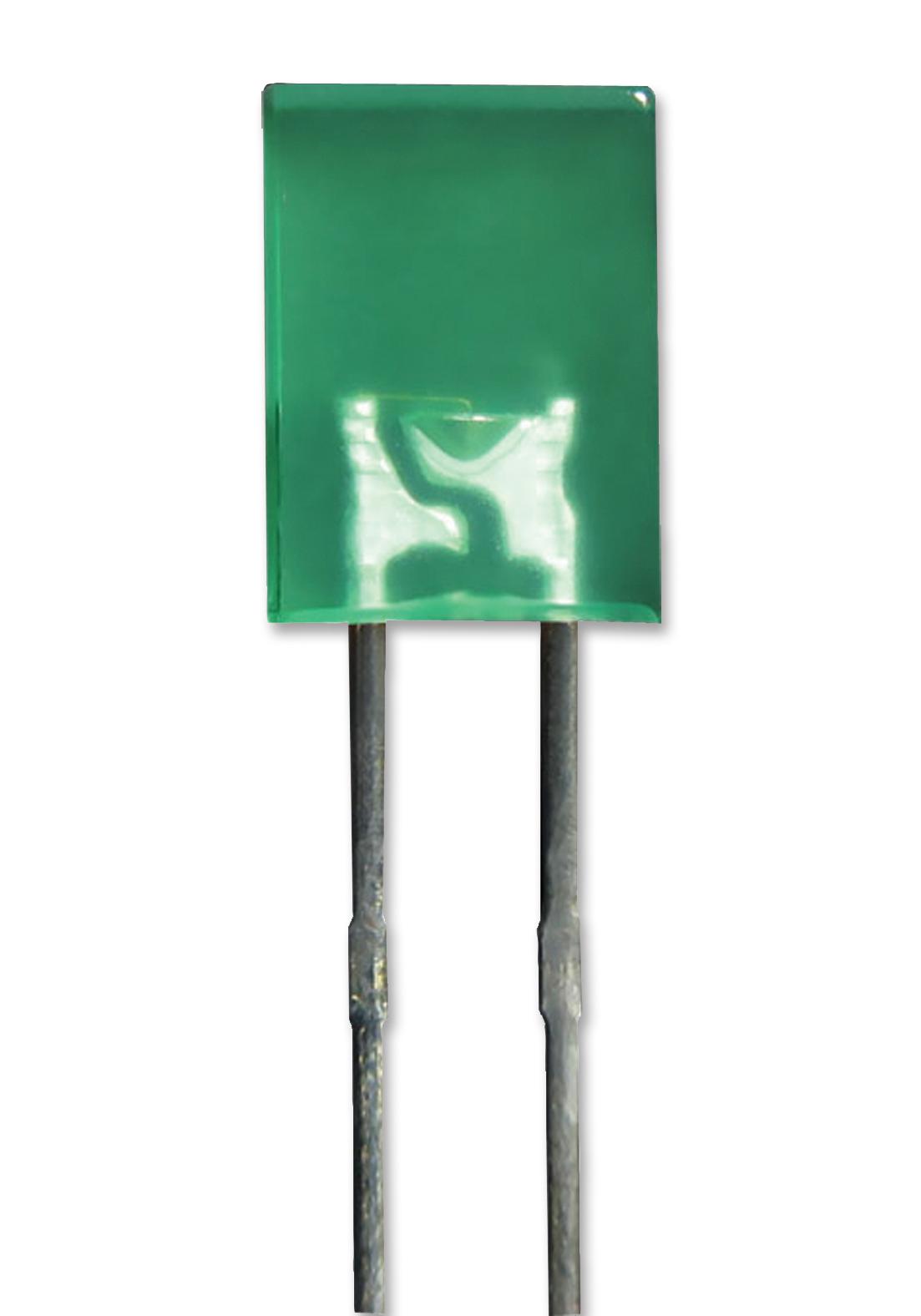

KINGBRIGHT L113GDT Green Rectangular LED
The L-113GDT is a durable 2x5mm green rectangular LED with a diffused lens, featuring low power consumption and excellent light uniformity. Made with gallium phosphide, it offers reliable, long-lasting performance suitable for level indicators, signaling, and LED lighting. This rugged, solid-state device operates within a temperature range of -40°C to +85°C, with a typical wavelength of 565 nm and a forward voltage of 2.2-2.5 V at 20mA. Its high reliability and RoHS compliance make it ideal for various electronic applications requiring bright, efficient green illumination.
KINGBRIGHT L113GDT Green Rectangular LED Specifications:
- Package Dimensions: 3.27 mm x 7 mm (min.) with lead spacing 2.079 mm
- Color: Green, wavelength 565 nm (typ.), dominant wavelength 568 nm
- Lens Type: Diffused
- Peak Wavelength: 565 nm, Spectral Line Half-width: 30 nm
- Forward Voltage: 2.2 - 2.5 V at 20 mA, Reverse Current: 10 μA at 5 V
- Power Dissipation: 62.5 mW
- DC Forward Current: 25 mA, Peak Forward Current: 140 mA
- Operating Temperature Range: -40°C to +85°C
- Soldering Temperature: 260°C for 3 seconds
- Viewing Angle: 110°
Buy the Kingbright Series L113 Green LED: L113GDT
Order Kingbright L113GDT green rectangular LED online today for high-quality illumination solutions. Perfect for level indicators, signaling, and LED lighting, this rugged, long-lasting component offers excellent light uniformity, low power consumption, and reliable performance. Suitable for a wide range of electronic applications, it features a diffused lens, operates efficiently within -40°C to +85°C, and is RoHS compliant. Enhance your designs by purchasing this dependable green LED online and enjoy fast shipping and competitive prices.
Buy Kingbright L113GDT green rectangular LED now and experience unmatched reliability and vibrant illumination for your electronic projects.
Frequently Asked Questions
Where can I buy KINGBRIGHT L113GDT?
You can click on the BUY or RFQ button to purchase L113GDT from an authorized KINGBRIGHT distributor.
How do I troubleshoot issues or seek technical support for part L113GDT?
You can download the L113GDT datasheet or visit the KINGBRIGHT website for support.
Who is the manufacturer of L113GDT?
KINGBRIGHT
