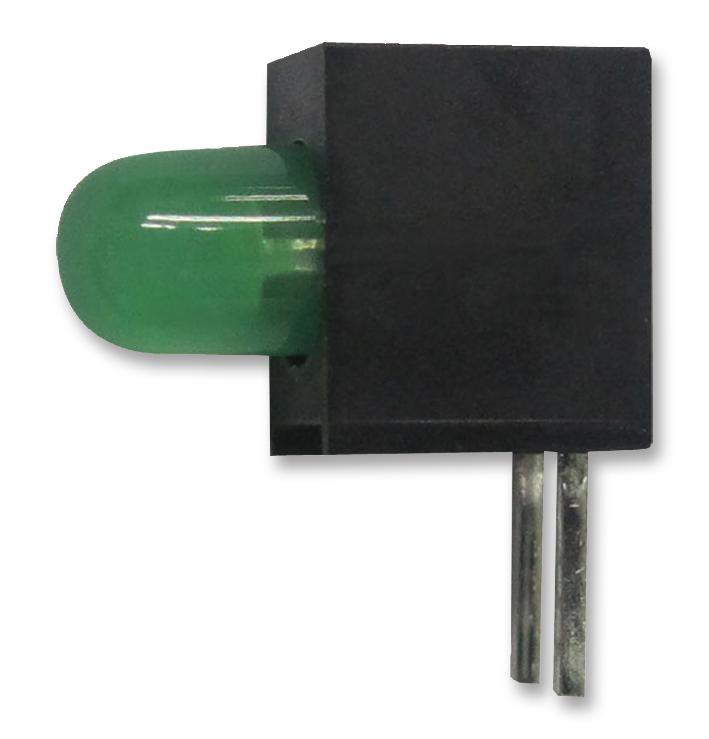

KINGBRIGHT L1384AD1GD Green LED Indicator
The L-1384AD/1GD is a 3.4mm right-angle green LED indicator with a diffused lens, built with Gallium Phosphide for reliable operation. It’s ideal for card edge status indication and features a wide viewing angle, high durability, and UL94V-0 rated nylon housing, ensuring safety and pollution resistance. Suitable for LED lighting and signaling applications, it offers stable luminous intensity at 565 nm, with a forward voltage of 22-25 V at 20mA, and operates efficiently within -40°C to +85°C. Its design emphasizes longevity and compliance with RoHS standards.
KINGBRIGHT L1384AD1GD Green LED Indicator Specifications:
- Size: 3.4mm diameter
- Lens Type: Diffused
- Color: Green (565 nm wavelength)
- Forward Voltage: 22-25 V at 20mA
- Peak Wavelength: 565 nm
- Dominant Wavelength: 568 nm
- Spectral Line Half-width: 30 nm
- Capacitance: 15 pF
- Reverse Current: 10 μA at 5 V
- Power Dissipation: 62.5 mW
- Peak Forward Current: 140 mA
- DC Forward Current: 25 mA
- Operating Temperature: -40°C to +85°C
- Soldering Temperature: 260°C for 3-5 seconds
- Housing Material: Nylon 66 UL94V-0
- RoHS Compliant
- Lead Spacing: Standard, compatible with PCB mounting
- Lifespan: Several years of reliable operation
Buy the Kingbright L-1384AD/1GD – Reliable Green LED Indicator for Industrial Applications
Purchase the Kingbright Green LED Indicator L-1384AD/1GD online now to ensure high-quality, bright green illumination for your industrial signaling and status indication needs. This 3.4mm right-angle LED features a diffused lens for wide viewing angles and reliable performance over years of usage. Its UL94V-0 rated nylon housing ensures safety, and it operates efficiently at 565 nm with a forward voltage of 22-25 V at 20mA. Easy to install, RoHS compliant, and suitable for various lighting applications, order today for prompt delivery and exceptional quality.
Order your Kingbright L-1384AD/1GD series green LED indicator today and enhance your project’s signaling and status indication with dependable LED performance.
Frequently Asked Questions
Where can I buy KINGBRIGHT L1384AD1GD?
You can click on the BUY or RFQ button to purchase L1384AD1GD from an authorized KINGBRIGHT distributor.
How do I troubleshoot issues or seek technical support for part L1384AD1GD?
You can download the L1384AD1GD datasheet or visit the KINGBRIGHT website for support.
Who is the manufacturer of L1384AD1GD?
KINGBRIGHT
