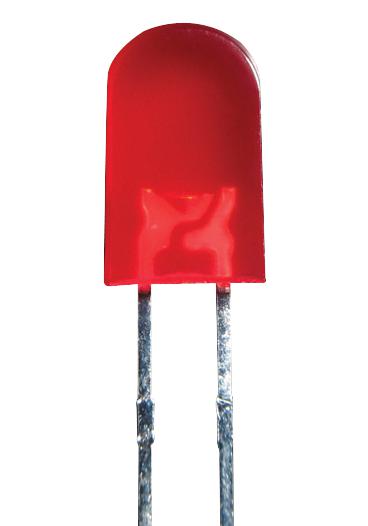

KINGBRIGHT L1503ID High-Efficiency Red LED
The L-1503ID is a 5mm high-efficiency red LED lamp featuring a diffused lens. Made with gallium arsenide phosphide on gallium phosphide, it offers low power consumption and versatile mounting options on PCBs or panels. Housed in a flangeless T-1 3/4 package, it ensures reliability and ruggedness for various LED lighting applications. The device operates at a peak wavelength of 627 nm, forward voltage of 2 to 2.25 V at 20 mA, and has a viewing angle of 60°. Suitable for indicator and illumination uses, it requires proper handling due to its ESD sensitivity.
KINGBRIGHT L1503ID High-Efficiency Red LED Specifications:
- Peak Wavelength: 627 nm at 20mA
- Dominant Wavelength: 617 nm at 20mA
- Luminous Intensity: Min. 12 mcd, Typical 40 mcd at 10mA
- Viewing Angle: 60°
- Forward Voltage: 2 to 2.25 V at 20mA
- Capacitance: 15 pF at Vr=0V;f=1MHz
- Reverse Current: Max. 10 µA at VR=5V
- Power Dissipation: 75 mW
- Peak Forward Current: 160 mA
- DC Forward Current: 30 mA
- Operating/Storage Temperature: -40°C to +85°C
- Lead Solder Temperature: 260°C for 3-5 seconds
- RoHS Compliant
- Package Dimensions: Diameter 8.6 mm, Min. length 25 mm, lead spacing 2.54 mm
- Material: Gallium arsenide phosphide on gallium phosphide
- Package Type: Flangeless T-1 3/4
- Diffused lens for uniform light
- Low power consumption and rugged design for reliable operation
Buy the Buy Kingbright LED Part Number L-1503ID Online
Purchase the Kingbright L1503ID high-efficiency red LED online today and enhance your lighting projects. Featuring a 5mm diffused lens, low power consumption, and a rugged T-1 3/4 package, this LED ensures reliable performance for indicator and illumination applications. Its precise emission at 627 nm, forward voltage of 2-2.25 V at 20 mA, and wide viewing angle make it versatile for various settings. Order now to benefit from quick shipping, competitive pricing, and trusted quality from Kingbright, the leader in LED technology.
Get Kingbright L1503ID today—built for precision with low power consumption and rugged reliability for your LED lighting needs.
Frequently Asked Questions
Where can I buy KINGBRIGHT L1503ID?
You can click on the BUY or RFQ button to purchase L1503ID from an authorized KINGBRIGHT distributor.
How do I troubleshoot issues or seek technical support for part L1503ID?
You can download the L1503ID datasheet or visit the KINGBRIGHT website for support.
Who is the manufacturer of L1503ID?
KINGBRIGHT
