KINGBRIGHT L154A4SUREQBFZGEW Full-color RGB LED lamp

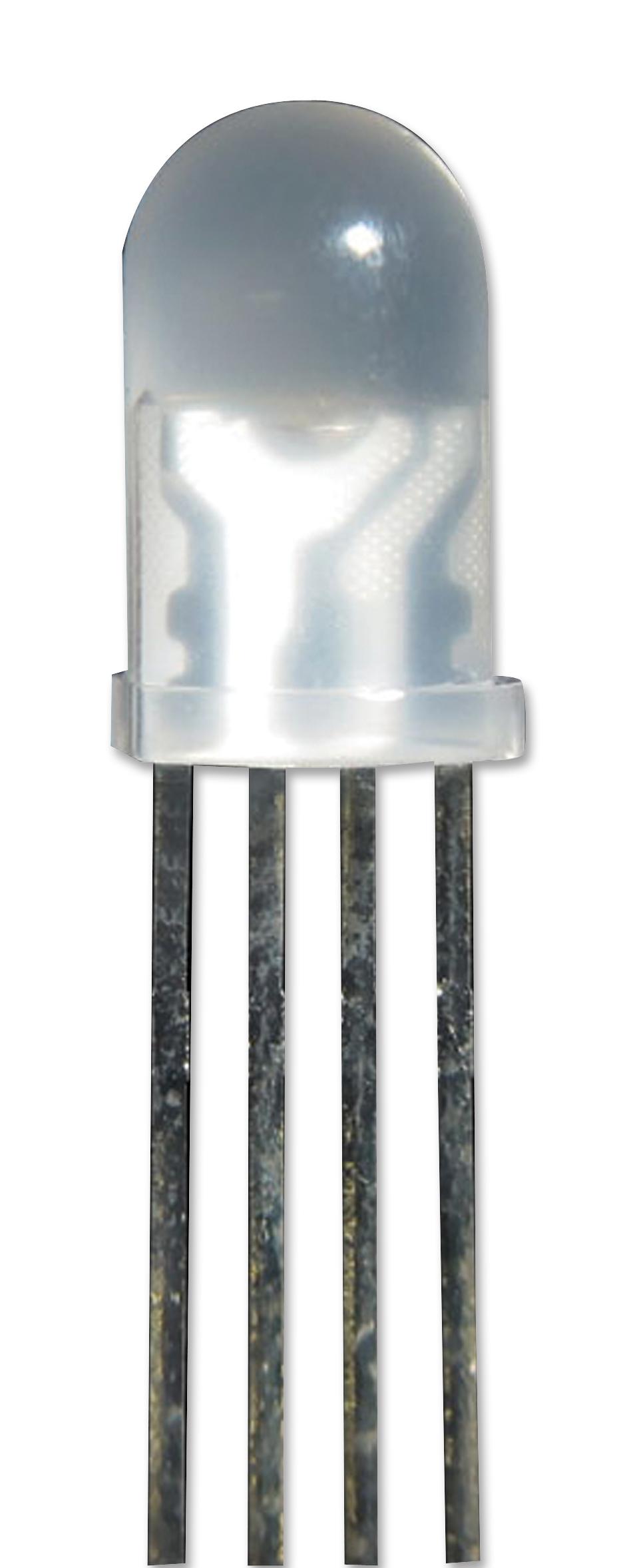

The L-154A4SUREQBFZGEW is a versatile 5mm full-color RGB LED lamp with a white diffused lens, offering uniform light output, low power consumption, and long-lasting solid-state reliability. The Red LED uses AlGaInP on GaAs, while Blue and Green emitters are based on InGaN, with Green on sapphire. Designed for various LED lighting uses, it requires electrostatic discharge precautions during handling, including anti-static wrist straps. Its wide operating temperature range and RoHS compliance make it ideal for robust, reliable applications in industrial and electronic lighting environments. Market demand may extend lead times.
KINGBRIGHT L154A4SUREQBFZGEW Full-color RGB LED lamp Specifications:
- Wavelength: Red 630-645 nm, Blue 460-465 nm, Green 520-525 nm
- Forward Voltage: Red 2.0-3.3 V, Blue 3.3-4 V, Green 3.2-4 V
- Power dissipation: Red 75 mW, Blue 120 mW, Green 120 mW
- DC Forward Current: 30 mA for all colors
- Peak Forward Current: Red 200 mA, Blue 150 mA, Green 100 mA
- Luminous Intensity: Red 1000-1700 mcd, Blue 500-900 mcd, Green 500-900 mcd
- Viewing Angle: Blue 60°, Red and Green unspecified
- Operating Temperature Range: -40°C to +85°C
- Solder Temperature: 260°C for 3-5 seconds
- Electrostatic Discharge Threshold: Red 3000V, Blue 250V, Green 450V
- Lead Pitch: corresponds to the LED's lead spacing
- Package Dimensions: Approximately 8.6 mm x 24.5 mm with lead length details
- RoHS compliant, suitable for industrial applications with adequate ESD precautions
Buy the Kingbright L154A4SUREQBFZGEW – Reliable RGB LED Lamp for Industrial Applications
Purchase the Kingbright SeriesL154A4SUREQBFZGEW RGB LED lamp online today to ensure your lighting projects are equipped with high-quality, reliable LED components. Designed with a white diffused lens, this 5mm LED offers uniform light output, low power consumption, and long operational life. Perfect for industrial, electronic, and illumination applications, the device benefits from RoHS compliance and stringent electrostatic discharge precautions. Secure your supply chain by ordering now and enjoy prompt delivery of this dependable LED product for your critical projects.
Order your Kingbright SeriesL154A4SUREQBFZGEW RGB LED lamp today and give your projects the dependable quality they deserve.
Frequently Asked Questions
Where can I buy KINGBRIGHT L154A4SUREQBFZGEW?
You can click on the BUY or RFQ button to purchase L154A4SUREQBFZGEW from an authorized KINGBRIGHT distributor.
How do I troubleshoot issues or seek technical support for part L154A4SUREQBFZGEW?
You can download the L154A4SUREQBFZGEW datasheet or visit the KINGBRIGHT website for support.
Who is the manufacturer of L154A4SUREQBFZGEW?
KINGBRIGHT
