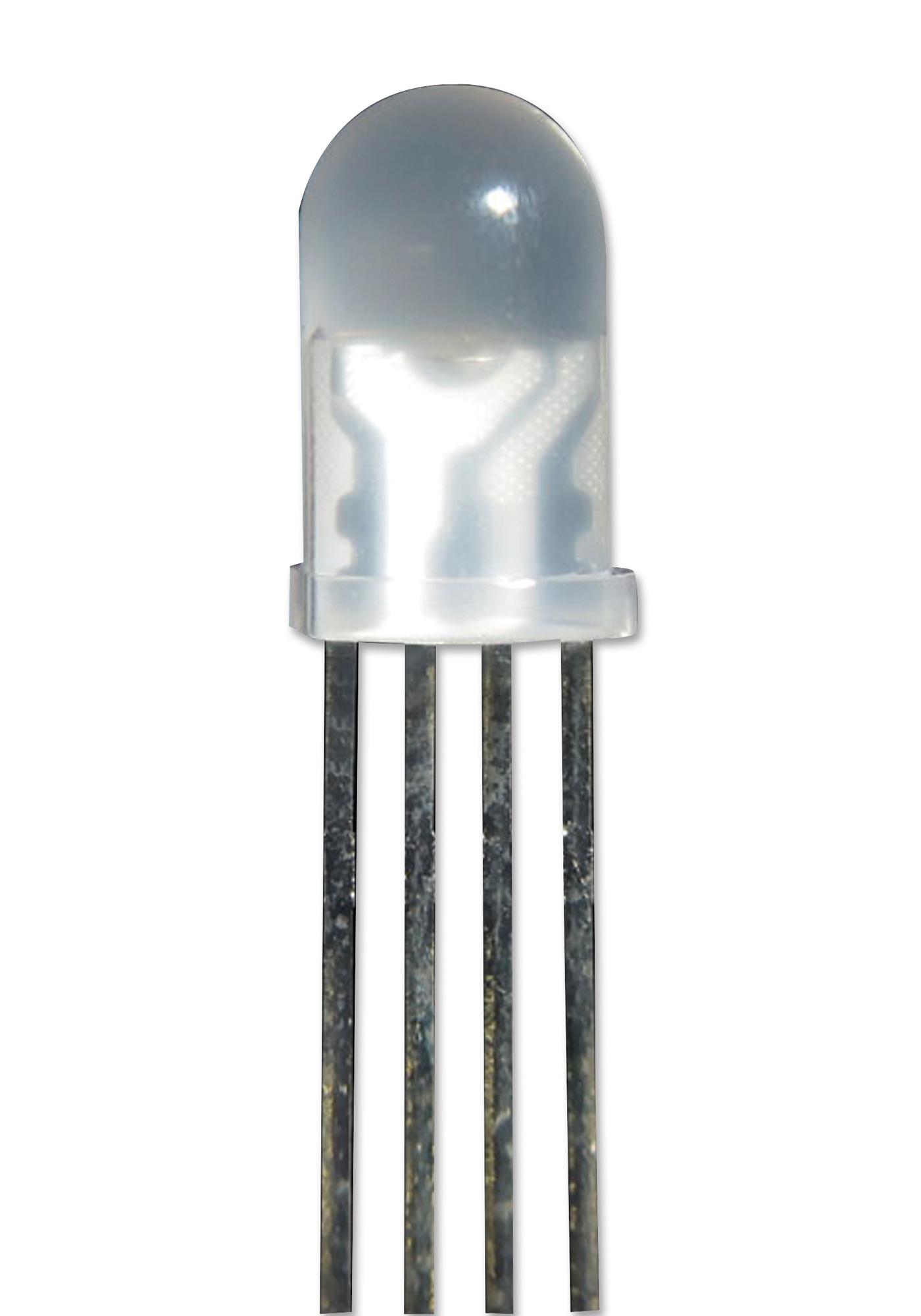

KINGBRIGHT L154A4SURKQBDZGW Full Color RGB LED
The L-154A4SURKQBDZGW is a 5mm full-color RGB LED lamp with a white diffused lens, offering uniform illumination, low power consumption, and reliable solid-state performance. Constructed with AlGaInP on GaAs for red and InGaN on sapphire for green and blue, it is ideal for LED lighting applications. The device is ESD sensitive, requiring proper grounding and handling precautions, such as anti-static wristbands. With specified viewing angles, luminous intensities, and temperature ratings, this versatile LED delivers consistent brightness and durability in various electronic projects.
KINGBRIGHT L154A4SURKQBDZGW Full Color RGB LED Specifications:
- Package Dimensions: 2.5mm lens diameter, lead spacing 2.5mm, height 24.5mm.
- Electrical Characteristics: Forward Voltage - Red 1.95V, Blue 3.3V, Green 3.3V; Max Power Dissipation: 75-120mW; Peak Forward Current: 150-185mA.
- Optical Features: Peak Wavelength - Red 645nm, Blue 460nm, Green 515nm; Viewing Angle: 60°; Luminous Intensity: Red 200, Blue 300, Green 1300 mcd.
- Operating Conditions: Temperature range -40°C to +85°C; Storage Temperature: -40°C to +85°C; Soldering temperature: 260°C for up to 5 seconds.
- Handling: Electrostatic-sensitive; Use grounding and anti-static precautions; Proper lead forming and mounting procedures recommended.
Buy the Buy Kingbright RGB Full Color LED Part Number L154A4SURKQBDZGW Online
Purchase the Kingbright Full Color RGB LED Lamp online today for reliable and vibrant LED lighting solutions. This 5mm LED features a diffused lens for uniform light, low power consumption, and long-lasting performance. Perfect for displays, lighting, and indicator applications, it offers excellent brightness with a wide viewing angle and is designed for easy mounting with precise lead spacing. Take advantage of our fast shipping and secure checkout to get this versatile LED delivered directly to your workspace, ensuring your projects stay on schedule.
Order your Kingbright SeriesL154A4SURKQBDZGW today and enhance your projects with high-quality, durable RGB LED illumination solutions.
Frequently Asked Questions
Where can I buy KINGBRIGHT L154A4SURKQBDZGW?
You can click on the BUY or RFQ button to purchase L154A4SURKQBDZGW from an authorized KINGBRIGHT distributor.
How do I troubleshoot issues or seek technical support for part L154A4SURKQBDZGW?
You can download the L154A4SURKQBDZGW datasheet or visit the KINGBRIGHT website for support.
Who is the manufacturer of L154A4SURKQBDZGW?
KINGBRIGHT
