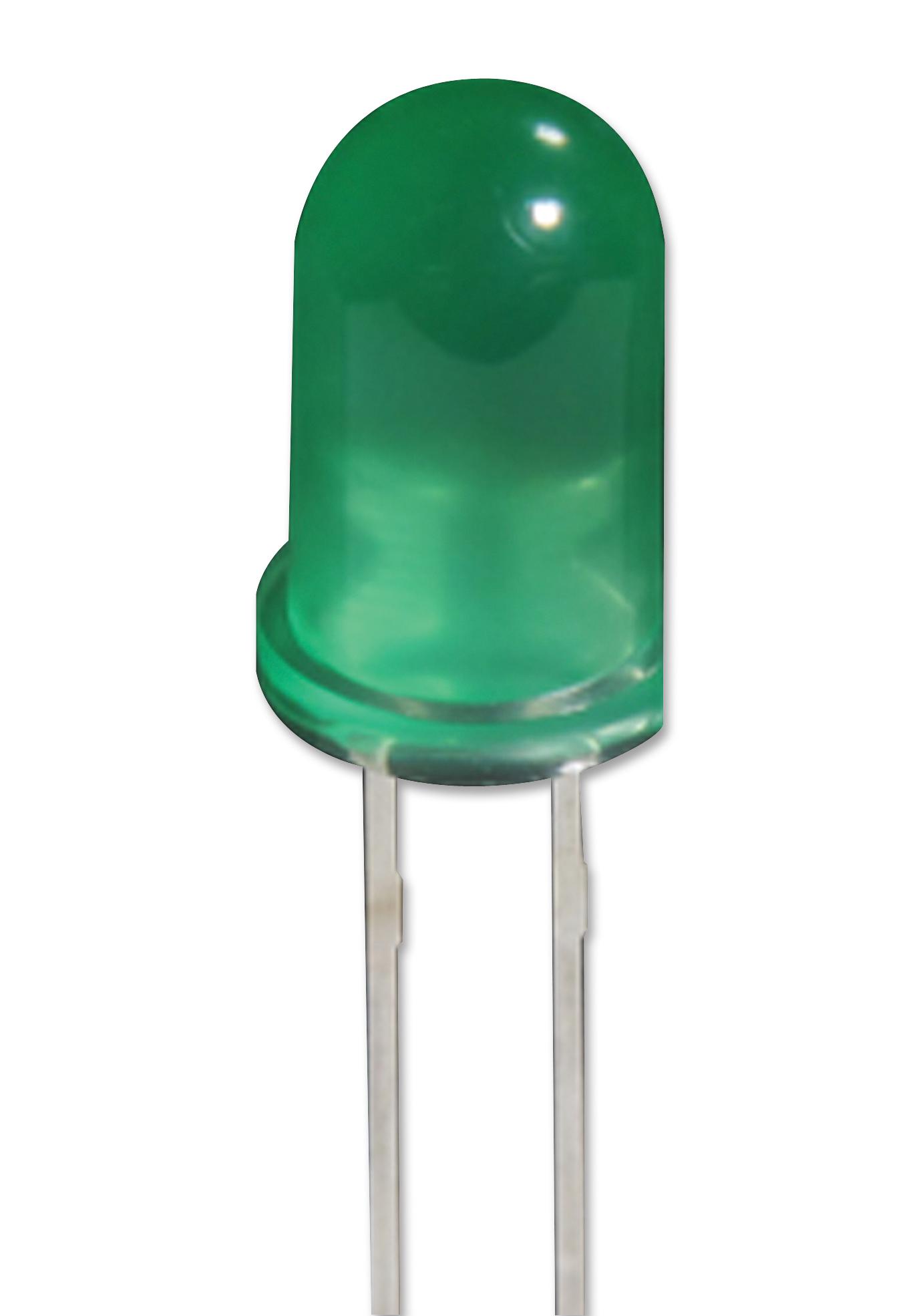

KINGBRIGHT L57GGD LED Lamp
The L-57GGD is a 5mm green LED lamp with a diffused lens, crafted from gallium phosphide for long-lasting, energy-efficient illumination. It provides low power consumption, solid-state reliability, and is RoHS compliant. Featuring peak wavelength at 565 nm and a forward voltage of 22-25 V at 20mA, this LED is ideal for indicator lights and display applications. Its compact size of 8.6mm length and 25mm minimum lead spacing makes installation straightforward in various electronic assemblies. Suitable for environments from -40°C to +85°C with a peak power dissipation of 62.5 mW. Handling precautions include ESD safety measures.
KINGBRIGHT L57GGD LED Lamp Specifications:
- Physical Dimensions: Length 8.6mm, lead spacing 25mm (minimum)
- Lens Type: Diffused
- Wavelength: Peak 565 nm, Dominant 568 nm, spectral line half-width 30 nm
- Electrical: Forward Voltage 22-25V at 20mA, Peak Forward Current 140mA, Power dissipation 62.5mW
- Operating Temperature: -40°C to +85°C, Storage Temperature: -40°C to +85°C
- Material: Gallium phosphide (GaP), RoHS compliant
- Soldering: Max 260°C for 3-5 seconds, recommended wave soldering profile included
- Application: Indicator lights, backlighting, signage
- Certifications: RoHS compliant
- Packaging: 500 pcs per bag, labels with part number L57GGD
- Additional notes: Handle with ESD precautions, lead forming required, avoid stress during mounting
Buy the Kingbright Series LED Lamp: L57GGD
Purchase the Kingbright LED Lamp L57GGD online and ensure your projects benefit from reliable, energy-efficient lighting. This 5mm green LED with a diffused lens delivers long life, low power consumption, and robust performance ideal for indicator and display applications. Easy to install with minimal lead forming, and compliant with RoHS standards, it withstands operating temperatures from -40°C to +85°C. Order now to get fast delivery and quality assurance for your electronic needs, whether for industrial use or creative projects.
Order your Kingbright Series LED Lamp L57GGD today and give your electronic projects the dependable, energy-efficient illumination they need.
Frequently Asked Questions
Where can I buy KINGBRIGHT L57GGD?
You can click on the BUY or RFQ button to purchase L57GGD from an authorized KINGBRIGHT distributor.
How do I troubleshoot issues or seek technical support for part L57GGD?
You can download the L57GGD datasheet or visit the KINGBRIGHT website for support.
Who is the manufacturer of L57GGD?
KINGBRIGHT
