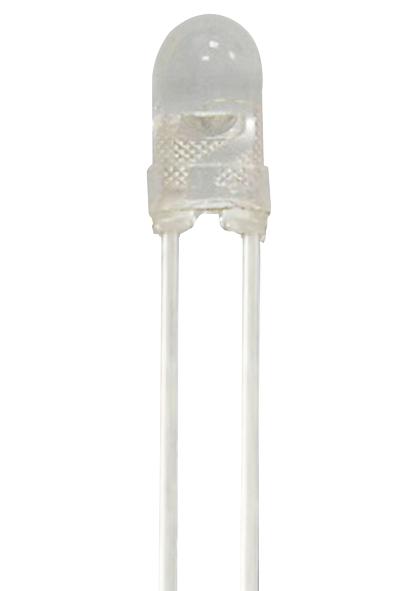

KINGBRIGHT L7104ZGCG Green LED
The LED with part number L7104ZGCG is a 3mm green solid-state LED lamp featuring a water-clear lens and round shape. Made with InGaN technology, it's ideal for LED lighting applications. It offers low power consumption, durability, and long operational life. Designed with general-purpose leads, this through-hole component is suitable for reliable display and indicator solutions. Static electricity and surge damage can occur, so handling precautions like wrist straps or anti-static gloves are essential. RoHS compliant, it operates from -40°C to +85°C and is built to withstand various mounting and soldering processes, ensuring consistent performance in diverse environments.
KINGBRIGHT L7104ZGCG Green LED Specifications:
- Diameter: 3mm
- Color: Green (InGaN)
- Lens Type: Water Clear
- Peak Wavelength: 520 nm
- Dominant Wavelength: 525 nm
- Spectral Line Half-width: 35 nm
- Forward Voltage: 3.2 V at 20mA
- Reverse Current: 50 µA at 5V
- Peak Wavelength: 520 nm
- Luminous Intensity: 8000 to 14000 mcd at 20mA
- Power Dissipation: 120 mW
- DC Forward Current: 30 mA
- Peak Forward Current: 100 mA
- Operating/Storage Temperature: -40°C to +85°C
- Lead Solder Temperature: 260°C for 3-5 seconds
- RoHS compliant
- Lead pitch: 2.54 mm
- Soldering Profile: Peak temperature 245~260°C, max 260°C
Buy the Buy Kingbright Green LED Part Number L7104ZGCG Online
Purchase the Kingbright Green LED L7104ZGCG online today. This 3mm water-clear LED is crafted with InGaN technology for strong luminosity and durability. It features low power consumption, reliable through-hole mounting, and excellent performance across a wide temperature range. Perfect for indicator lights, display panels, and general illumination, this RoHS-compliant LED ensures consistent quality. Convenient online ordering guarantees quick delivery, enabling you to incorporate a dependable and bright green LED into your projects with ease and confidence.
Get Kingbright L7104ZGCG today—designed for efficiency, reliability, and long-lasting illumination in electronic lighting and indicator applications.
Frequently Asked Questions
Where can I buy KINGBRIGHT L7104ZGCG?
You can click on the BUY or RFQ button to purchase L7104ZGCG from an authorized KINGBRIGHT distributor.
How do I troubleshoot issues or seek technical support for part L7104ZGCG?
You can download the L7104ZGCG datasheet or visit the KINGBRIGHT website for support.
Who is the manufacturer of L7104ZGCG?
KINGBRIGHT
