KINGBRIGHT L7104ZGCK Green LED

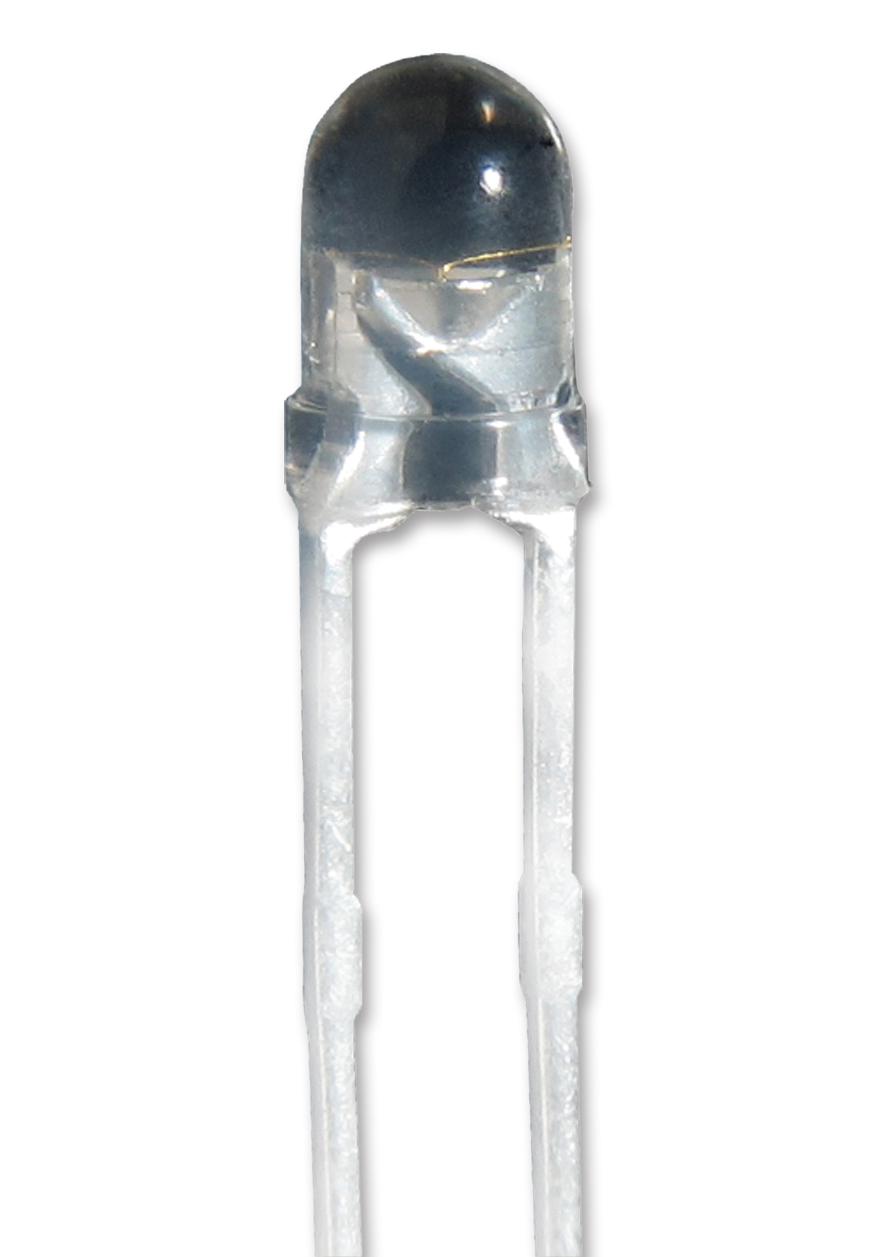

The L-7104ZGCK is a 3mm super bright green LED with a water-clear lens, using InGaN on sapphire technology. It features low power consumption, a popular package, standard leads, and provides reliable, long-lasting illumination suitable for various applications such as LED lighting and industrial use. Designed for durability and general purpose use, it is ideal for electronic projects and industrial lighting solutions. The LED offers high luminous intensity, spectral purity, and robust mechanical construction, making it a dependable choice for diverse illumination needs in demanding environments.
KINGBRIGHT L7104ZGCK Green LED Specifications:
- Shape: T-1 (3mm) round package
- Lens Type: Water clear
- Color: Green (InGaN)
- Luminous Intensity: 8000 mcd (typical), 5000 mcd (minimum) at 20 mA
- Peak Wavelength: 515 nm
- Dominant Wavelength: 525 nm
- Spectral Line Half-width: 35 nm
- Forward Voltage: 3.3 V at 20 mA
- Reverse Current: 50 µA at 5 V
- Power Dissipation: 102.5 mW
- DC Forward Current: 25 mA
- Peak Forward Current: 150 mA (1/10 duty cycle)
- Operating/Storage Temperature: -40°C to +85°C
- Lead Solder Temperature: 260°C for 3-5 seconds
- Angle of View: 34°
- Physical Dimensions: Diameter 3mm, lead pitch standard, lead length approximately 4.6 mm
- RoHS compliant
- Electrical and optical characteristics traceable and tested to national standards
Buy the Kingbright L7104ZGCK – Reliable Green LED for Industrial Applications
Purchase the Kingbright Green LED L7104ZGCK online today and enhance your electronic or industrial lighting projects with a high-brightness, durable, and energy-efficient solution. This 3mm super bright LED with water-clear lens offers excellent luminous intensity, reliable long life, and high-quality construction. Perfect for a wide range of applications, from indicator lights to industrial illumination, ensure your projects meet demanding performance standards. Order now to benefit from fast shipping and trusted quality directly from authorized distributors.
Buy Kingbright L7104ZGCK now and experience unmatched reliability and performance in industrial lighting and electronic projects.
Frequently Asked Questions
Where can I buy KINGBRIGHT L7104ZGCK?
You can click on the BUY or RFQ button to purchase L7104ZGCK from an authorized KINGBRIGHT distributor.
How do I troubleshoot issues or seek technical support for part L7104ZGCK?
You can download the L7104ZGCK datasheet or visit the KINGBRIGHT website for support.
Who is the manufacturer of L7104ZGCK?
KINGBRIGHT
