KINGBRIGHT L934LGD Green LED

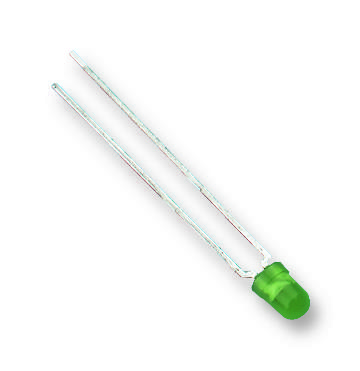

The L-934LGD from Kingbright is a reliable green LED in a T-1 (3mm) package, made of gallium phosphide. Featuring a diffused lens with a 60° viewing angle, it emits at a dominant wavelength of 568nm with a peak at 565nm. Operating at 2mA, it has a forward voltage of 2.2V and a luminous intensity of 2mcd. Suitable for LED lighting, portable devices, industrial, and consumer electronics, this rugged through-hole LED offers long-lasting solid-state reliability and is widely used in various electronic projects and applications.
KINGBRIGHT L934LGD Green LED Specifications:
- Package Size: T-1 (3mm)
- Luminous Intensity: 2mcd at 2mA
- Wavelength: Dominant 568nm, Peak 565nm
- Viewing Angle: 60°
- Forward Voltage: 2.2V at 20mA
- Maximum Power Dissipation: 105 mW
- DC Forward Current: 25 mA
- Peak Forward Current: 140 mA
- Reverse Voltage: 5 V
- Operating/Storage Temperature: -40°C to +85°C
- Material: Gallium Phosphide
- Lens Type: Diffused
- Lead Solder Temperature: 260°C for 3-5 seconds
- Compliance: RoHS
Buy the Buy Kingbright LED Part Number L-934LGD Online
Get the Kingbright L-934LGD green LED now online to ensure your projects benefit from high quality, long-lasting illumination. Crafted with gallium phosphide, this 3mm through-hole LED provides bright, reliable light with a wide 60° viewing angle. Its low power consumption, rugged design, and excellent optical performance make it ideal for industrial, electronic, and portable applications. Order easily online today to ensure fast delivery and secure your supply of this essential lighting component for your next project.
Order your Kingbright SeriesL-934LGD green LED today and enhance your lighting projects with reliable, energy-efficient illumination.
Frequently Asked Questions
Where can I buy KINGBRIGHT L934LGD?
You can click on the BUY or RFQ button to purchase L934LGD from an authorized KINGBRIGHT distributor.
How do I troubleshoot issues or seek technical support for part L934LGD?
You can download the L934LGD datasheet or visit the KINGBRIGHT website for support.
Who is the manufacturer of L934LGD?
KINGBRIGHT
