KINGBRIGHT L934ND orange LED
The L-934ND from Kingbright is a through-hole, round-shaped orange LED featuring a pure orange color. It is made of gallium arsenide phosphide on gallium phosphide, emitting a bright orange light. This LED offers low power consumption, long lifespan, and reliable solid-state performance. It has a standard T-1 (3mm) size with a viewing angle of 40°, luminous intensity of 20mcd at 10mA, and a forward voltage of 2.05V at 20mA. The device's dominant wavelength is 602nm, with a peak wavelength of 607nm, and it features an orange diffused lens. Common applications include LED lighting, portable electronics, industrial equipment, and consumer electronic devices. Please note that market demand may cause delivery delays, and the product is exempt from discounts.
KINGBRIGHT L934ND orange LED Specifications:
- Package Size: T-1 (3mm) round
- Lens Type: Diffused orange
- Viewing Angle: 40°
- Luminous Intensity: 20 mcd at 10mA
- Peak Wavelength: 607 nm
- Dominant Wavelength: 602 nm
- Spectral Line Half-width: 35 nm
- Forward Voltage: 2.05 V at 20mA
- Reverse Current: 10 μA at 5V
- Power Dissipation: 62.5 mW
- DC Forward Current: 25 mA
- Peak Forward Current: 145 mA
- Operating Temperature: -40°C to +85°C
- Storage Temperature: -40°C to +85°C
- Lead Solder Temperature: 260°C for 3 seconds
- Certifications: RoHS compliant
- Physical Dimensions: Length 4.6mm (0.181 inch), lead spacing 1.5mm (0.059 inch), diameter 3mm
- Material: Gallium arsenide phosphide on gallium phosphide
- Application Areas: LED lighting, portable electronics, industrial equipment, consumer electronics

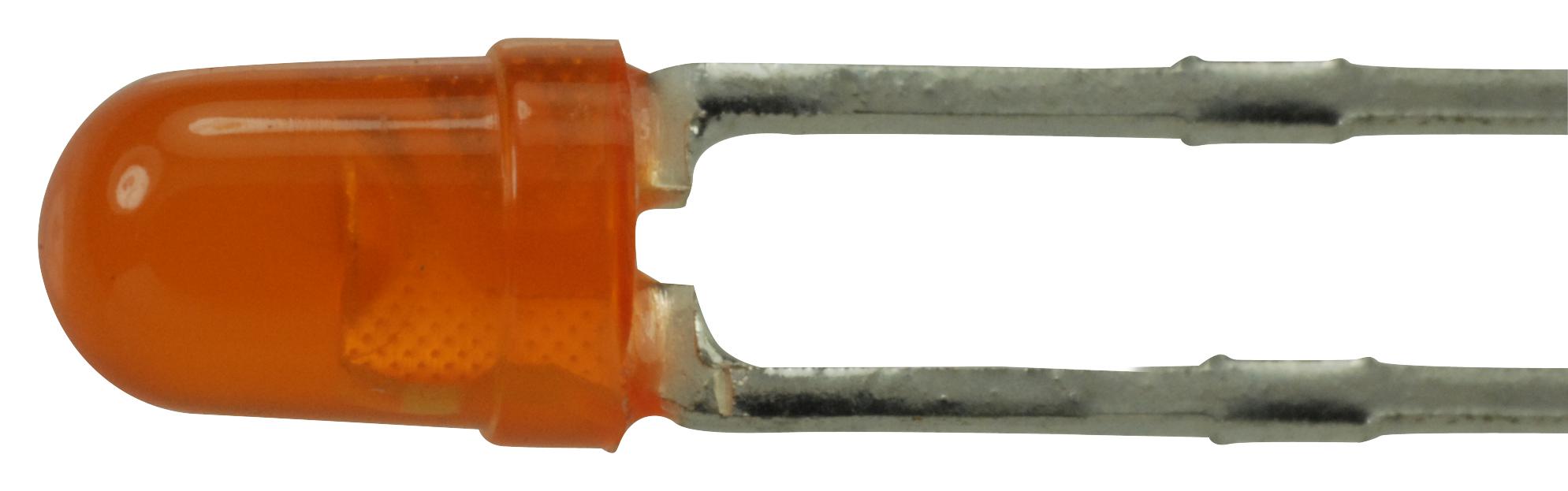

Buy the Kingbright L-934ND – Reliable Orange LED for Industrial Applications
Order the Kingbright L-934ND orange LED online today and enjoy fast shipping, proven reliability, and excellent performance. Ideal for industrial, consumer, and electronic projects, this 3mm diffused LED offers a 40° viewing angle, 20mcd luminous intensity at 10mA, and a forward voltage of 2.05V. Its durable design and RoHS compliance make it suitable for various applications including LED lighting, portable devices, and industrial equipment. Secure your supply now and ensure top-quality illumination in your electronic designs.
Buy Kingbright L-934ND now and experience unmatched reliability and performance in LED lighting and electronic indications.
Frequently Asked Questions
Where can I buy KINGBRIGHT L934ND?
You can click on the BUY or RFQ button to purchase L934ND from an authorized KINGBRIGHT distributor.
How do I troubleshoot issues or seek technical support for part L934ND?
You can download the L934ND datasheet or visit the KINGBRIGHT website for support.
Who is the manufacturer of L934ND?
KINGBRIGHT
