KINGBRIGHT L937EGW Bi-color indicator LED
The Kingbright L-937EGW is a high-efficiency T-1 (3mm) bi-color LED with red and green illumination, ideal for indicator and display applications. Made with gallium arsenide phosphide on gallium phosphide, it features uniform light output, low power consumption, solid-state reliability, and a long lifespan. The LED includes a white diffused lens, a 60° viewing angle, and operates at approximately 2V for red and 2.2V for green at 20mA. It offers robust performance suited for industrial, consumer, and portable lighting, with compliant RoHS construction ensuring eco-friendly operation.
KINGBRIGHT L937EGW Bi-color indicator LED Specifications:
- Package Dimensions: 4.6mm diameter, 0.181 inches +/- 0.01 inches thickness
- Lens Type: White Diffused
- Viewing Angle: 60°
- Color: Red (dominant wavelength 617nm, peak 627nm, 10mcd) and Green (dominant wavelength 568nm, peak 565nm, 14mcd)
- Forward Voltage: approximately 2V for red and 2.2V for green at 20mA
- Forward Current: 20mA (max 30mA for red, 25mA for green)
- Power Dissipation: 75mW for red, 62.5mW for green
- Operating Temperature Range: -40°C to +85°C
- Lead Pitch: matches PCB mounting holes
- RoHS compliant, solid-state reliability, long life
- Soldering Profiles: Peak temperature 255°C, max 3 sec, with preheating to 105°C or less

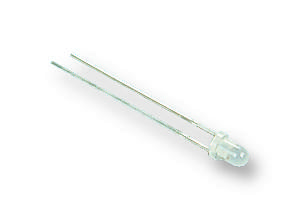

Buy the Buy Kingbright L-937EGW Bi-Color Indicator Part Number L-937EGW Online
Order the Kingbright L-937EGW bi-color LED online today to ensure high efficiency, long lifespan, and excellent performance in indicator, lighting, and display solutions. This T-1 (3mm) device features red and green colors, a 60° viewing angle, and operates at 2V and 2.2V respectively, with a maximum current of 20mA. Ideal for industrial, consumer, and portable applications. Enjoy quick delivery, quality assurance, and RoHS compliance when purchasing this versatile, reliable LED from authorized sources.
Get Kingbright L-937EGW today—built for reliable indicator and display performance with low power consumption and long-lasting durability.
Frequently Asked Questions
Where can I buy KINGBRIGHT L937EGW?
You can click on the BUY or RFQ button to purchase L937EGW from an authorized KINGBRIGHT distributor.
How do I troubleshoot issues or seek technical support for part L937EGW?
You can download the L937EGW datasheet or visit the KINGBRIGHT website for support.
Who is the manufacturer of L937EGW?
KINGBRIGHT
