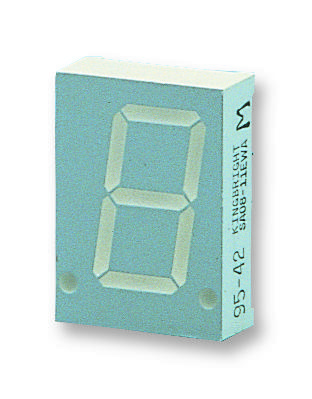

KINGBRIGHT SA0811EWA Numeric Display
The SA08-11EWA is a 20.32mm (0.8 inch) single-digit numeric display featuring a white diffused lens. It uses a high-efficiency red gallium arsenide phosphide on gallium phosphide LED, offering excellent brightness and character appearance. Designed for low current operation, it is mechanically rugged and easy to mount on PC boards or sockets. The display has a grey face with white segments, a common anode configuration, and right-hand decimal point. Suitable for industrial, imaging, video, vision, clock, and timing applications. Note: Due to high market demand, lead times may be extended, and delivery dates can fluctuate. The product is not eligible for discounts.
KINGBRIGHT SA0811EWA Numeric Display Specifications:
- Digit Height: 20.32 mm (0.8 inches)
- Lens Type: White diffused
- Luminous Intensity: 3600 to 8000 μcd at 10mA
- Wavelength: Peak 627 nm, Dominant 625 nm
- Spectral Line Half-width: 45 nm
- Forward Voltage: 2.0 V at 20mA
- Reverse Current: 10 μA at 5V
- Power Dissipation: 75 mW
- DC Forward Current: 30 mA
- Peak Forward Current: 160 mA
- Reverse Voltage: 5 V
- Operating Temperature: -40°C to +85°C
- Soldering Temperature: 260°C for 3-5 seconds
- Size: 20mm x 11mm
- Mounting: Through hole, easy to mount on PC boards
- Compliance: RoHS
- Application: Industrial equipment, clocks, timing systems, video and imaging devices
Buy the Kingbright SA0811EWA – Reliable Numeric Display for Industrial Applications
Order the Kingbright SA08-11EWA numeric display online now and benefit from high efficiency red LEDs with bright, clear characters. Designed for low current operation, it features a rugged and compact build suitable for industrial clocks, timers, and video equipment. Easy to mount on PC boards or sockets, ensuring quick installation. This reliable 20mm digit display is RoHS compliant and ideal for applications demanding durability and precision. Purchase today for fast delivery and superior quality in your electronic projects.
Get Kingbright SA0811EWA today—built for precision, high brightness, and long-lasting durability in industrial and timing applications.
Frequently Asked Questions
Where can I buy KINGBRIGHT SA0811EWA?
You can click on the BUY or RFQ button to purchase SA0811EWA from an authorized KINGBRIGHT distributor.
How do I troubleshoot issues or seek technical support for part SA0811EWA?
You can download the SA0811EWA datasheet or visit the KINGBRIGHT website for support.
Who is the manufacturer of SA0811EWA?
KINGBRIGHT
