KINGBRIGHT SA1021CGKWA Numeric Display

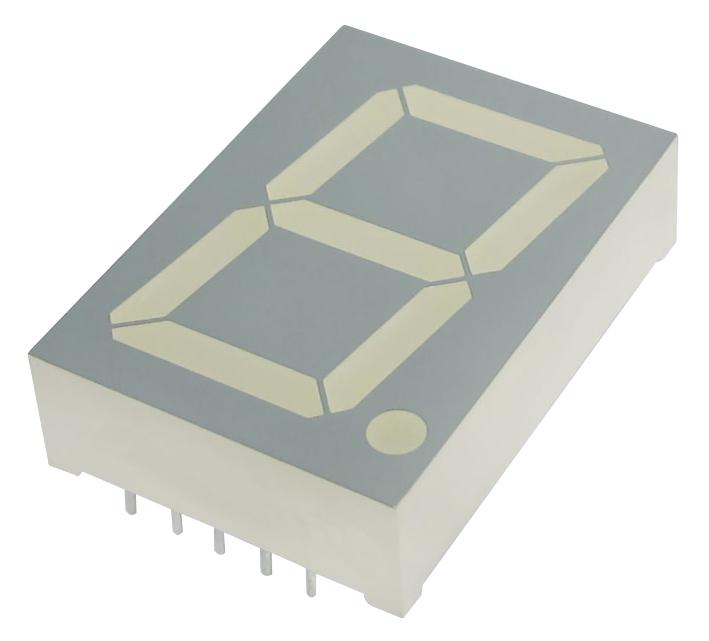

The SA10-21CGKWA is a 25.4mm single-digit numeric display featuring a white diffuse lens. It uses a green AlGaInP light-emitting diode on a GaAs substrate, offering high brightness and excellent character clarity. The display operates at low current, ensuring energy efficiency, and is designed for easy mounting on PC boards or sockets. It is mechanically robust with a grey face and white segments, and features a common anode configuration with a right-hand decimal point. Suitable for industrial, clock and timing, imaging, video, and vision applications.
KINGBRIGHT SA1021CGKWA Numeric Display Specifications:
- Digit height: 25.4mm (1.0 inch)
- Color: Green
- Lens Type: Diffused
- Operating Current: 20mA typical
- Peak Wavelength: 574 nm
- Forward Voltage: 4.2V to 5.0V at 20mA
- Reverse Current: 10μA
- Power Dissipation: 150mW
- Maximum Forward Current: 30mA
- Peak Forward Current: 150mA at 1/10 duty cycle
- Reverse Voltage: 5V
- Operating Temperature: -40°C to +85°C
- Lead Solder Temperature: 260°C for 3-5 seconds
- Package: 20 pcs per tube, 800 pcs per box
- RoHS compliant
Buy the Kingbright SA10-21CGKWA – Reliable Green Numeric Display for Industrial Applications
Purchase the Kingbright SA10-21CGKWA online today—this high-brightness green numeric display features a 25.4mm digit height, diffuse lens, and easy mounting for industrial clocks, timers, and visual signaling. Its energy-efficient operation ensures low current consumption, while robust construction provides mechanical durability suitable for demanding environments. Ideal for automation and control panels, this display offers excellent character clarity, a common anode configuration, and meets RoHS standards. Order now for reliable performance in your engineering projects.
Get Kingbright SA10-21CGKWA today—built for precision, high brightness, and long-lasting durability in industrial and engineering displays.
