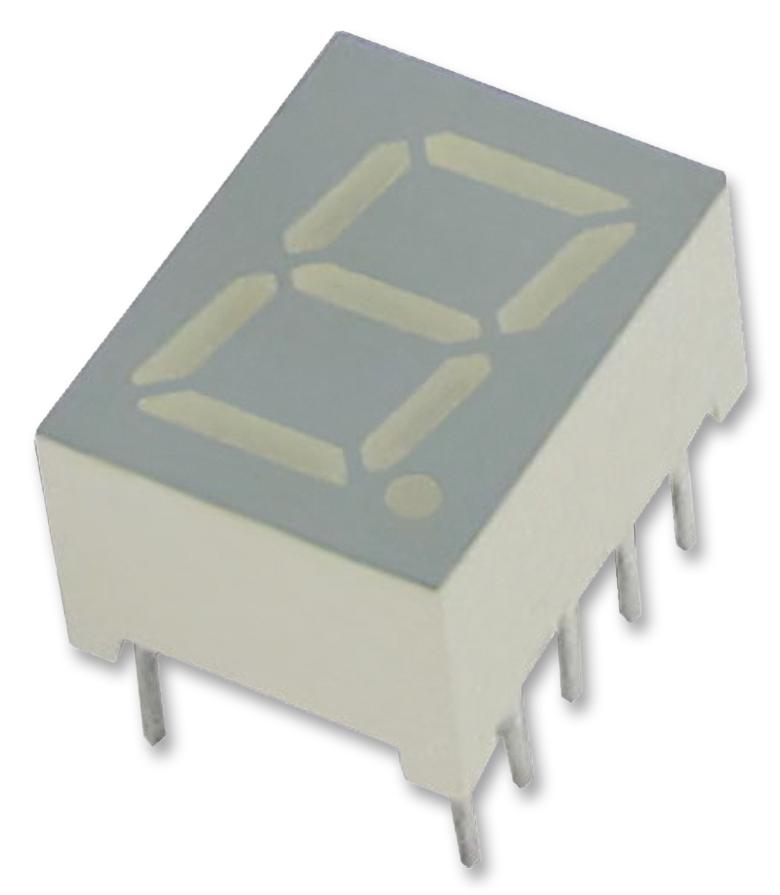

KINGBRIGHT SA3911EWA Numeric Display
The SA39-11EWA is a 0.39-inch high single-digit numeric display featuring a white diffused lens. It uses a high-efficiency red LED based on gallium arsenide phosphide on gallium phosphide, emitting orange light. This display operates with low current, offers excellent character appearance, and is easy to mount on printed circuit boards or sockets. It is mechanically rugged, with a gray face and white segments, and has a common anode configuration with a right-hand decimal point. Suitable for industrial, imaging, video, and clock/timing applications. Note that market demand has caused lead times to extend, and delivery dates may fluctuate. The product is not eligible for discounts.
KINGBRIGHT SA3911EWA Numeric Display Specifications:
- Digit Height: 0.39 inches
- Lens Type: White Diffused
- Emitter Color: High Efficiency Red (Gallium Arsenide Phosphide on Gallium Phosphide)
- Wavelength: 627 nm typical
- Forward Voltage: 2.0 V at 20 mA
- Peak Wavelength: 625 nm
- Spectral Line Half-width: 45 nm
- Maximum Power Dissipation: 75 mW
- Maximum Forward Current: 30 mA
- Peak Forward Current: 160 mA
- Reverse Voltage: 5 V
- Operating Temperature: -40°C to +85°C
- Dimensions: 9.9mm (0.39 inch) digit height; other dimensions detailed in datasheet
- Mounting Method: Through hole, compatible with PCBs
- Soldering Profile: Max 260°C for 3-5 seconds, wave soldering profile recommended
Buy the Kingbright SA39-11EWA – Reliable Numeric Display for Industrial Applications
Order the Kingbright SA39-11EWA numeric display online today and enjoy top-quality, low-current operation with excellent character appearance. Its rugged design allows for easy mounting on PCBs or sockets, making it ideal for industrial, video, clock, and timing applications. With a 0.39-inch digit height and high-efficiency red LED, it ensures clear visibility and reliable performance in demanding environments. Take advantage of fast delivery and secure your supply of this high-performance display for your project needs.
Buy Kingbright SA39-11EWA now and experience unmatched reliability, high efficiency red LED display, perfect for industrial, clock, and timing solutions.
Frequently Asked Questions
Where can I buy KINGBRIGHT SA3911EWA?
You can click on the BUY or RFQ button to purchase SA3911EWA from an authorized KINGBRIGHT distributor.
How do I troubleshoot issues or seek technical support for part SA3911EWA?
You can download the SA3911EWA datasheet or visit the KINGBRIGHT website for support.
Who is the manufacturer of SA3911EWA?
KINGBRIGHT
